Auto Headlight Beam Leveler System Control Module Connector End View

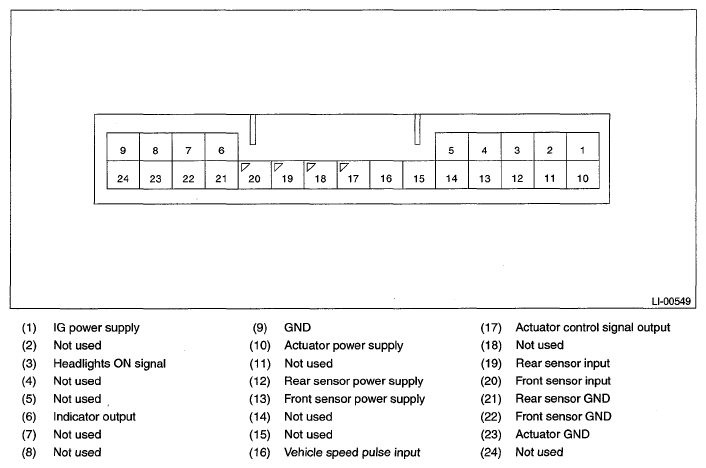

Fig 1: Auto Headlight Beam Leveler System Control Module Connector End View
G05957691Courtesy of SUBARU OF AMERICA, INC.
