Yaw Rate & Lateral G Sensor

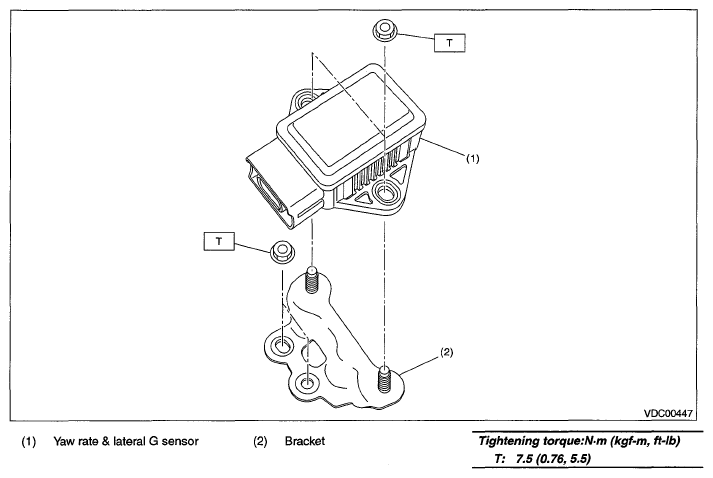

Fig 1: Yaw Rate & Lateral G Sensor And Bracket With Torque Specifications
G05957056Courtesy of SUBARU OF AMERICA, INC.
