Conditions For VDC Sequence Control

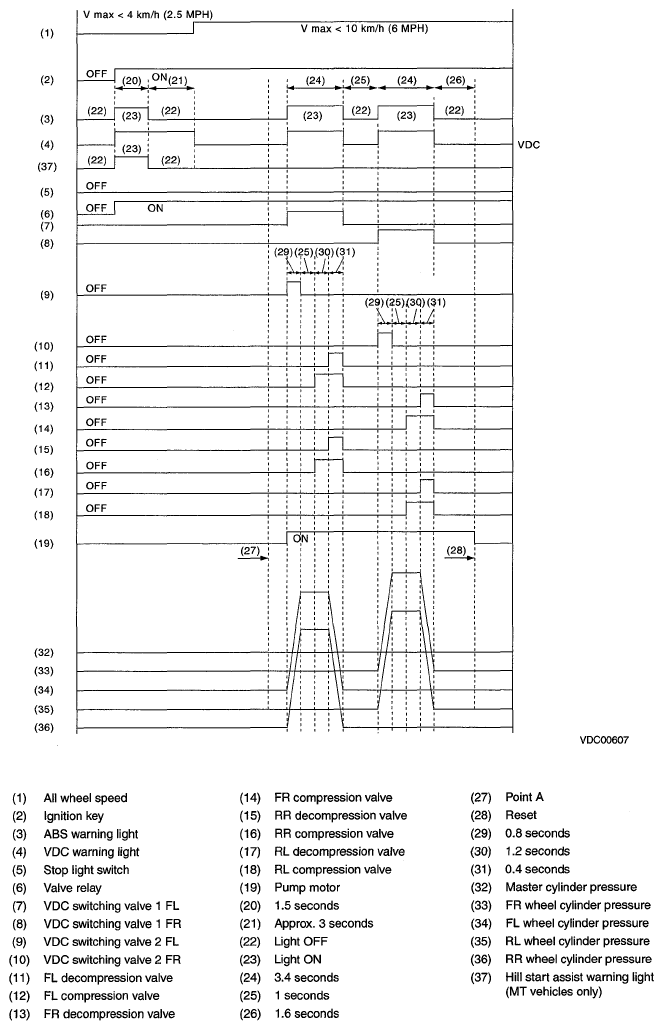

Fig 1: VDC Sequence Control Chart
G05957075Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
