Legacy F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Pump
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

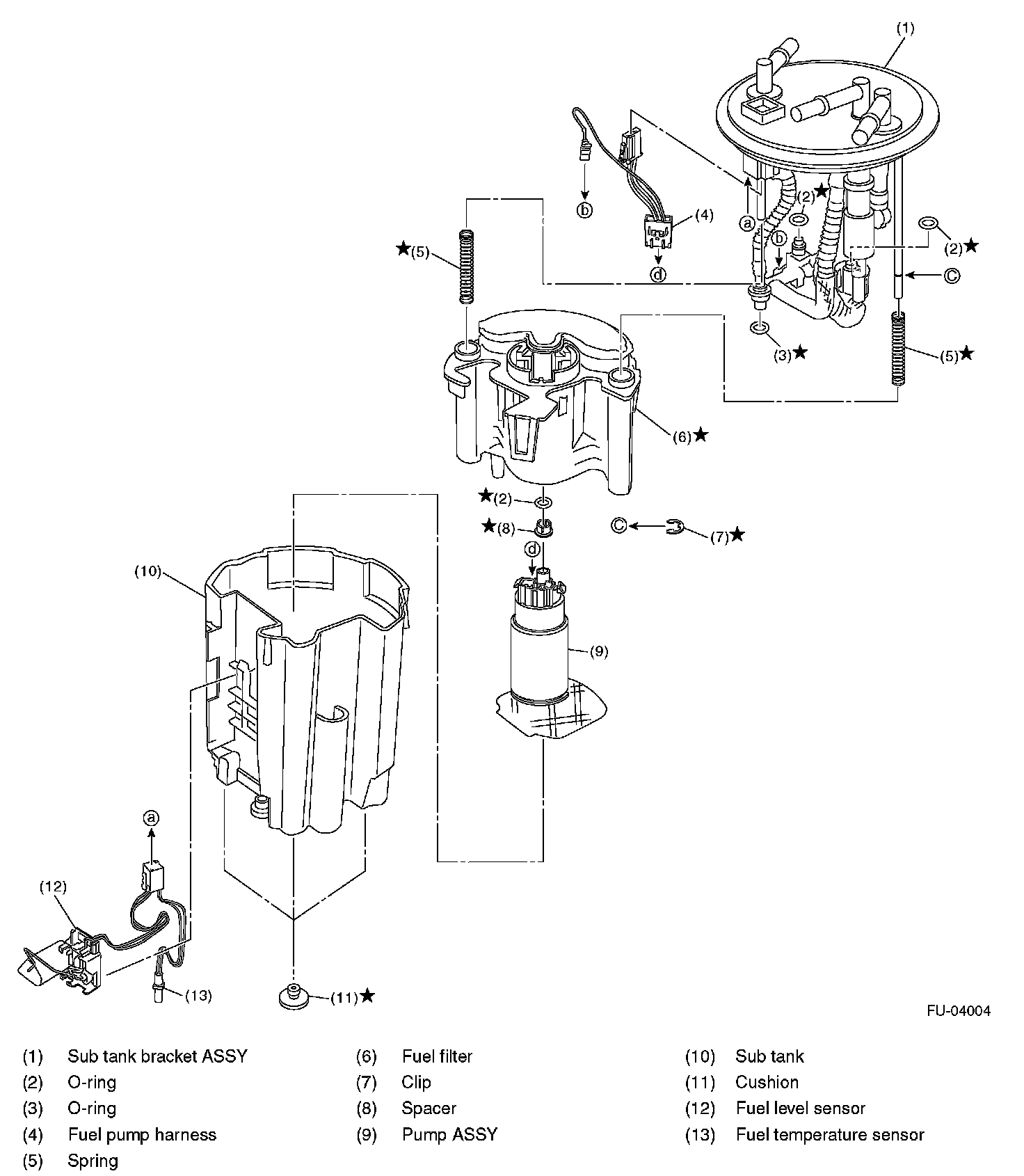

Fuel Pump
This article / image reflects the changes called out in manual update
18-135-09 dated 02\02/09.
Fuel Pump:
