Skid Plate: Service and Repair

FLOOR UNDER PROTECTOR

Under Protector:

REMOVAL
1. Lift up the vehicle.

NOTE: A plate type lift cannot be used.

2. Remove the push turn clips (A) and bolts (B), and remove the floor under protector.







INSTALLATION

Install in the reverse order of removal.

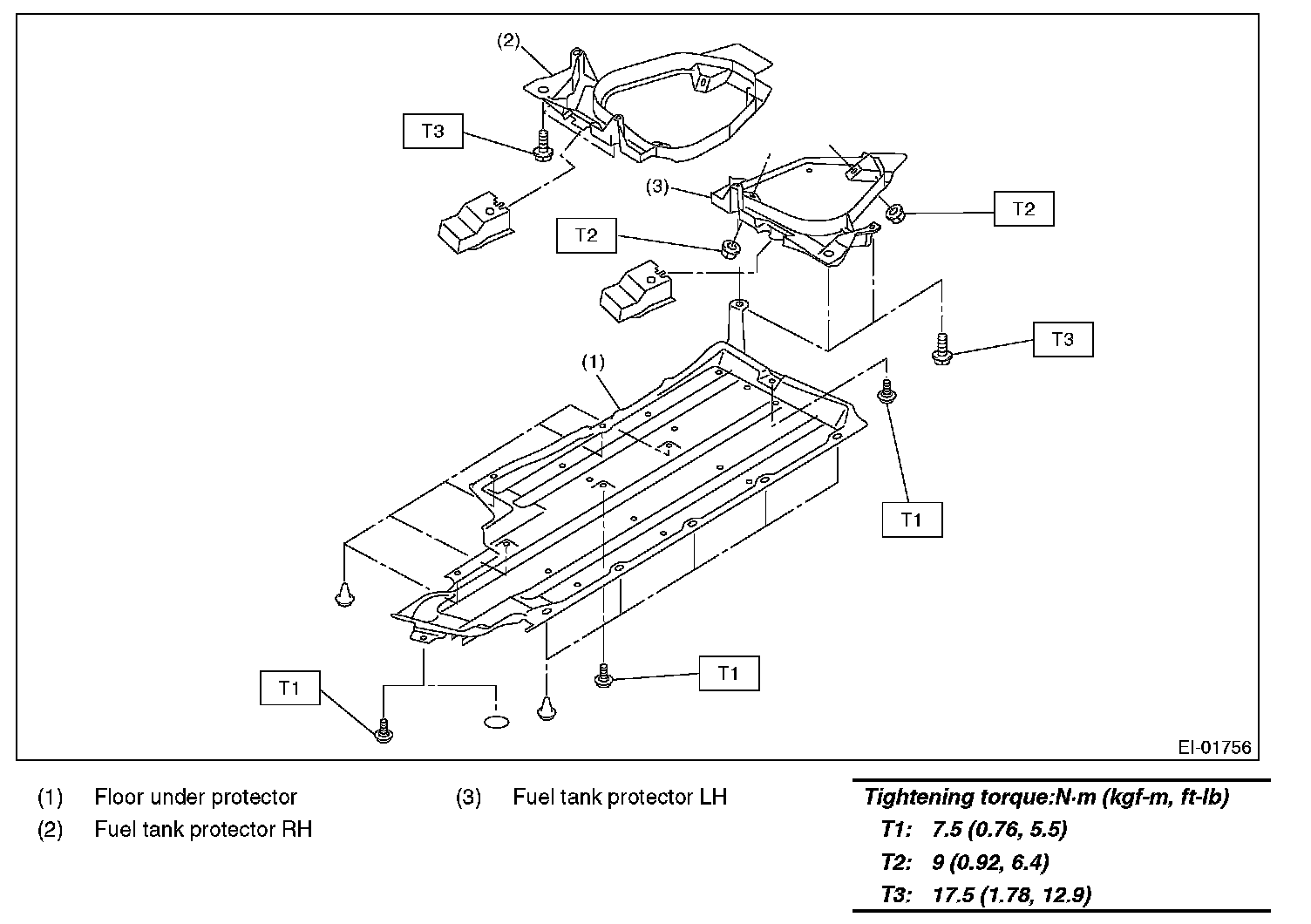

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to UNDER PROTECTOR, COMPONENT, General Description.]
