Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor

REMOVAL

WARNING: Place "NO OPEN FLAMES" signs near the working area.

1. Set the vehicle on a lift.
2. Disconnect the ground cable from battery.






3. Open the fuel filler lid, and remove the fuel filler cap.
4. Lift up the vehicle.
5. Disconnect the connector from the fuel tank pressure sensor.
6. Disconnect the pressure hose from the fuel tank pressure sensor.

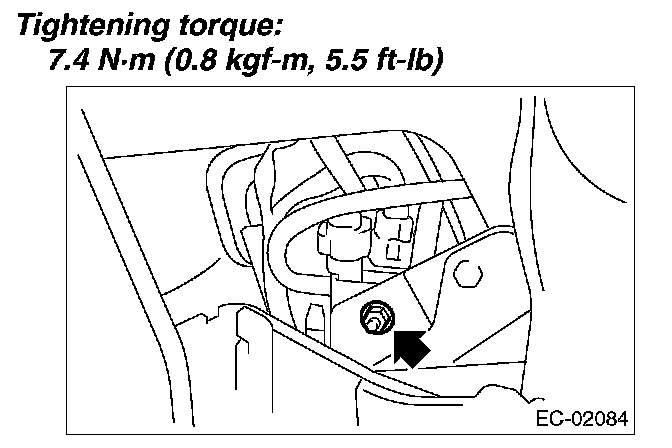

7. Remove the fuel tank pressure sensor along with the bracket.






INSTALLATION

Install in the reverse order of removal.
