Spark Plug: Service and Repair
Spark PlugSpark plug:
Refer to "SPECIFICATION" for the spark plug.
REMOVAL
1. RH SIDE

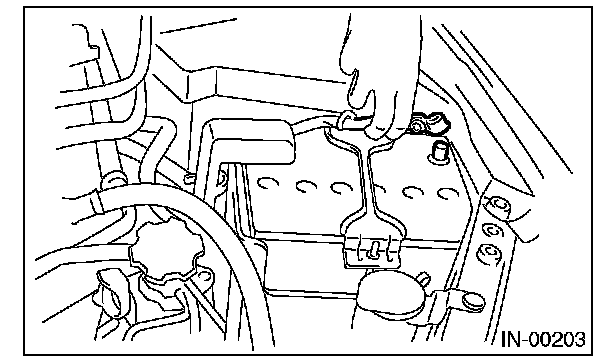

1. Disconnect the ground cable from battery.
2. Remove the air cleaner case.

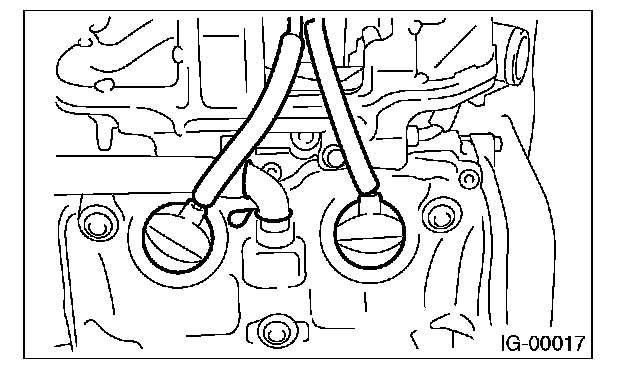

3. Remove the spark plug cords by pulling the boot. Do not pull the cord itself.).

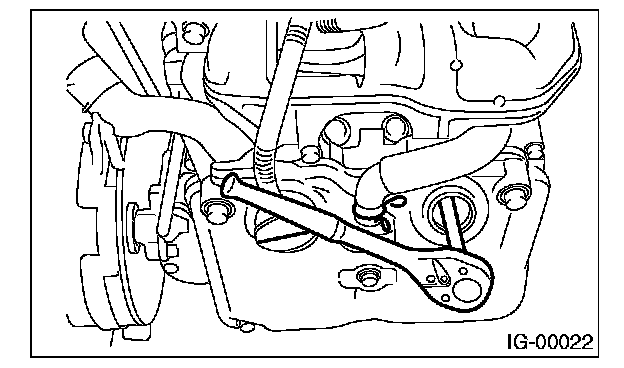

4. Remove the spark plug with a spark plug socket.
2. LH SIDE
1. Remove the battery.

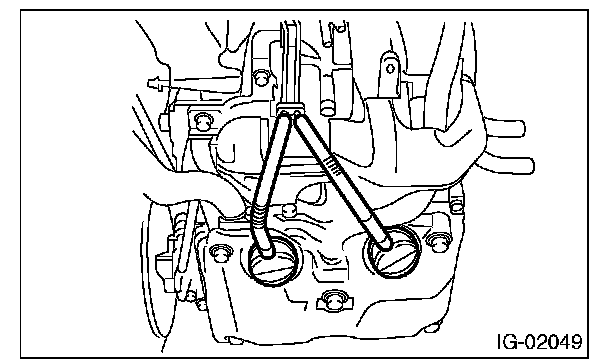

2. Remove the spark plug cords by pulling the boot.(Do not pull the cord itself.)

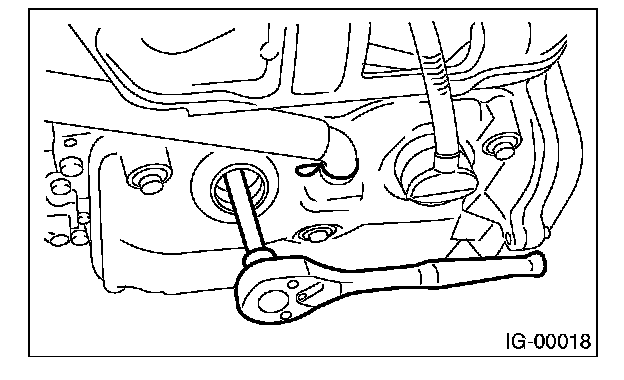

3. Remove the spark plug with a spark plug socket..
INSTALLATION
1. RH SIDE
Install in the reverse order of removal.
Tightening torque: 21 N.m (2.1 kgf.m, 15.5 ft.lb)
2. LH SIDE
Install in the reverse order of removal.
Tightening torque: 21 N.m (2.1 kgf.m, 15.5 ft.lb)
