Communication for Initializing Impossible

Diagnostic Procedure for Subaru Select Monitor Communication
COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS: Defective harness connector
TROUBLE SYMPTOM: Subaru Select Monitor communication failure

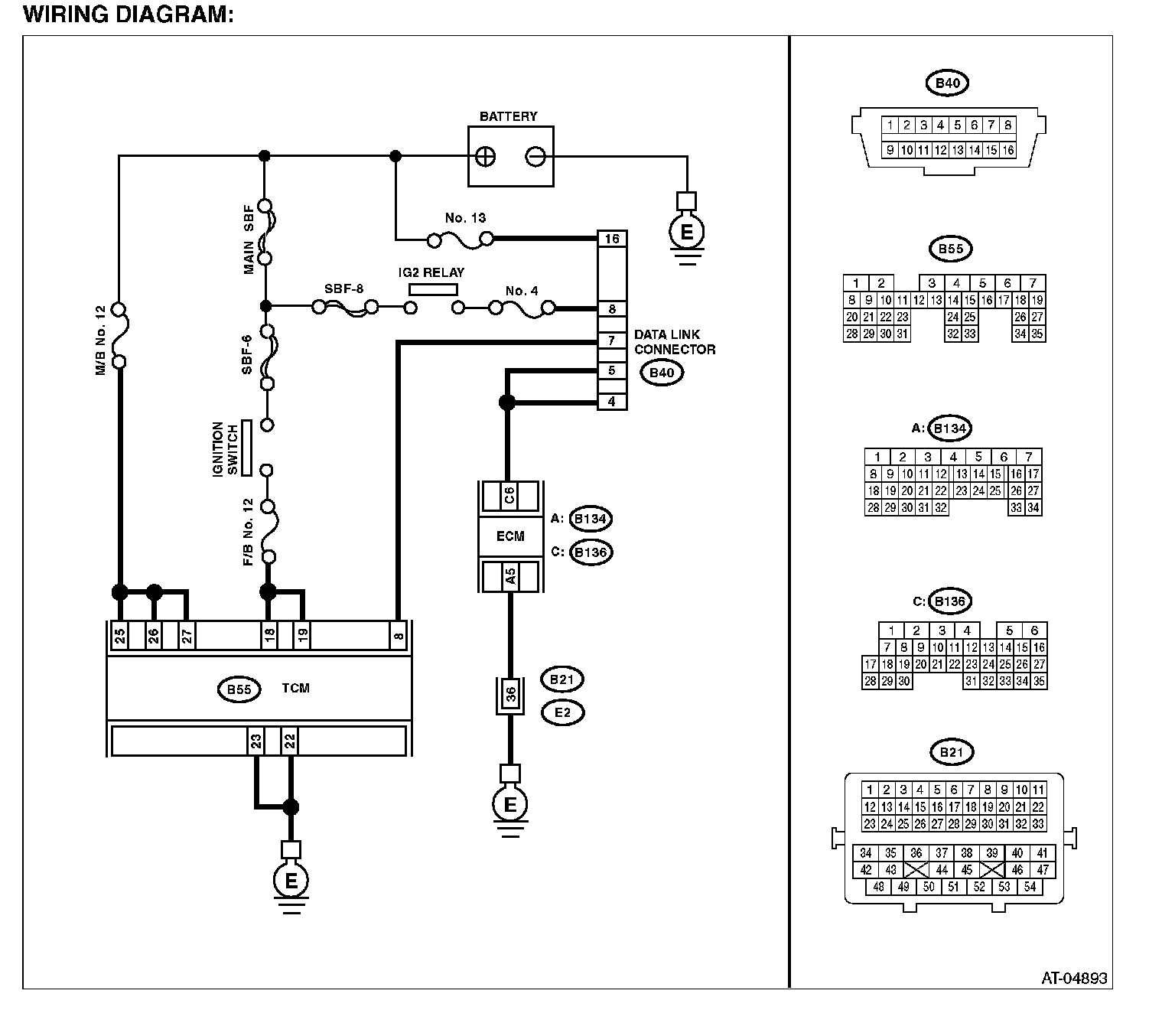

WIRING DIAGRAM:

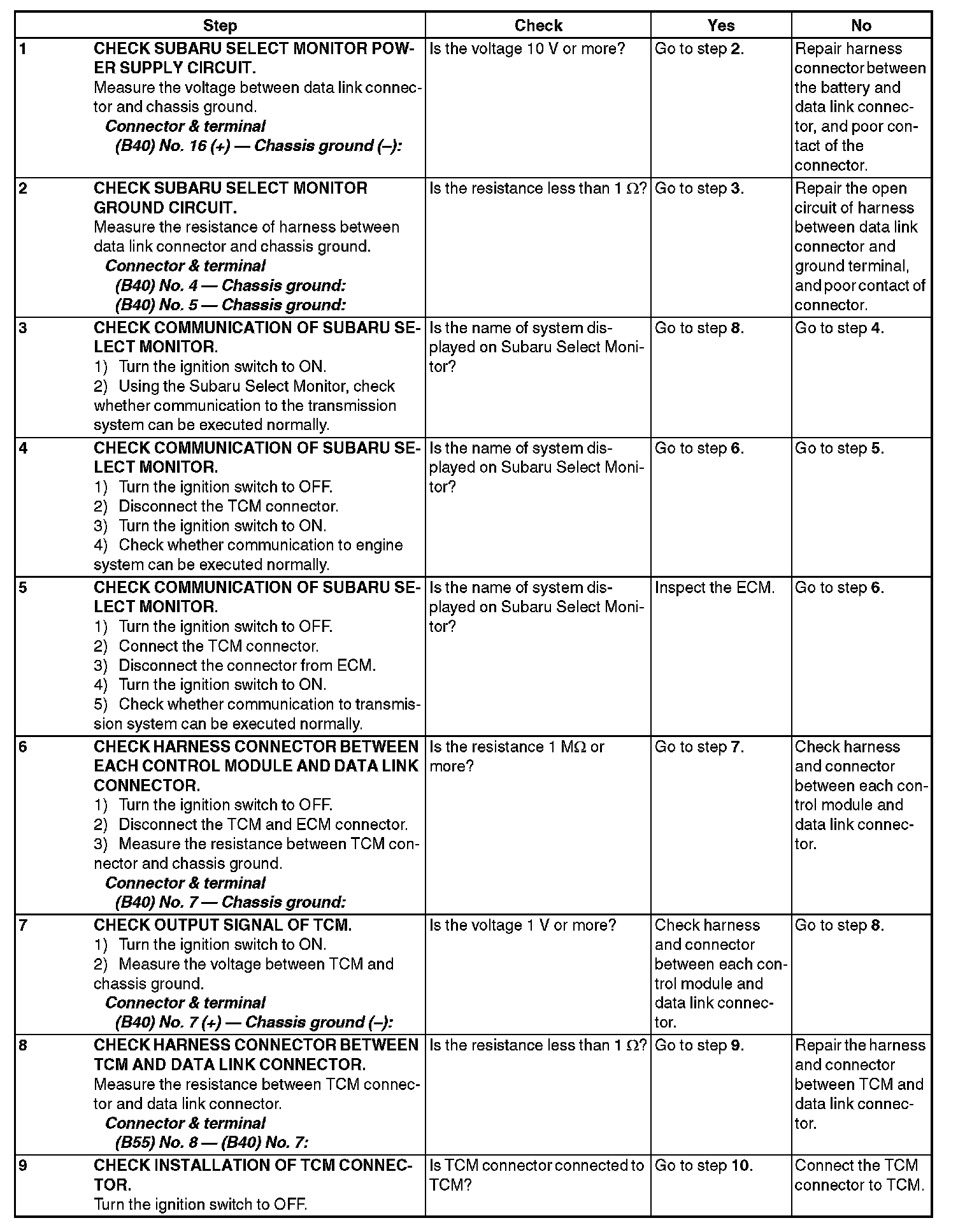

Step 1-Step 9:

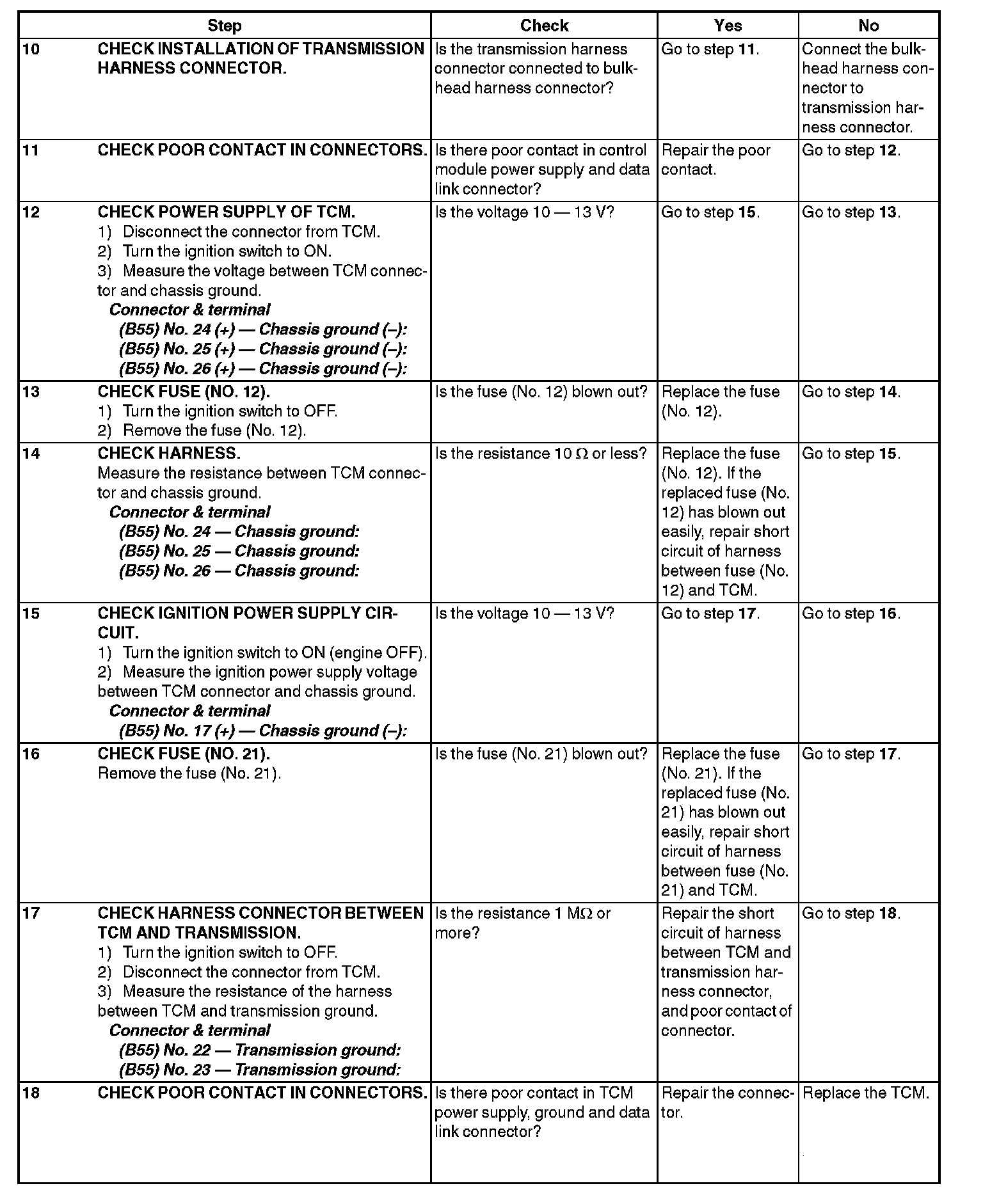

Step 10-Step 18:
