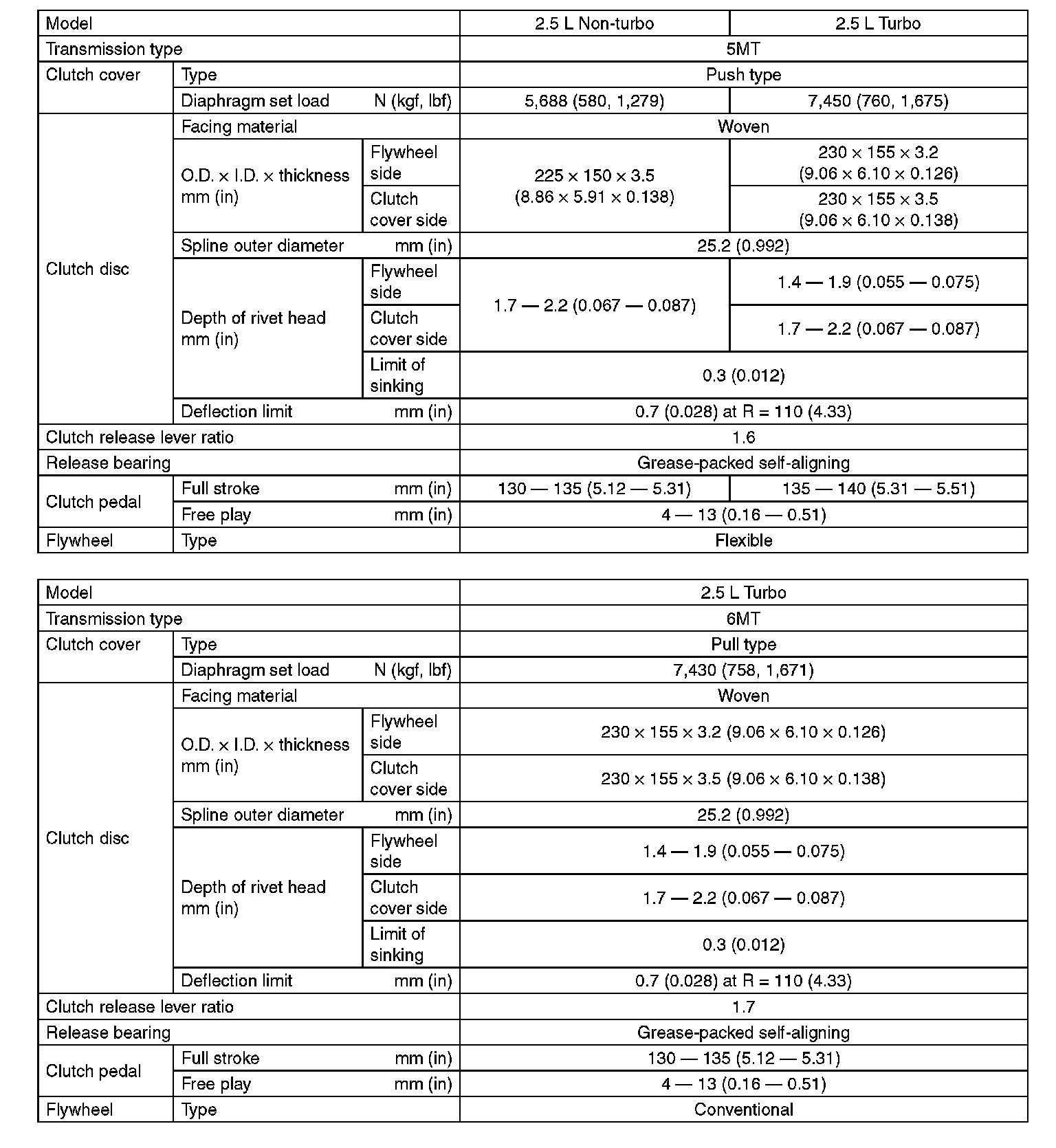

System Specifications

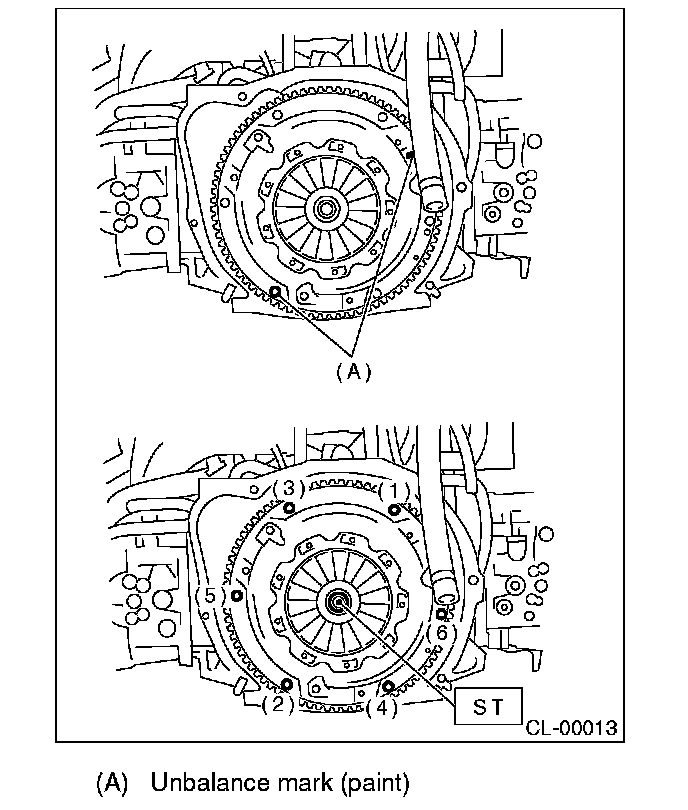

Clutch cover
16 N-m (1.6 kgf-m, 11.8 ft-lb)
Disc wear limit
Depth to rivet head
0.3 mm (0.012 in)
