Front Drive Shaft Assembly

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATION

Model Type of drive shaft Axle diameter D mm (in) Axle length L mm (in)
Turbo 5MT, 6MT EBJ + PTJ 26 (1.0) 332.5 (13.09)
Other than above EBJ + PTJ 26 (1.0) 349.6 (13.76)

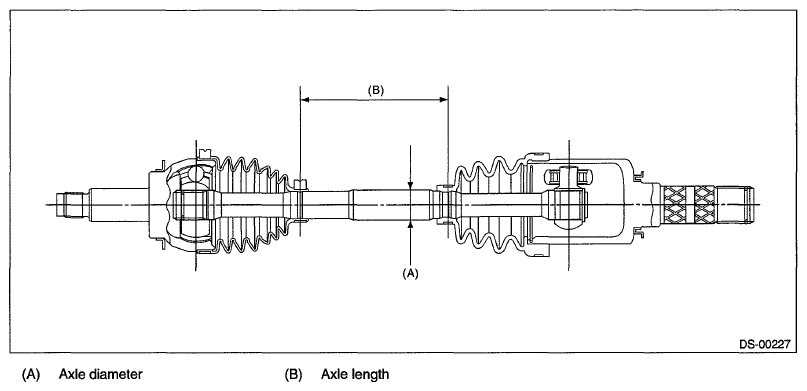

Fig 1: Identifying Axle Length - Front Drive Shaft Assembly
G06339163Courtesy of SUBARU OF AMERICA, INC.
