Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

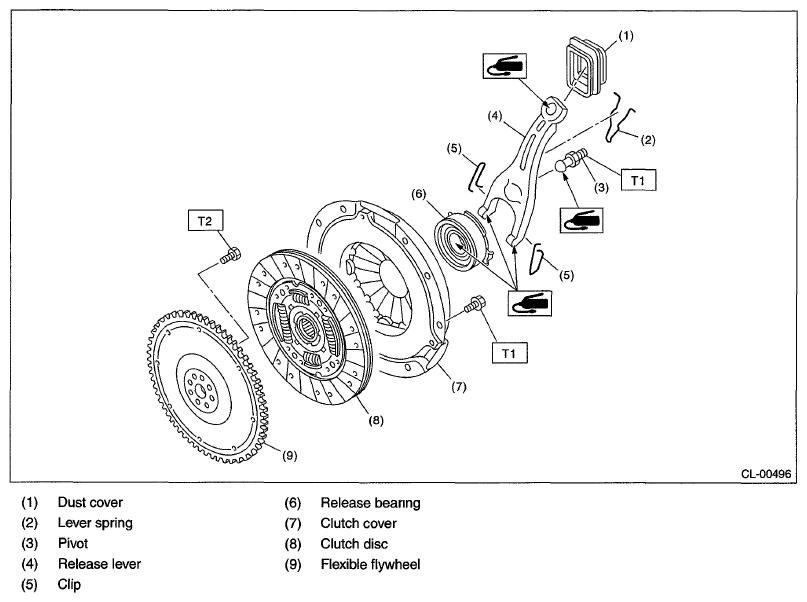

5MT non-turbo model

Fig 1: Identifying Clutch Assembly Components - 5MT Non-Turbo Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16(1.6,11.8)

T2: 72(7.3,53.1)

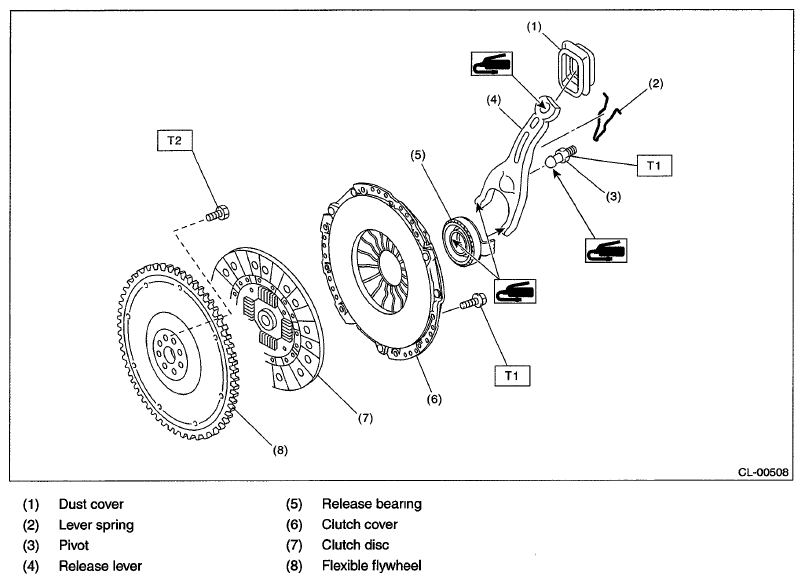

5MT turbo model

Fig 2: Identifying Clutch Assembly Components - 5MT Turbo Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16(1.6,11.8)

T2: 72(7.3,53.1)

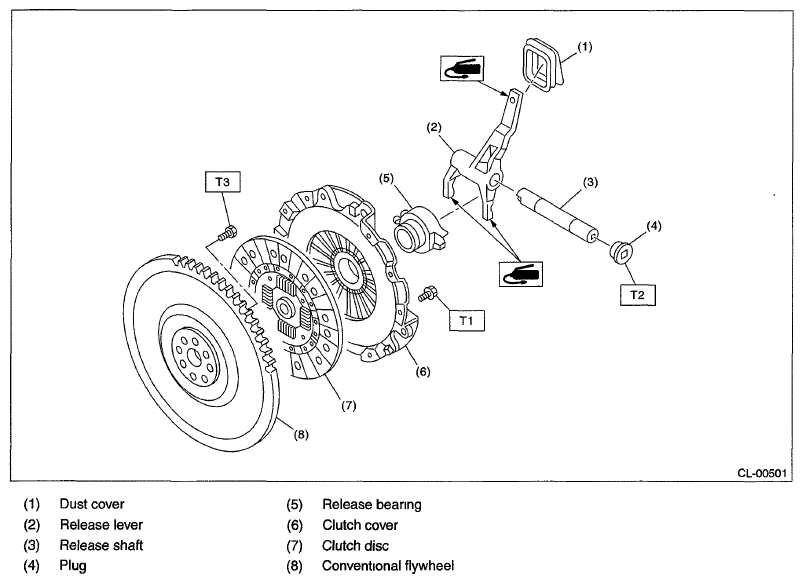

6MT model

Fig 3: Identifying Clutch Assembly Components - 6MT Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16(1.6,11.8)

T2: 48(4.9,35.4)

T3: 72(7.3,53.1)
