Master Cylinder

WARNING: This page is about a different variant/trim than selected.

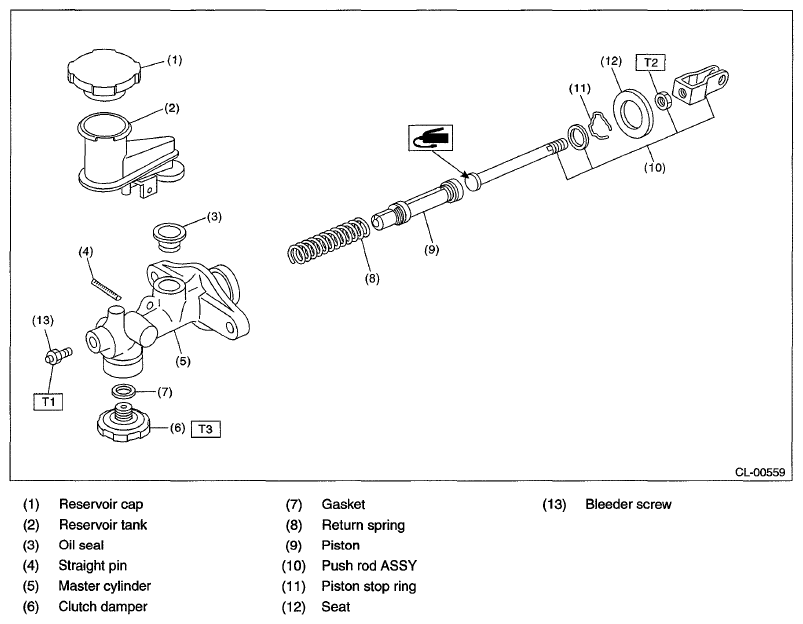

Fig 1: Identifying Master Cylinder Components

G06338576

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.8(0.8,5.8)

T2: 10(1.0,7.4)

T3: 46.6(4.8,34.4)
