Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air intake chamber. (Non-turbo model) Refer to REMOVAL , Air Intake Chamber.
Remove the intercooler. (Turbo model) Refer to REMOVAL , Intercooler.
Disconnect the clutch hose from the operating cylinder.
CAUTION:
- Cover the hose joint to prevent the clutch fluid from flowing out.
- Do not loosen or remove the cap bolts.
- 5MT model
  NOTE: The illustration below is for a Non-turbo model. However, perform the same procedures for the Turbo model.

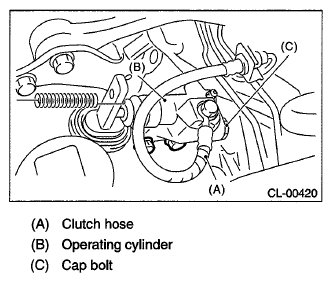

  Fig 1: Identifying Clutch Hose And Operating Cylinder - 5MT Model
  Courtesy of SUBARU OF AMERICA, INC.
- 6MT model

  Fig 2: Identifying Clutch Hose And Operating Cylinder - 6MT Model
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from the transmission.
- 5MT model
  NOTE: The illustration below is for a Non-turbo model. However, perform the same procedures for the Turbo model.

  Fig 3: Locating Operating Cylinder Bolts - 5MT Model
  Courtesy of SUBARU OF AMERICA, INC.
- 6MT model

  Fig 4: Locating Operating Cylinder Bolts - 6MT Model
  Courtesy of SUBARU OF AMERICA, INC.
