Transmission Control Module (TCM): Installation
WARNING: This page is about a different variant/trim than selected.

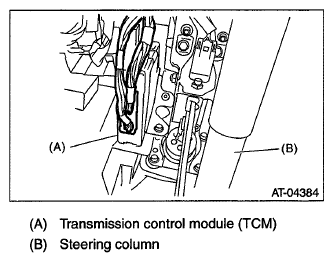

- Install the TCM.
Tightening torque: 7.5 N.m(0.8 kgf-m, 5.5 ft-lb)
- Connect the connector to the TCM.
- Install in the reverse order of removal.
- Perform Clear Memory 2 operation. Refer to CLEAR MEMORY MODE , OPERATION, Subaru Select Monitor.
- Execute the learning control promotion. Refer to PROCEDURE , Learning Control.
- Perform the inspection at the end of repair work, and make sure there is no faulty as below;
- Excessive shift shock
- Oil leakage from the transmission body, etc.
- Occurrence of noise caused by interference etc.
