Components With Torque Specifications

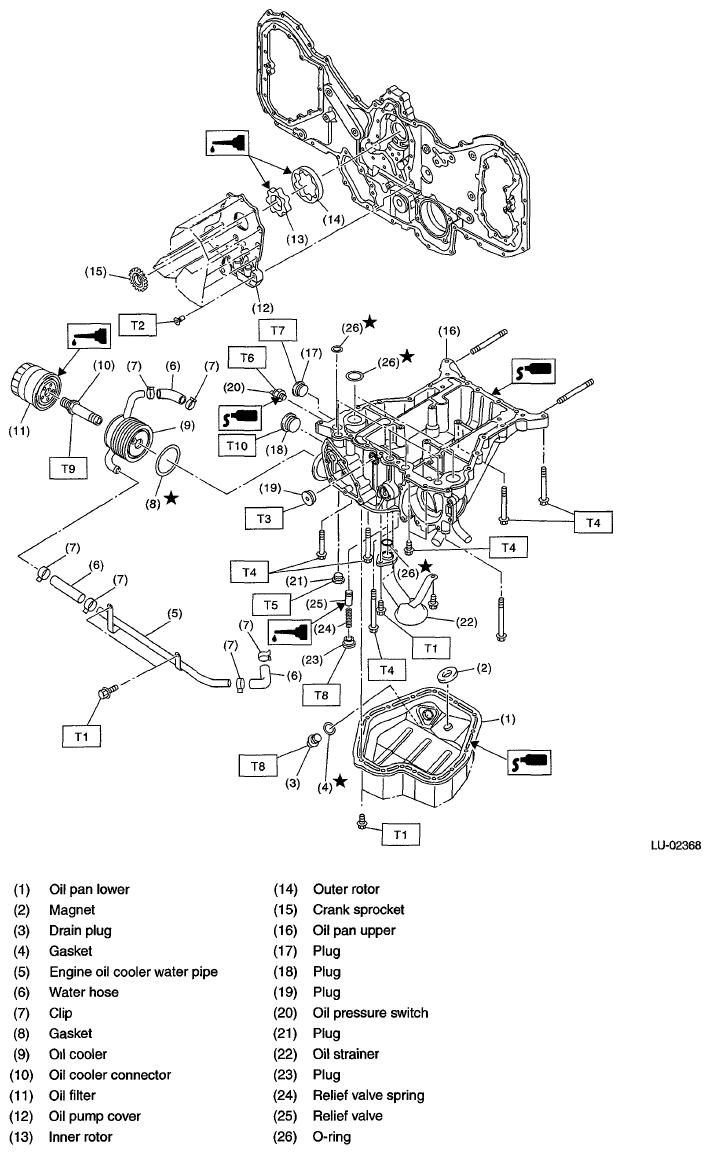

Fig 1: Identifying Lubrication Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Ref. to INSTALLATION , Oil Pump.

T3: 16(1.6, 11.8)

T4: 18 (1.8, 13.3)

T5: 23(2.3,17.0)

T6: 25(2.5, 18.4)

T7: 37(3.8,27.3)

T8: 44 (4.5, 32.5)

T9: 54 (5.5, 39.8)

T10: 90 (9.2, 66.4)
