Engine Controls - Engine (Diagnostics) (H6DO): Electrical Component Location: Location: Sensor

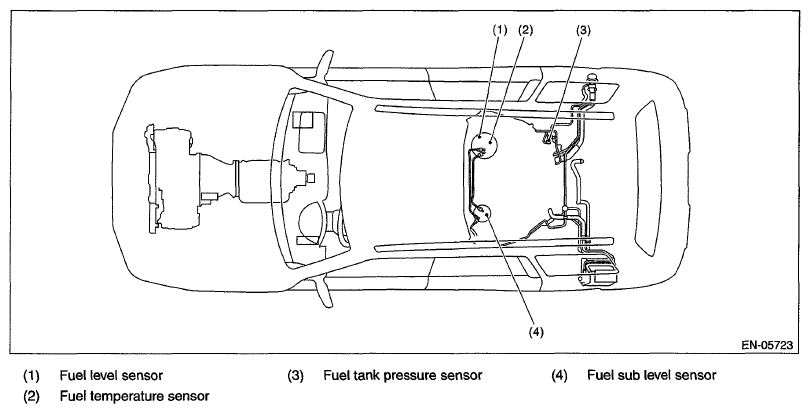

Fig 1: Identifying Control Module Sensors Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

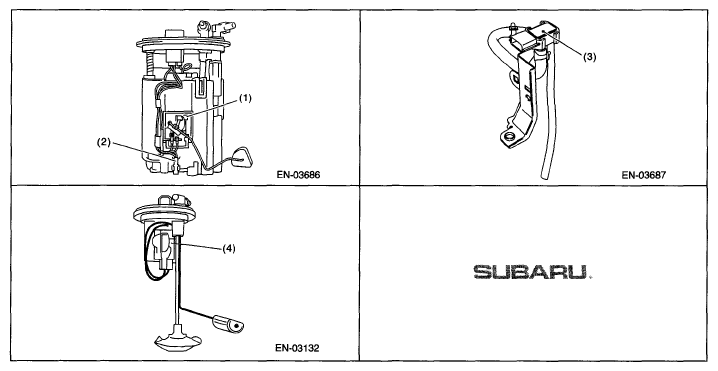

Fig 2: Identifying Control Module Sensors Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

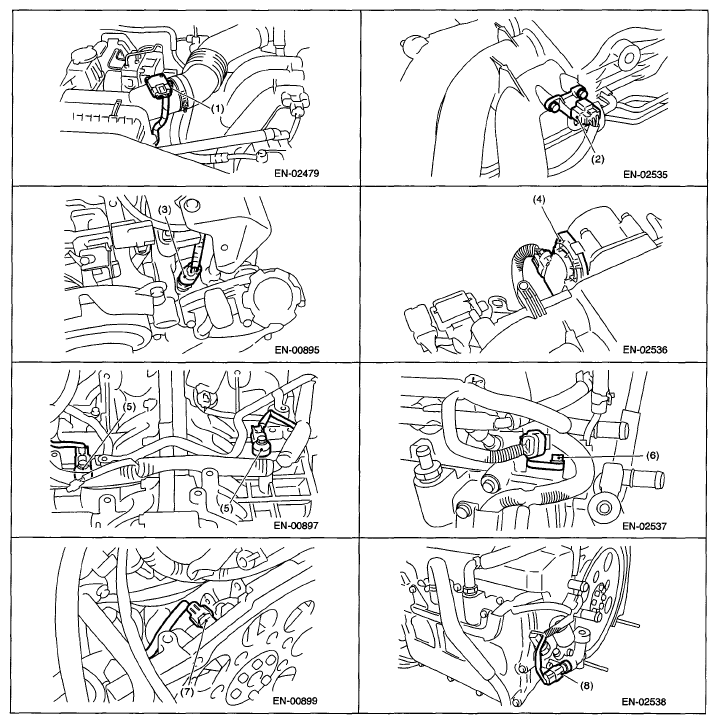

Fig 3: Identifying Control Module Sensors Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

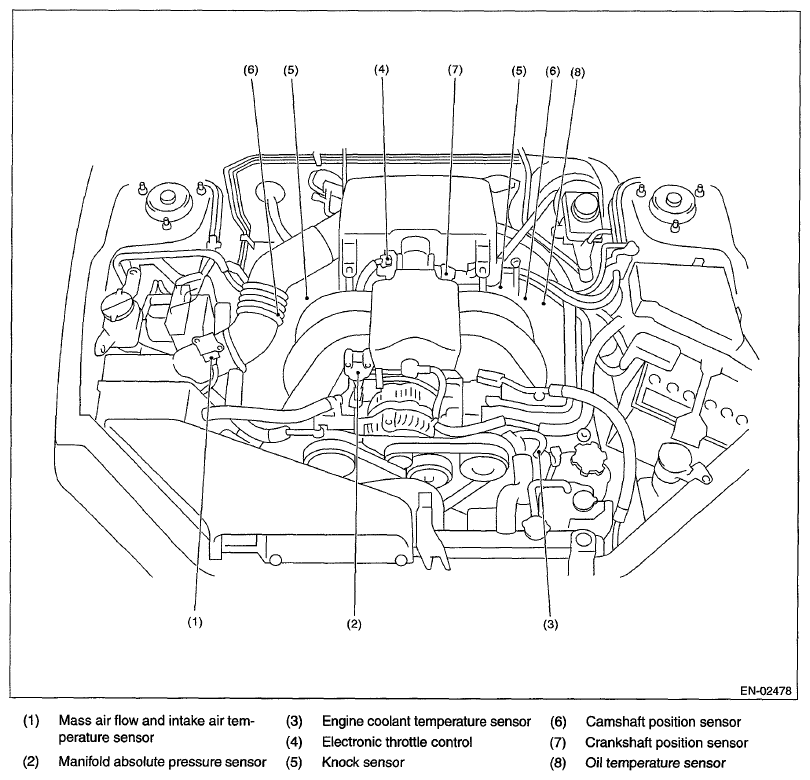

Fig 4: Identifying Control Module Sensors Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

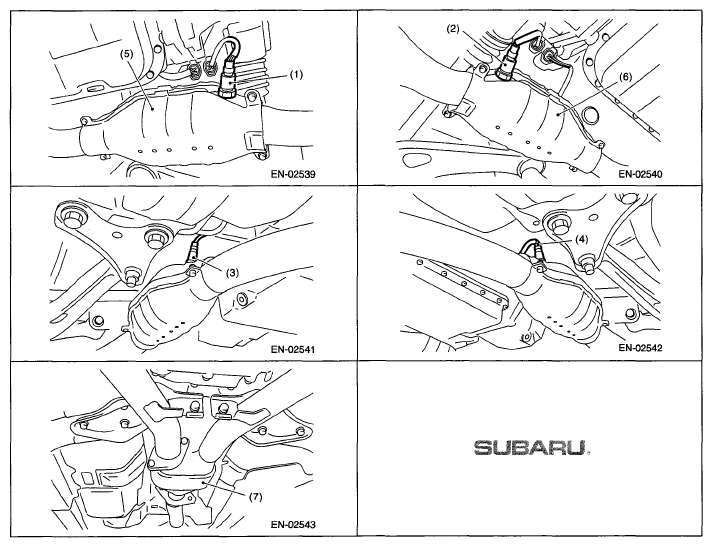

Fig 5: Identifying Control Module Sensors Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

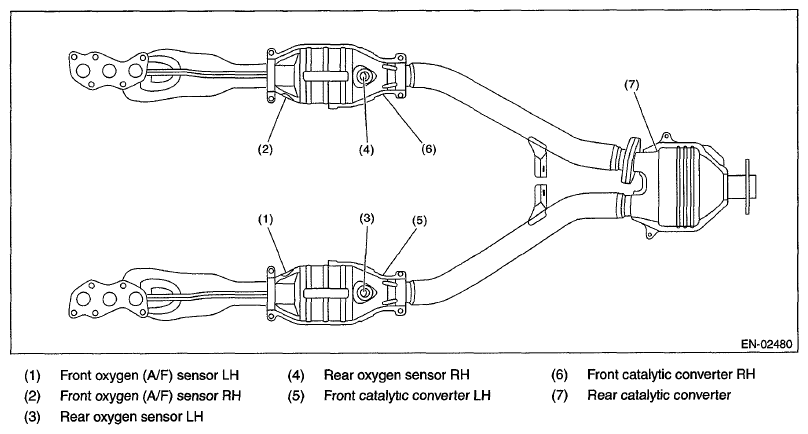

Fig 6: Identifying Control Module Sensors Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
