VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

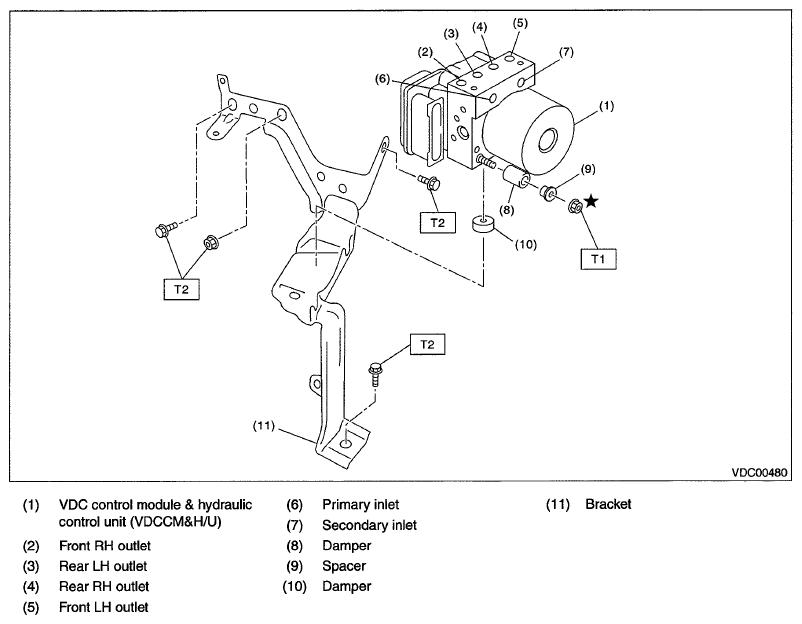

Fig 1: Identifying VDCCM&H/U Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5(0.76,5.5)

T2: 33(3.4,24)
