DTC P0604 Internal Control Module Random Access Memory (Ram) Error: Wiring Diagram

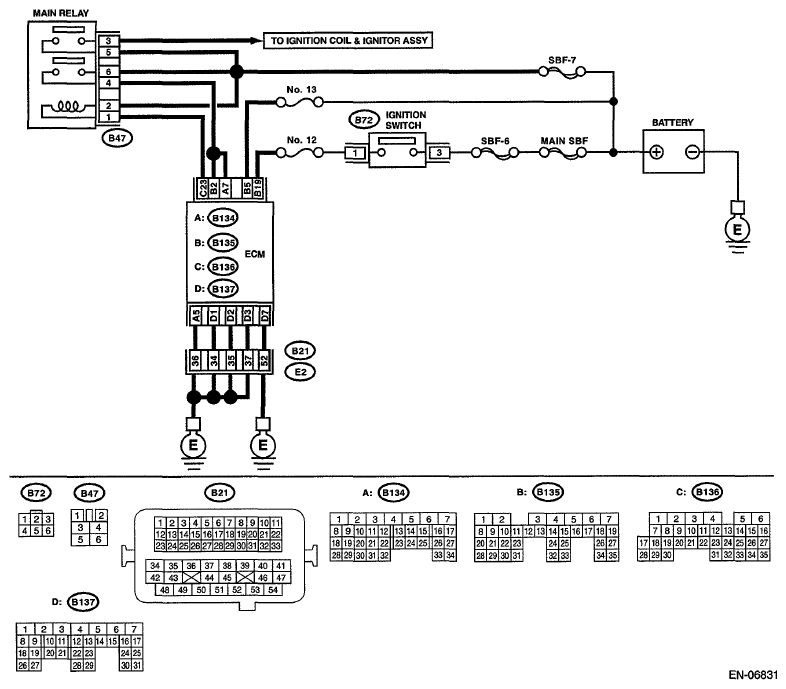

Fig 1: Internal Control Module Random Access Memory (RAM) Error - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

RAM ERROR DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Check the appropriate DTC using the "List of Diagnostic Trouble Code (DTC)". Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .	Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector may be the cause.
