Operating Cylinder

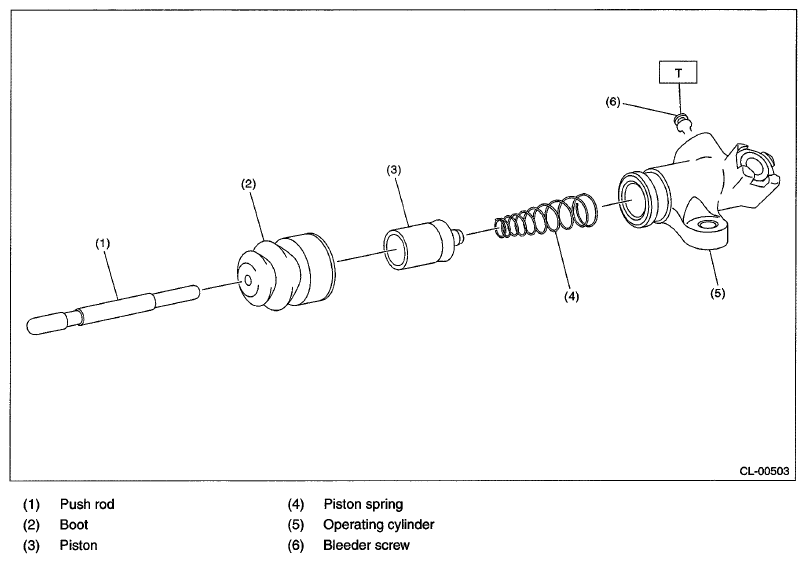

Fig 1: Identifying Operating Cylinder Components - 5MT Non-Turbo Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8,5.8)

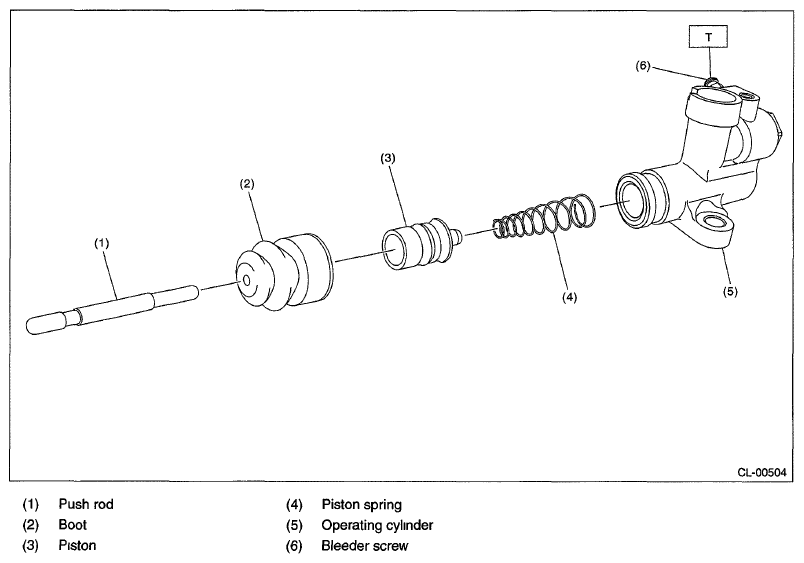

Fig 2: Identifying Operating Cylinder Components - 5MT Turbo Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8,5.8)
