Engine Controls - Engine (Diagnostics) (H6DO): Electrical Component Location: Location: Sensor

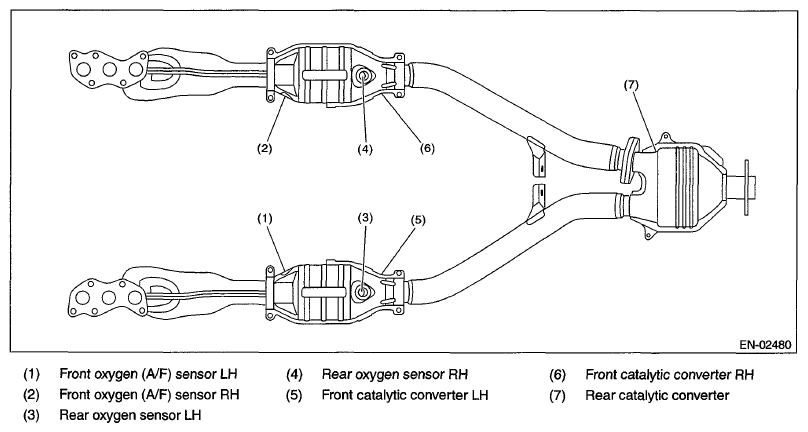

Fig 1: Identifying Electrical Component Location - Sensor (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

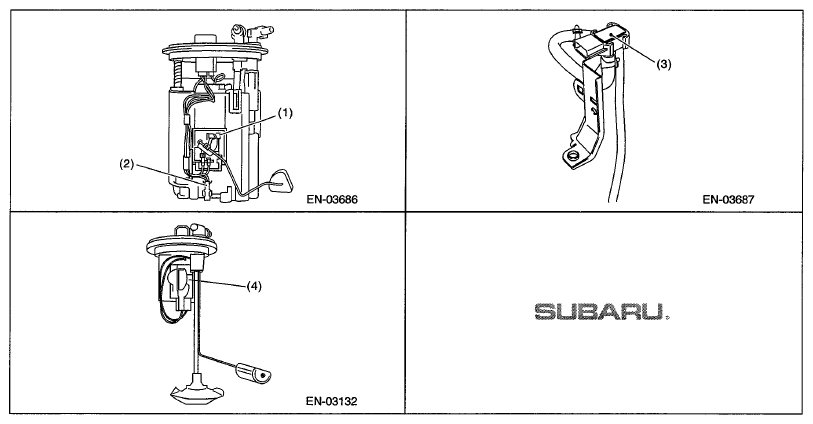

Fig 2: Identifying Electrical Component Location - Sensor (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

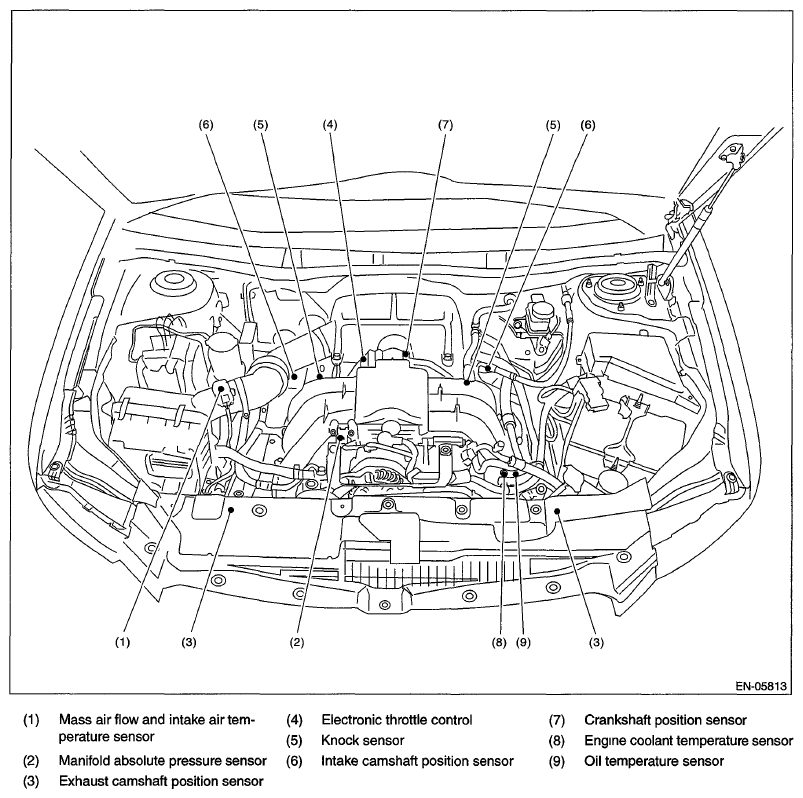

Fig 3: Identifying Electrical Component Location - Sensor (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

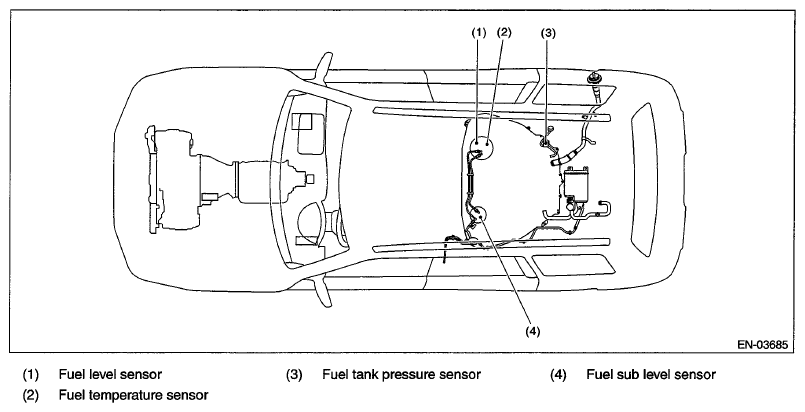

Fig 4: Identifying Electrical Component Location - Sensor (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

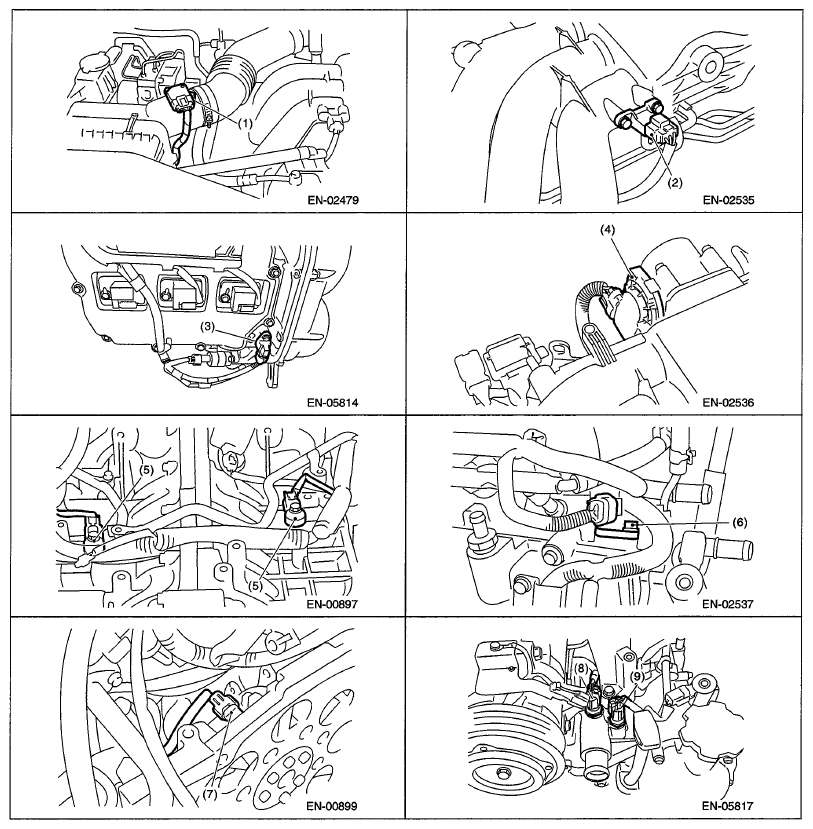

Fig 5: Identifying Electrical Component Location - Sensor (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

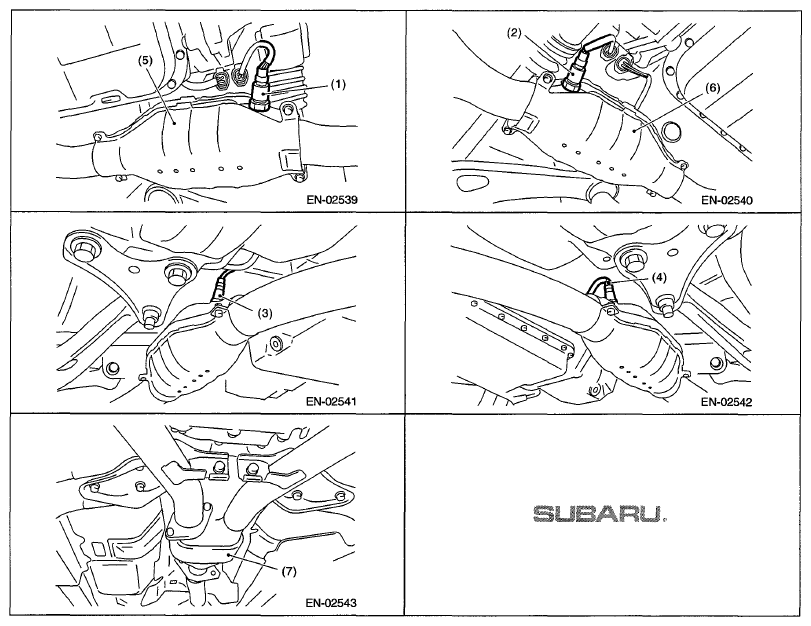

Fig 6: Identifying Electrical Component Location - Sensor (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
