Oil Pump

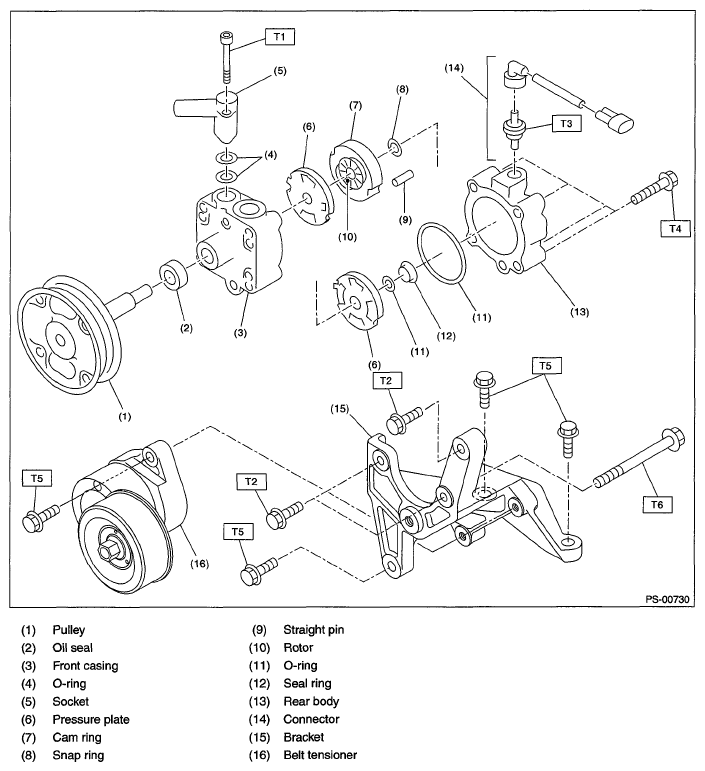

Fig 1: Identifying Oil Pump Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.73 (0.38,2.75)

T2: 15.7 (1.6,11.6)

T3: 19.6 (2.0, 14.5)

T4: 27.5 (2.8,20.3)

T5; 33 (3.4,24.3)

T6: 36.8 (3.8,27.1)
