Steering Wheel And Column

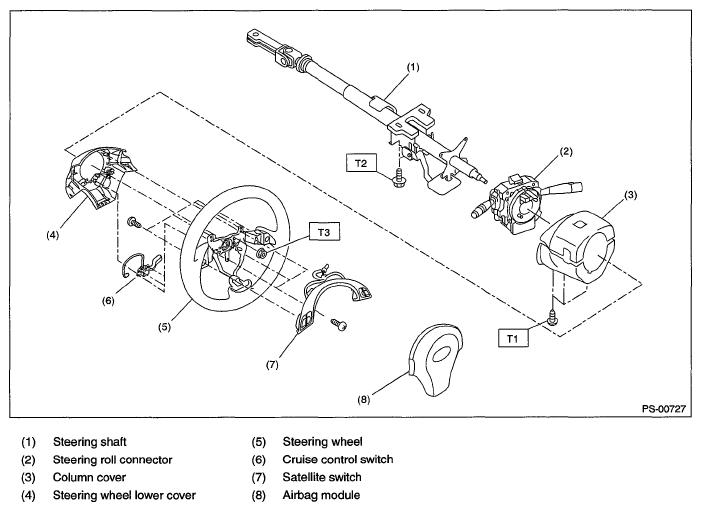

Fig 1: Identifying Steering Wheel And Column Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.2 (0.12, 0.89)

T2: 25 (2.5, 18.4)

T3: 45 (4.6,33.2)
