Transmission Control Module (TCM) I/O Signal

Transmission Control Module (TCM) I/O Signal

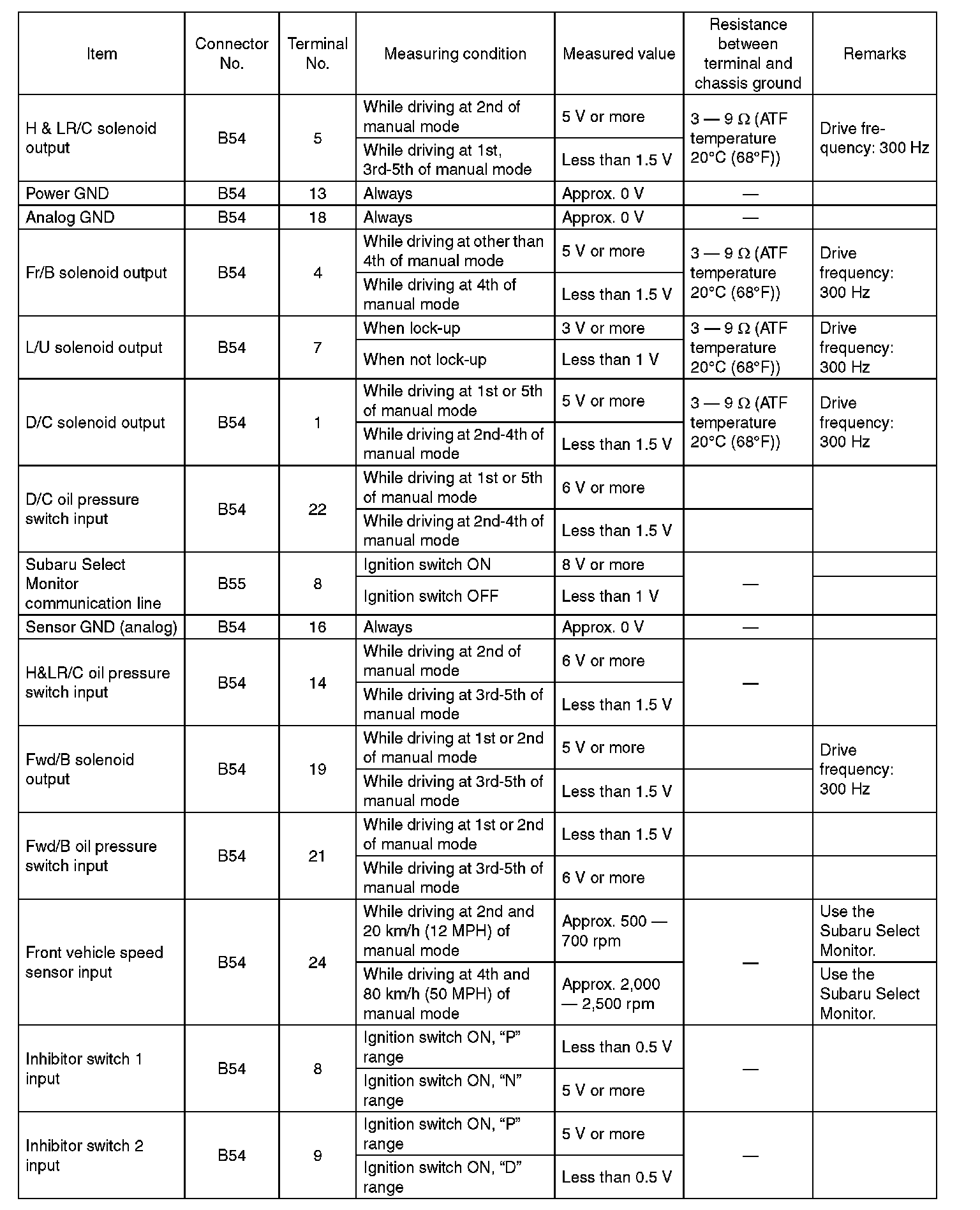

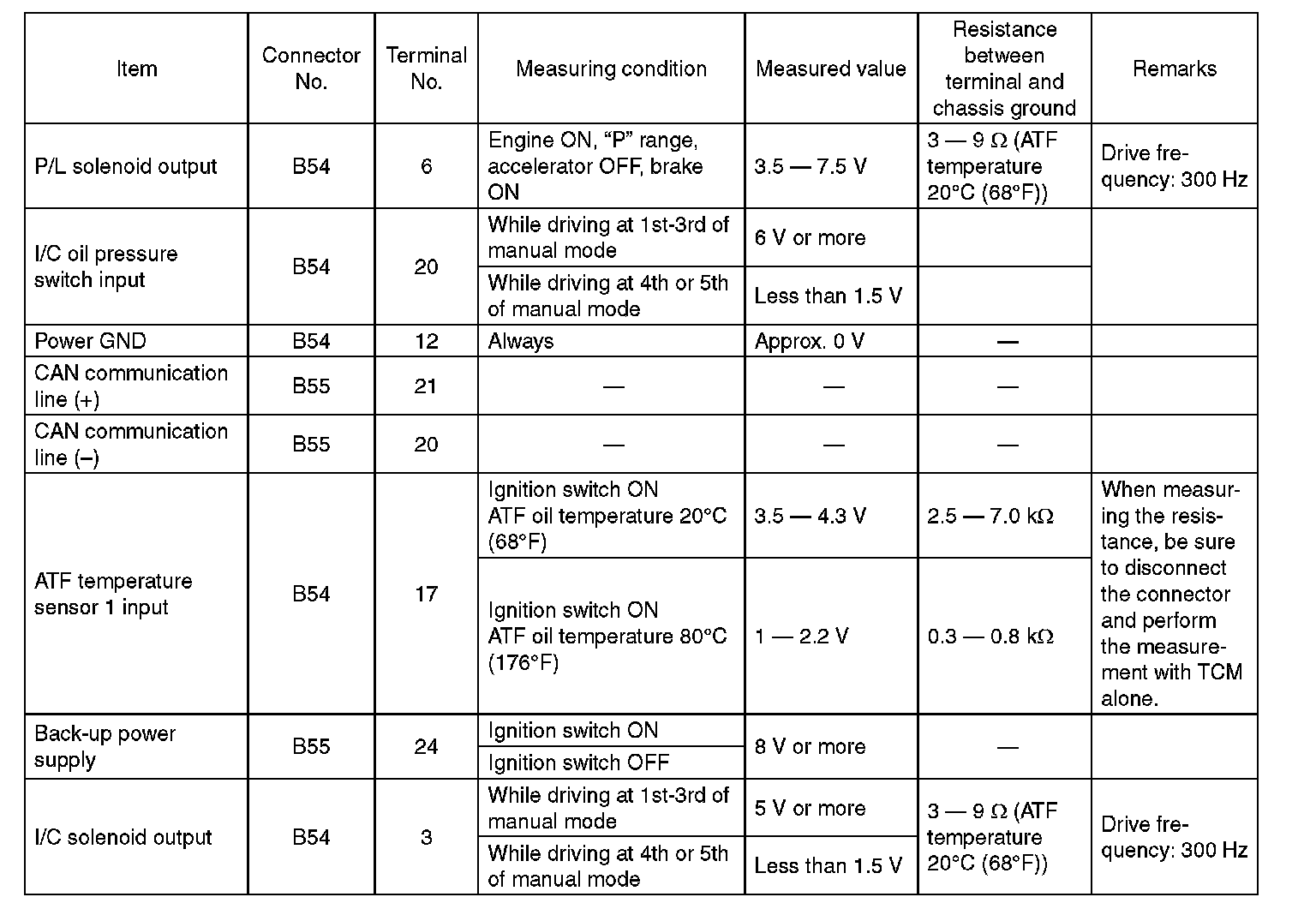

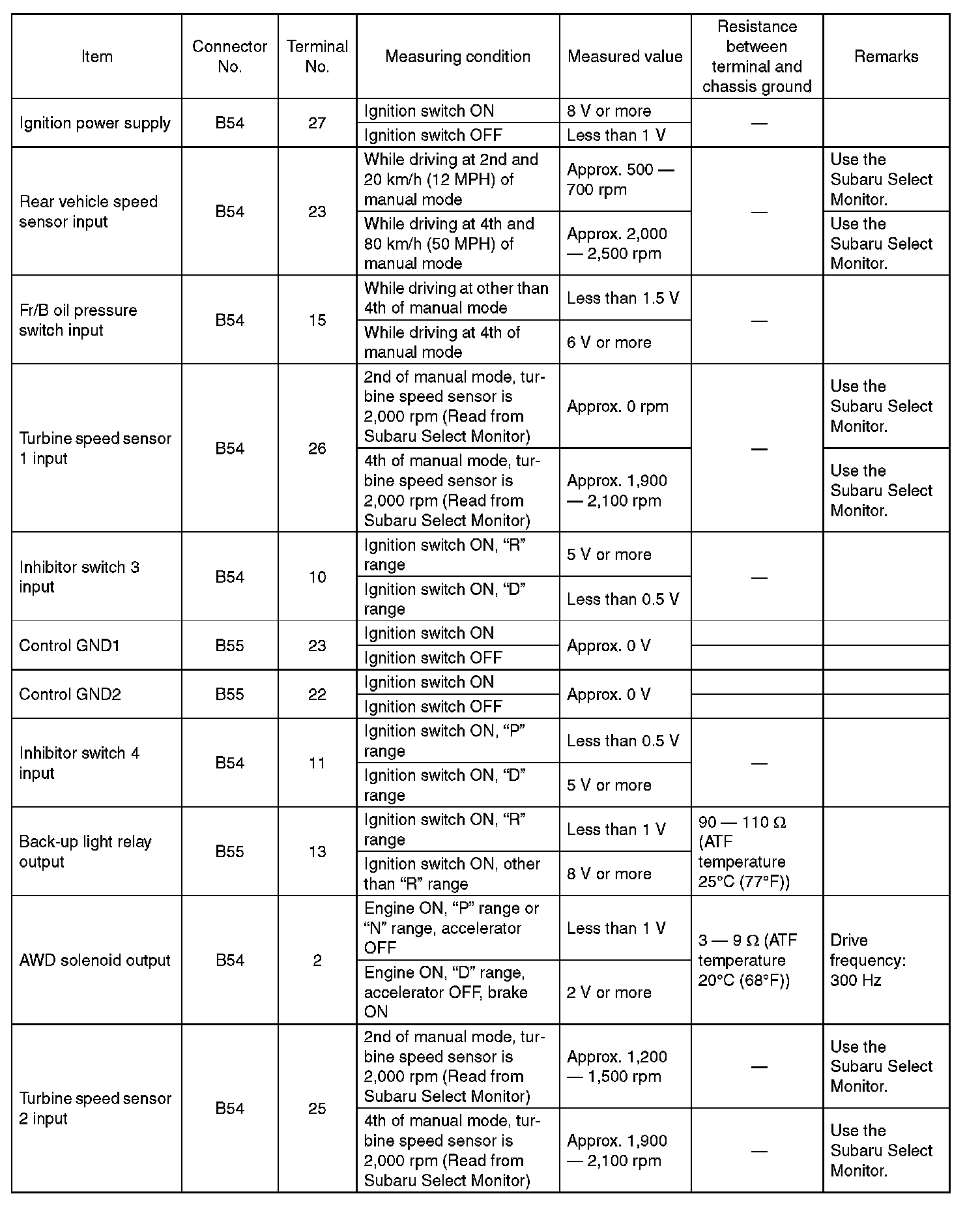

ELECTRICAL SPECIFICATION





NOTE:
The measurement should be performed after warming up.
