System Diagram

COMPONENT

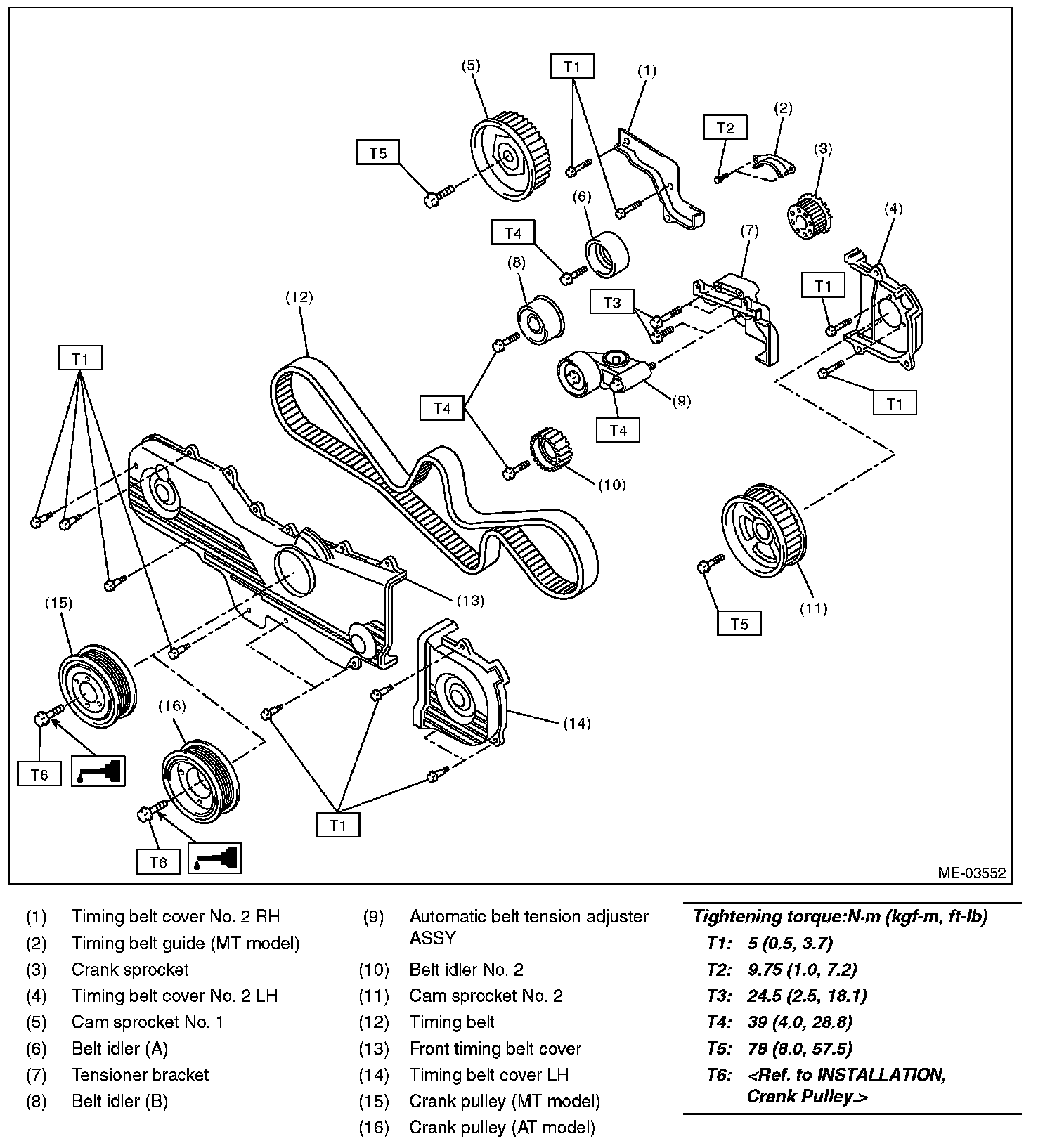

TIMING BELT

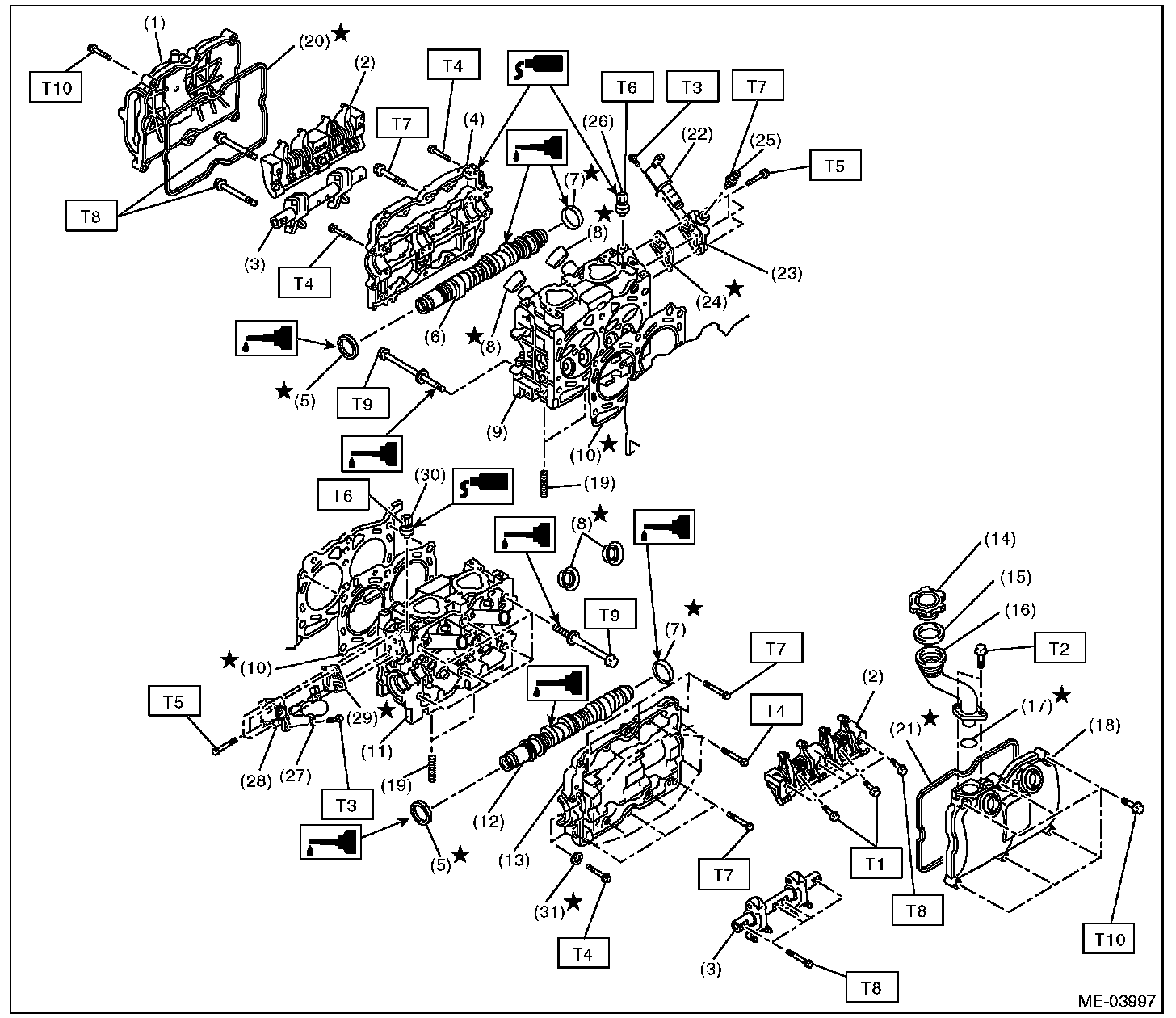

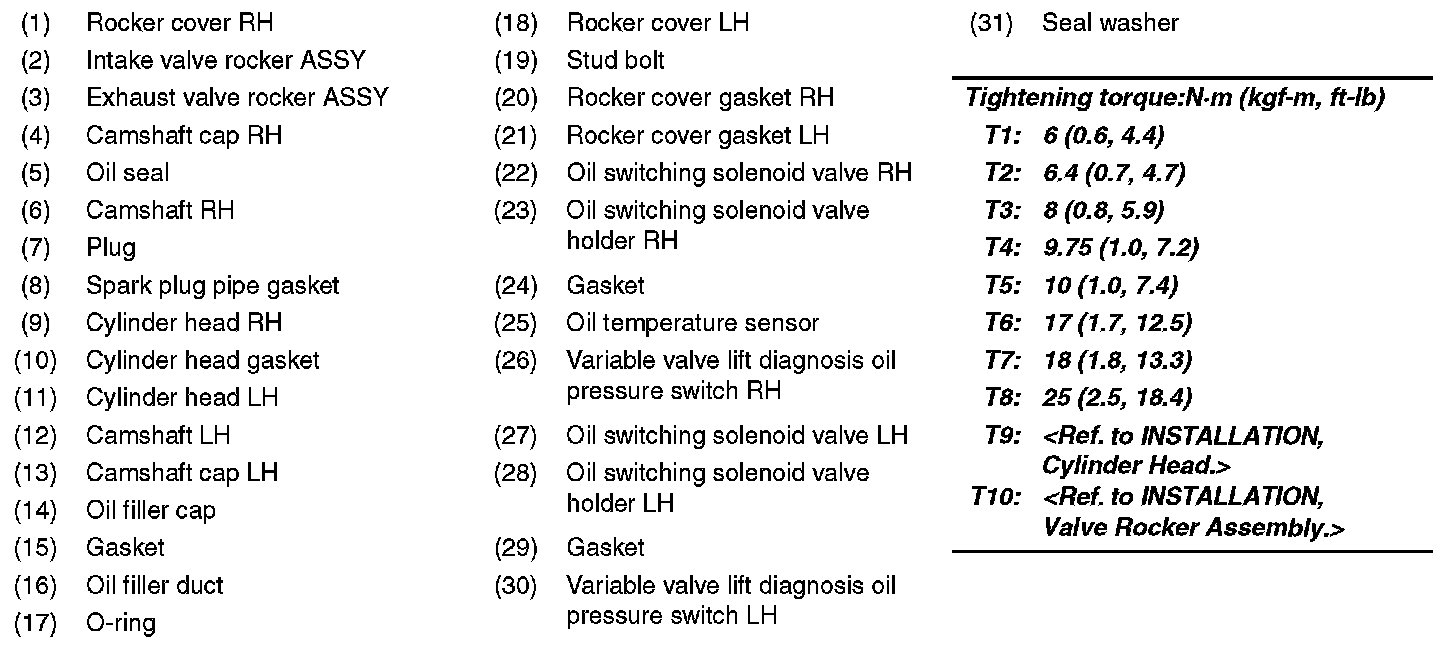

CYLINDER HEAD AND CAMSHAFT

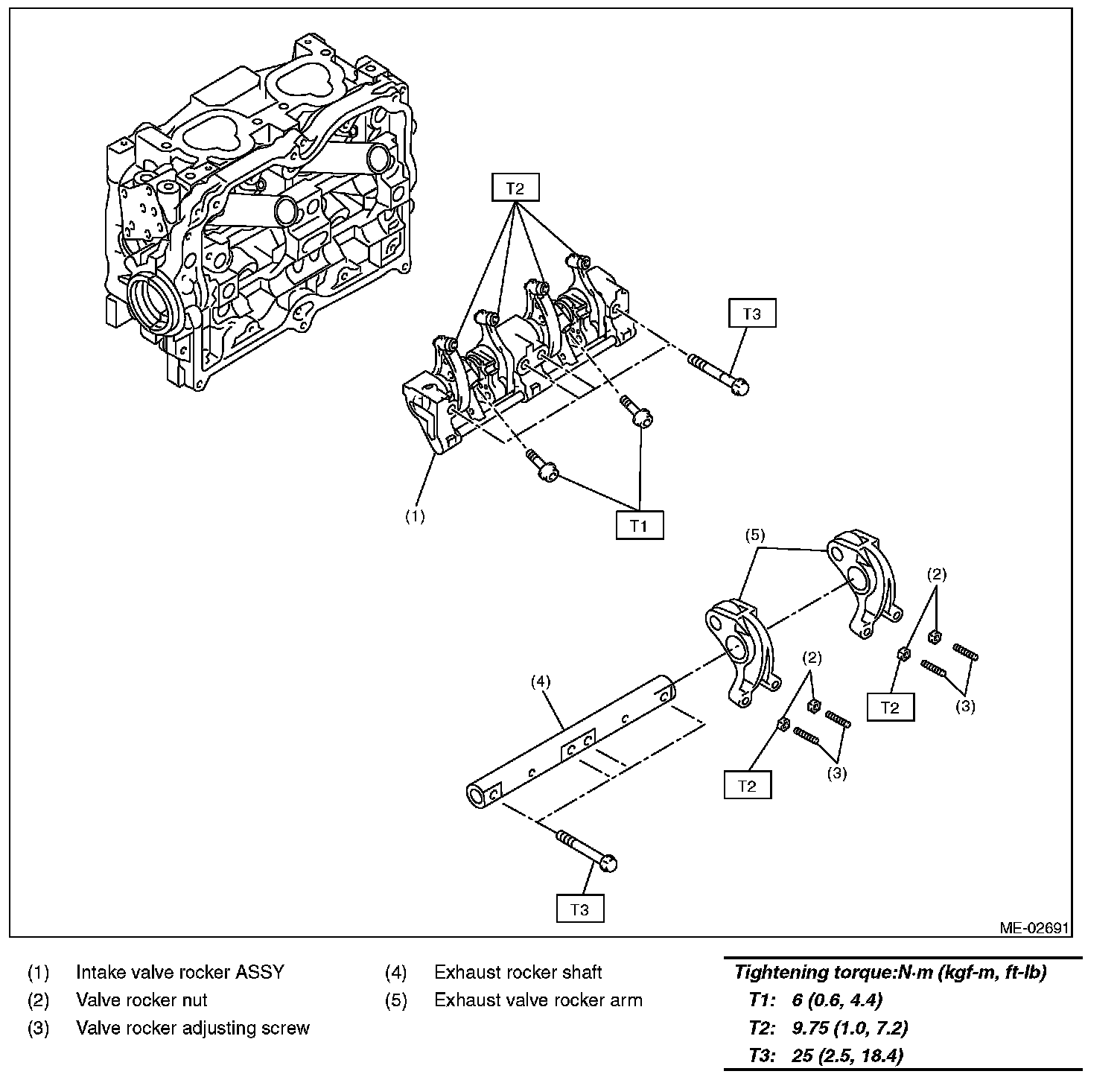

VALVE ROCKER ASSEMBLY

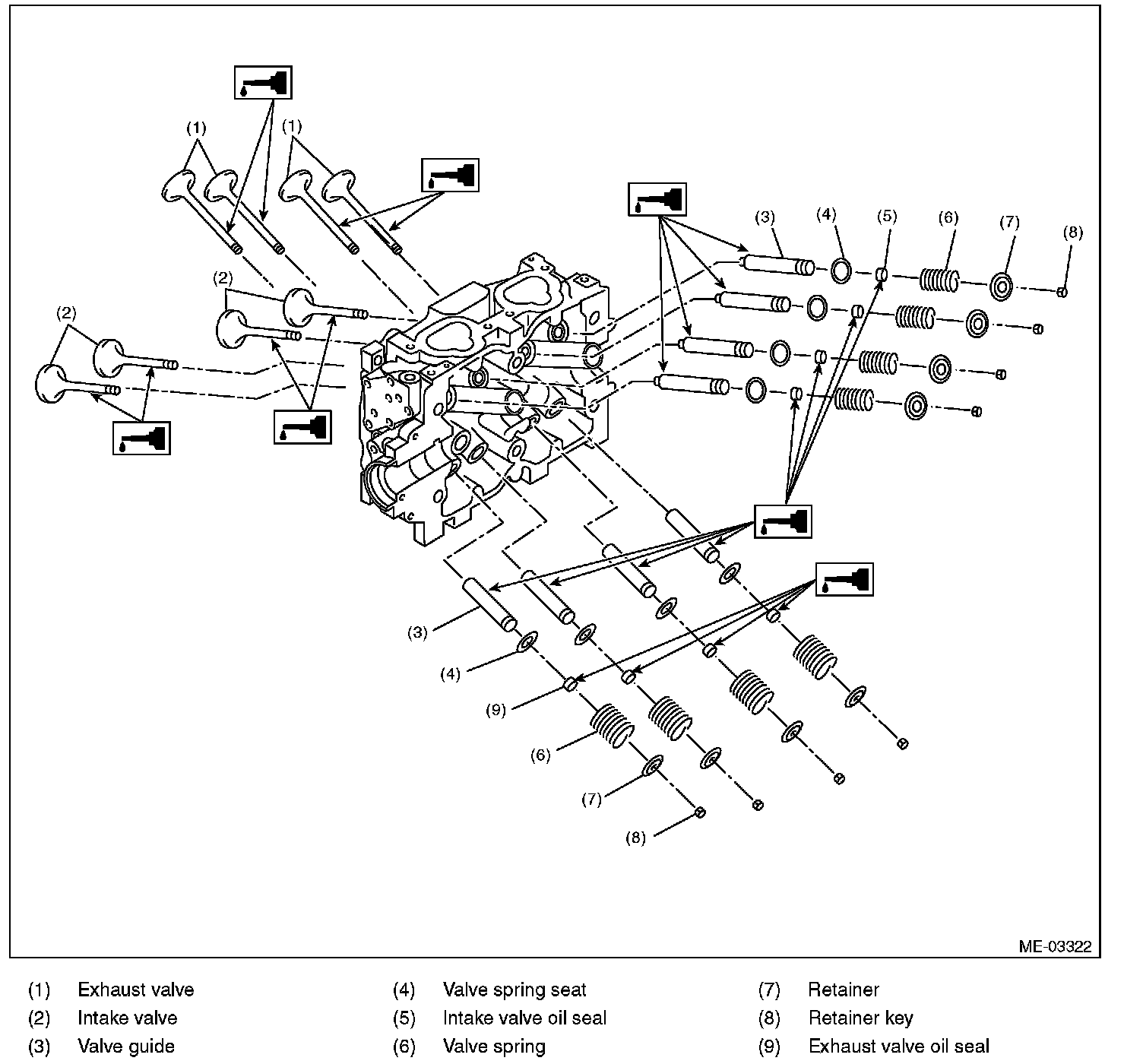

CYLINDER HEAD AND VALVE ASSEMBLY

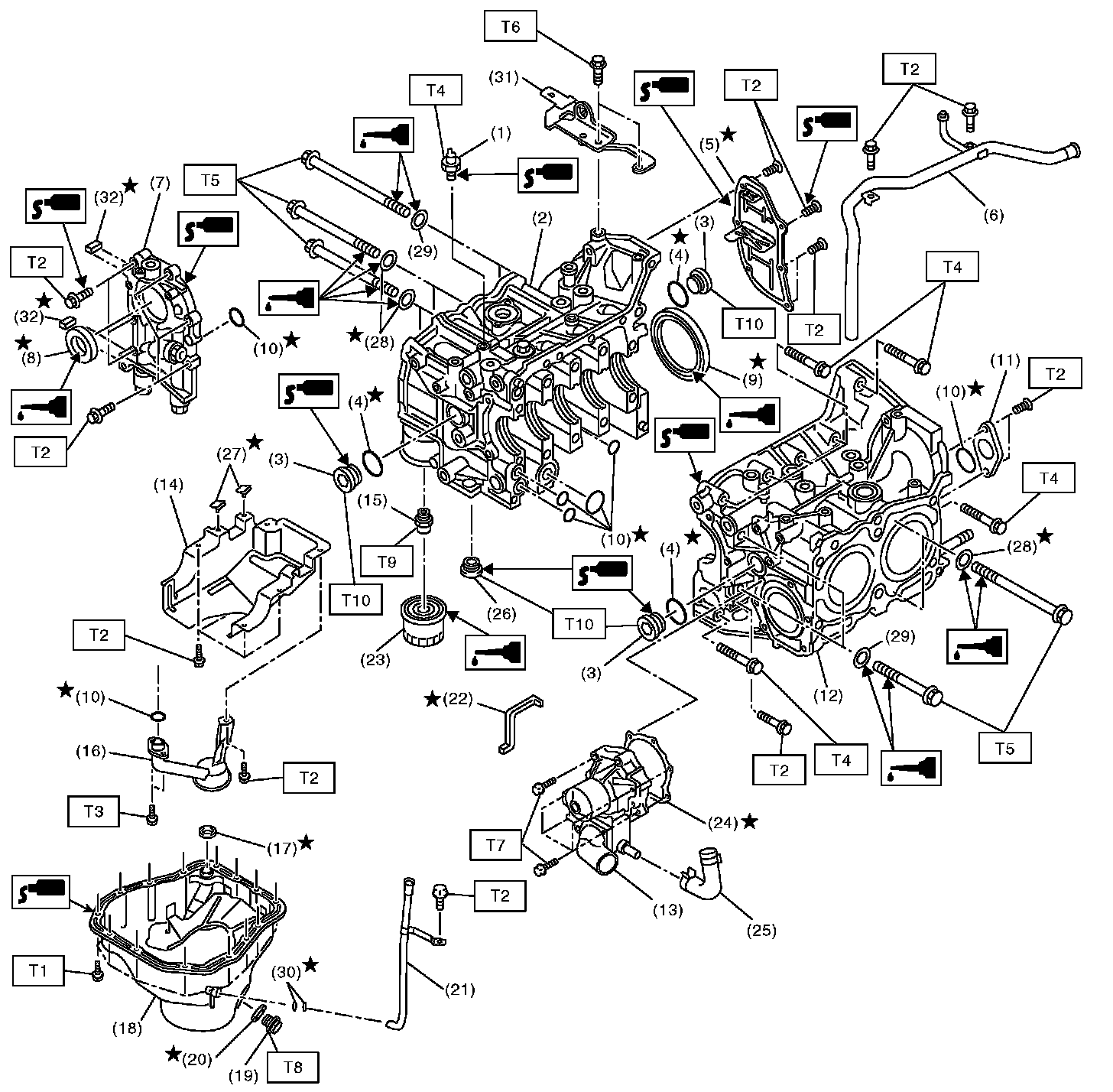

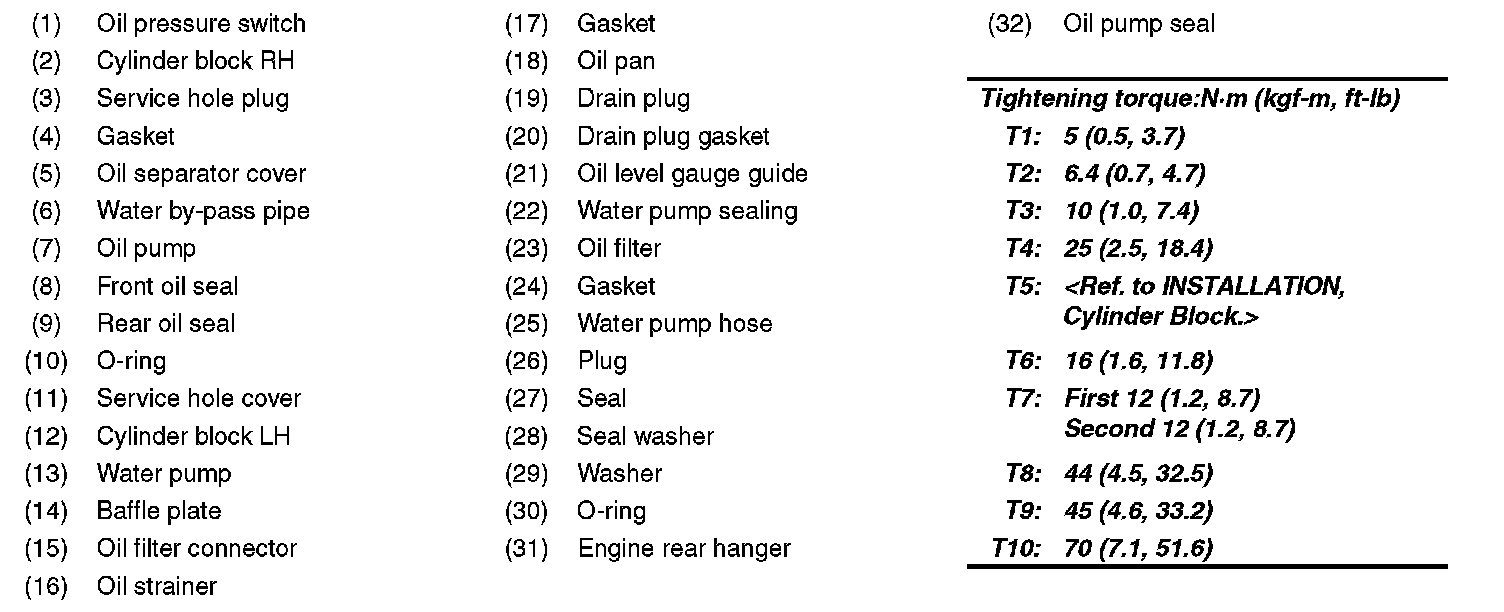

CYLINDER BLOCK

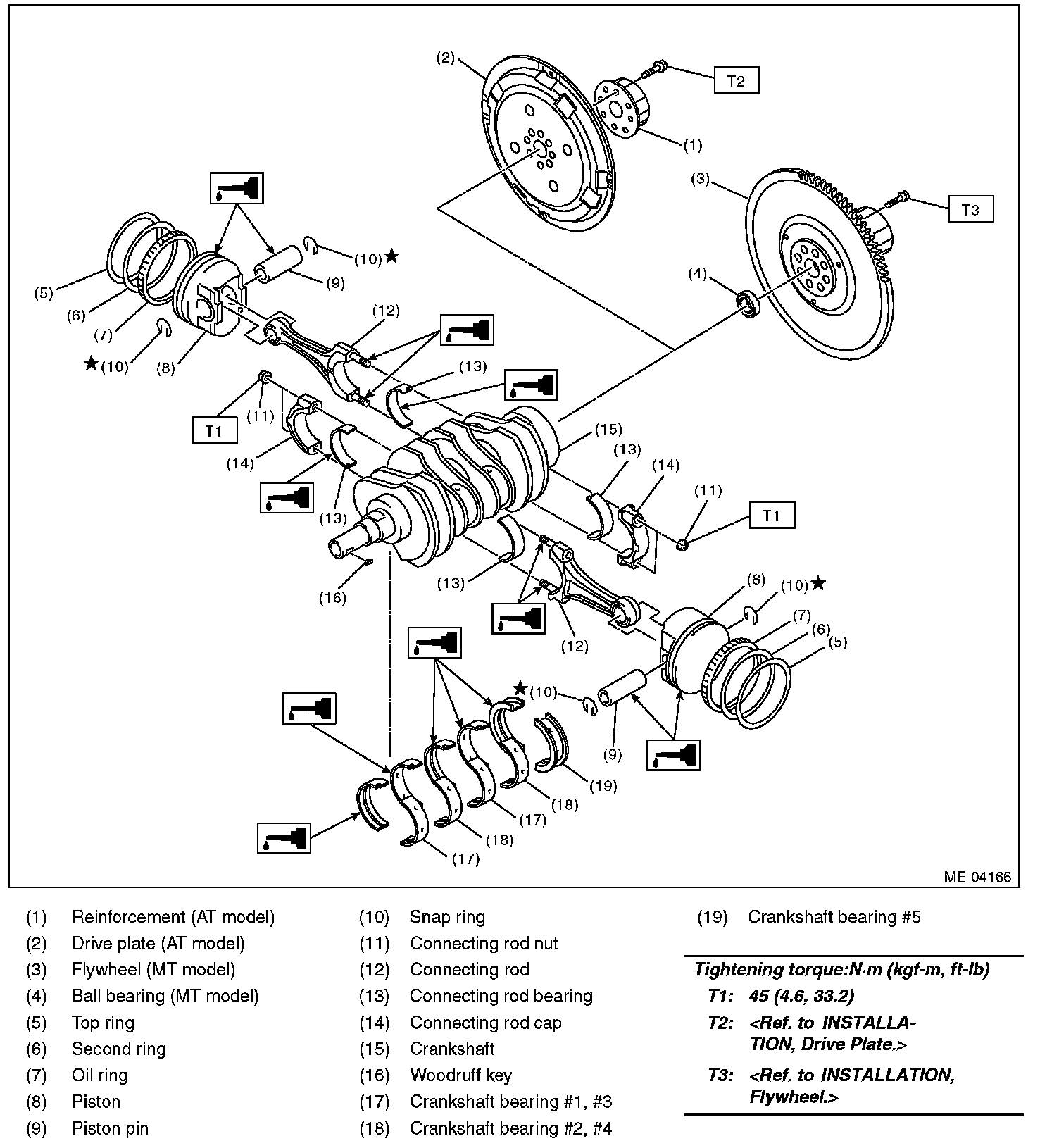

CRANKSHAFT AND PISTON

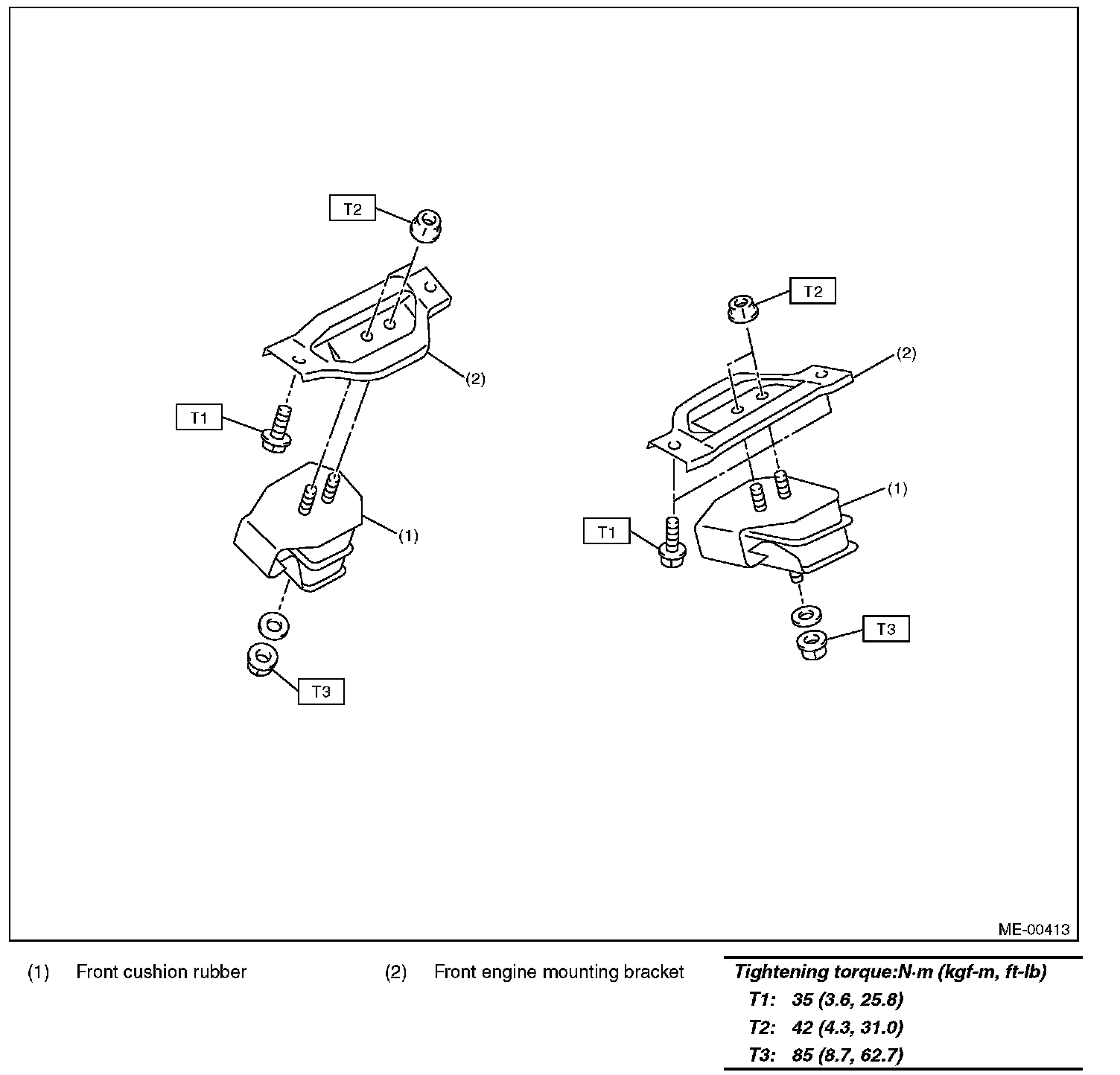

ENGINE MOUNTING
