Read Current Data

Read Current Data

OPERATION

1. On the [[Main Menu]] display screen, select {Each System Check}.
2. On the [[System Selection Menu]] display screen, select the {Integ. unit mode}.
3. On the [[Integ. unit mode failure diag]] display screen, select the {Current Data Display & Save}.
4. Using the scroll key, scroll the display screen up or down until the desired data is shown.

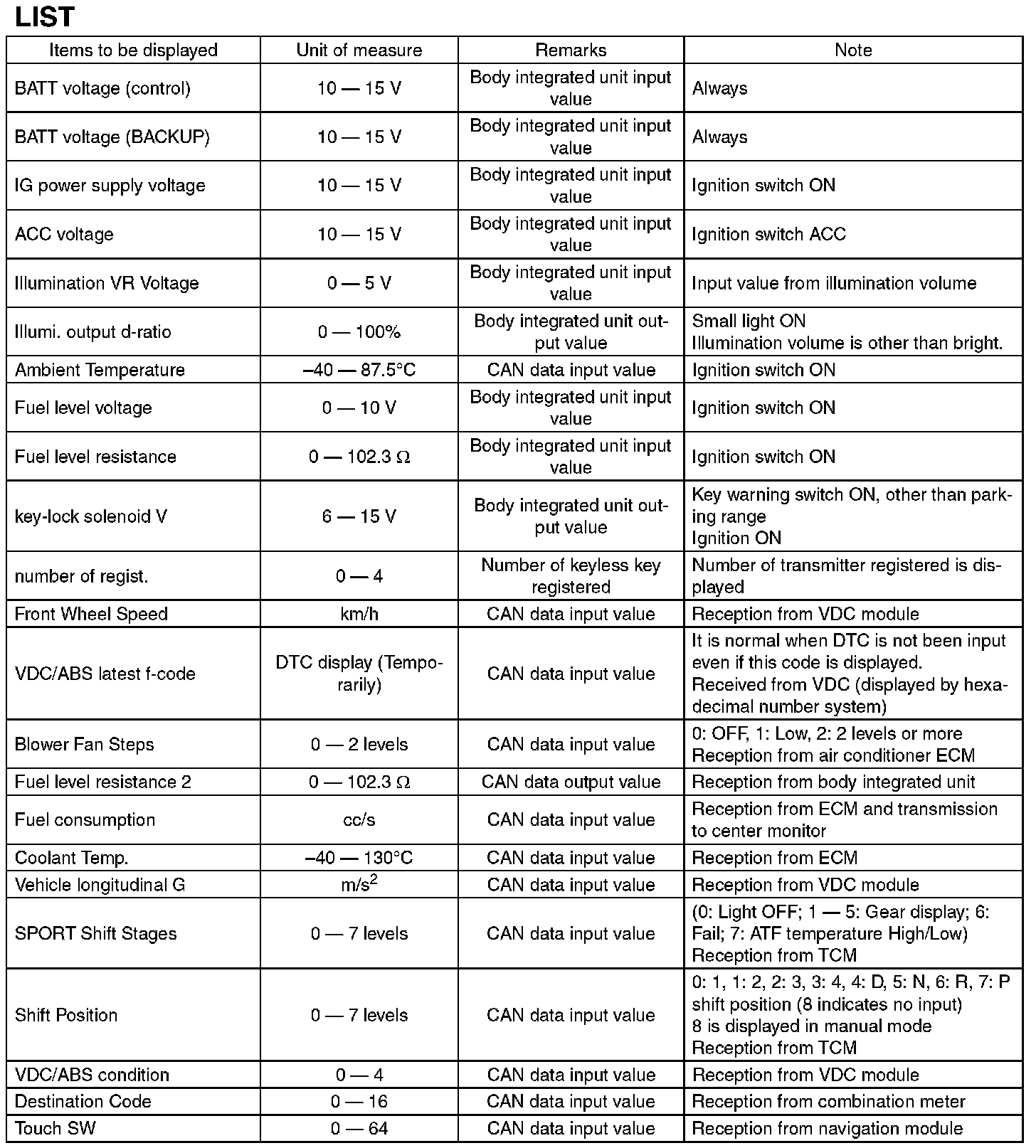

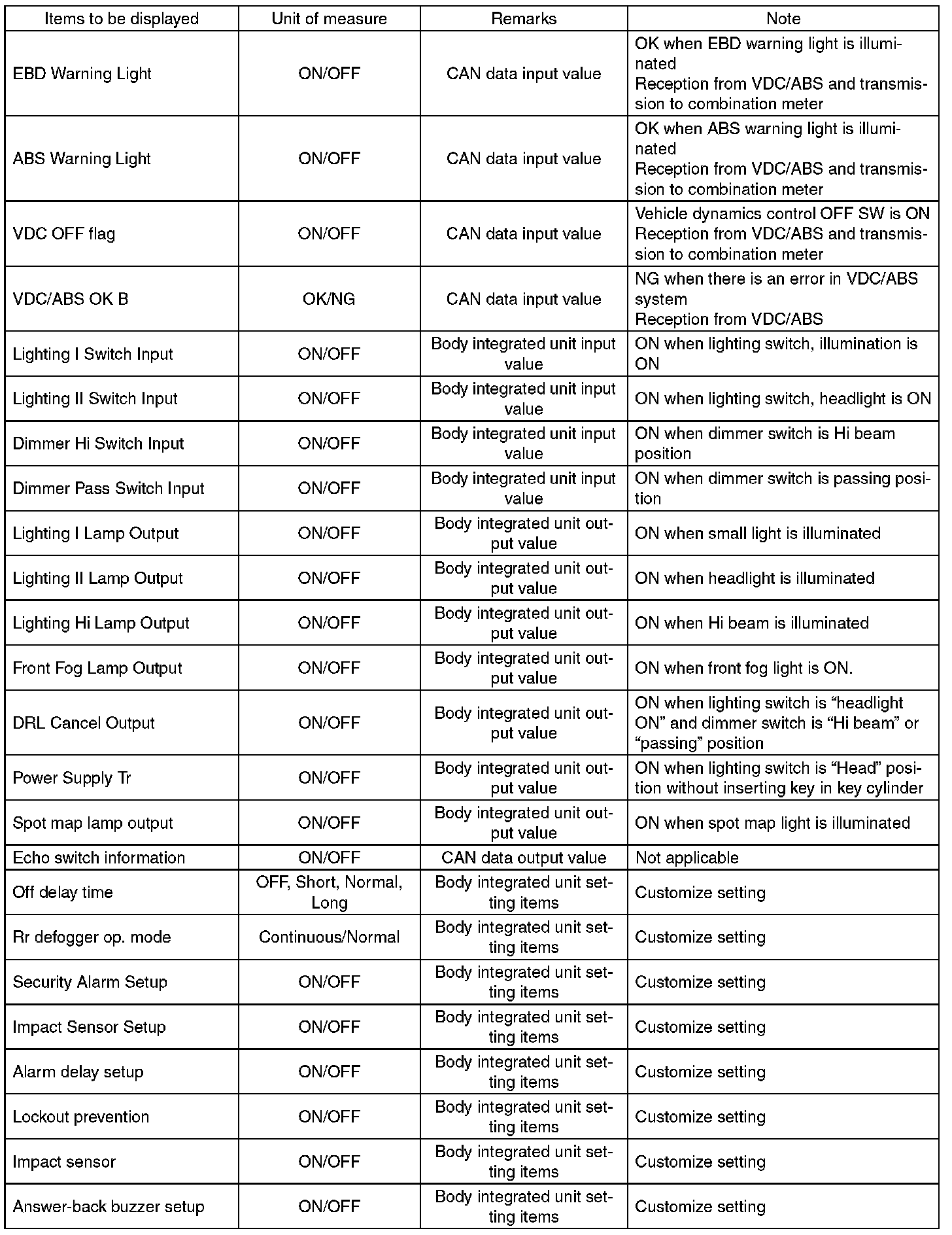

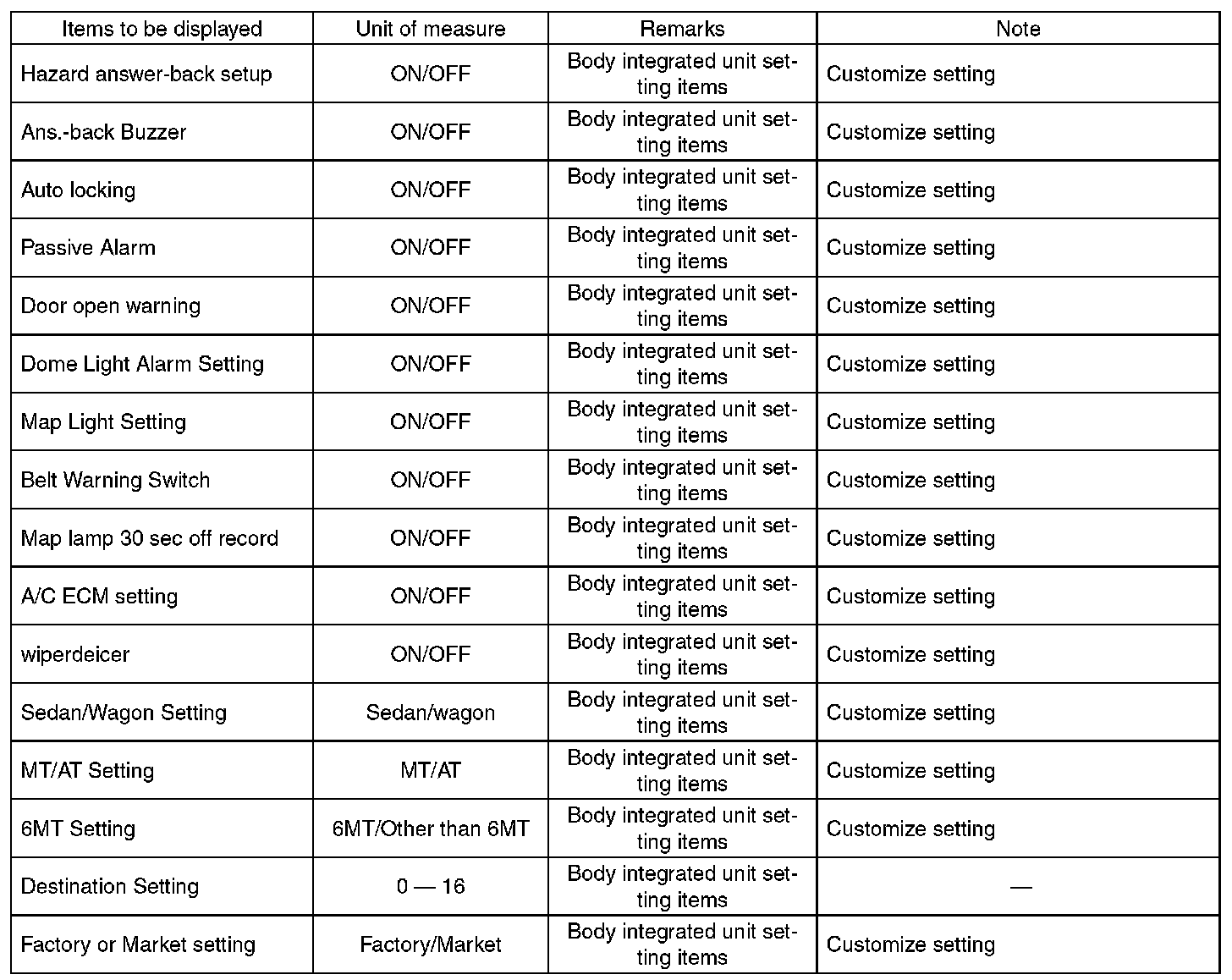

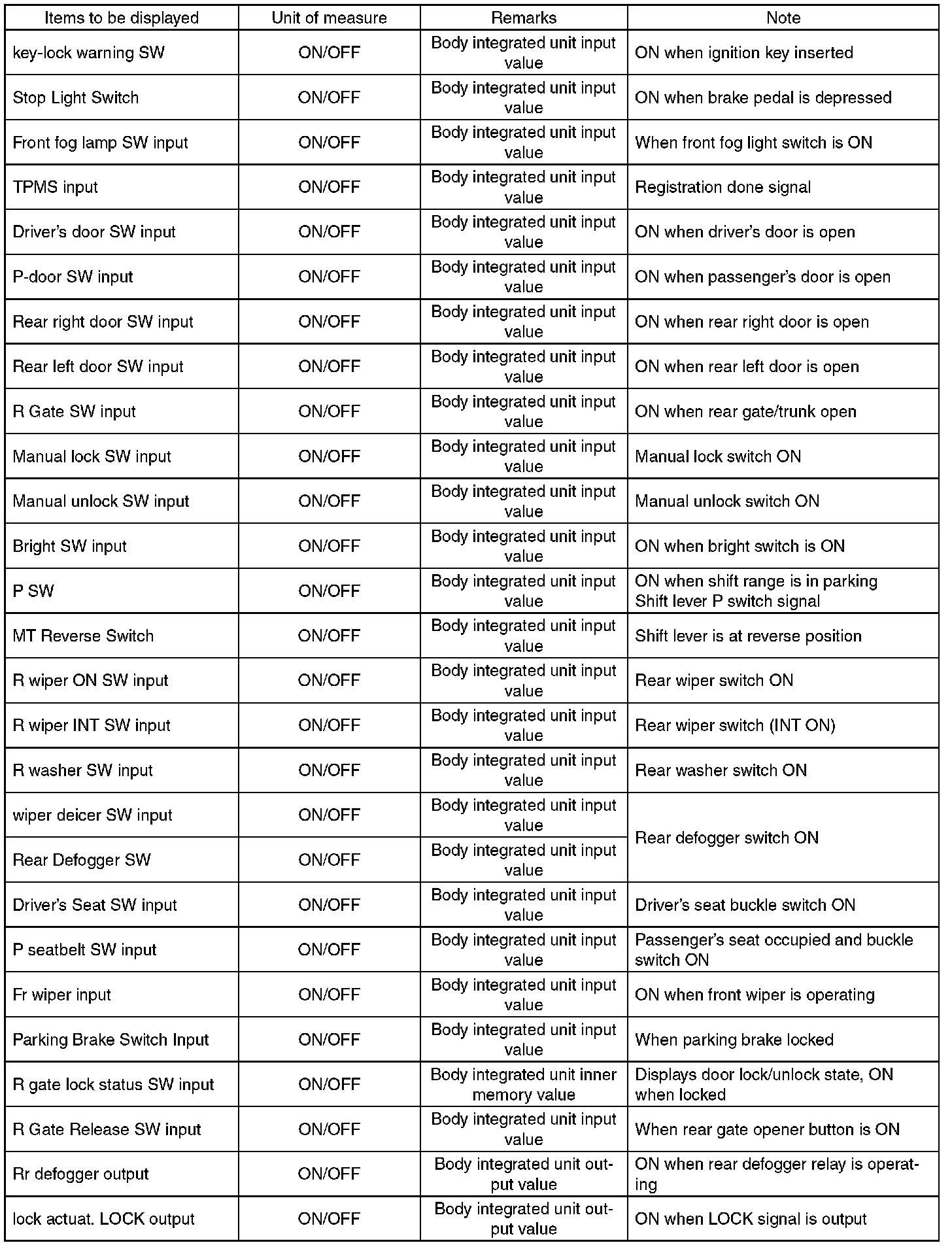

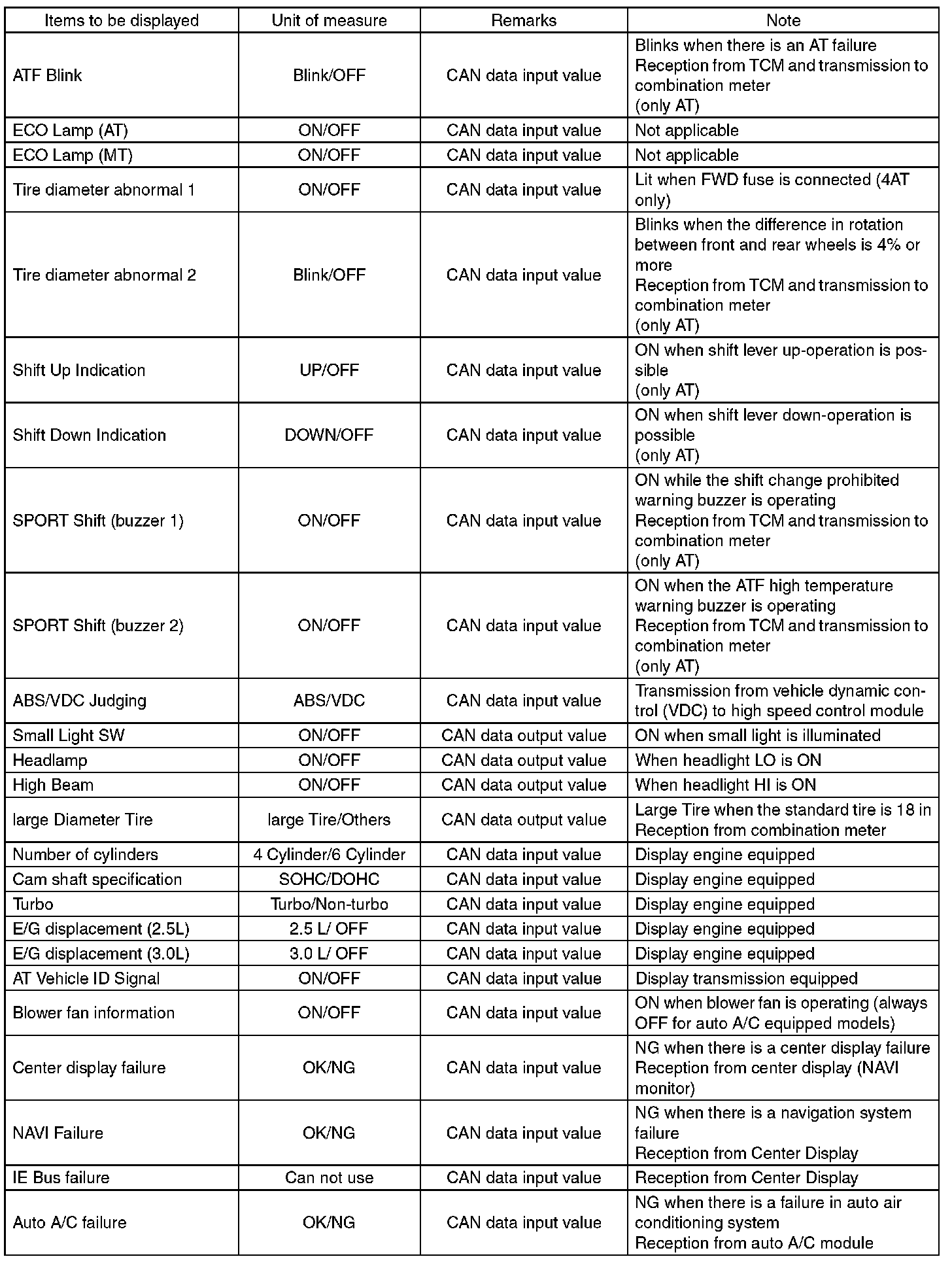

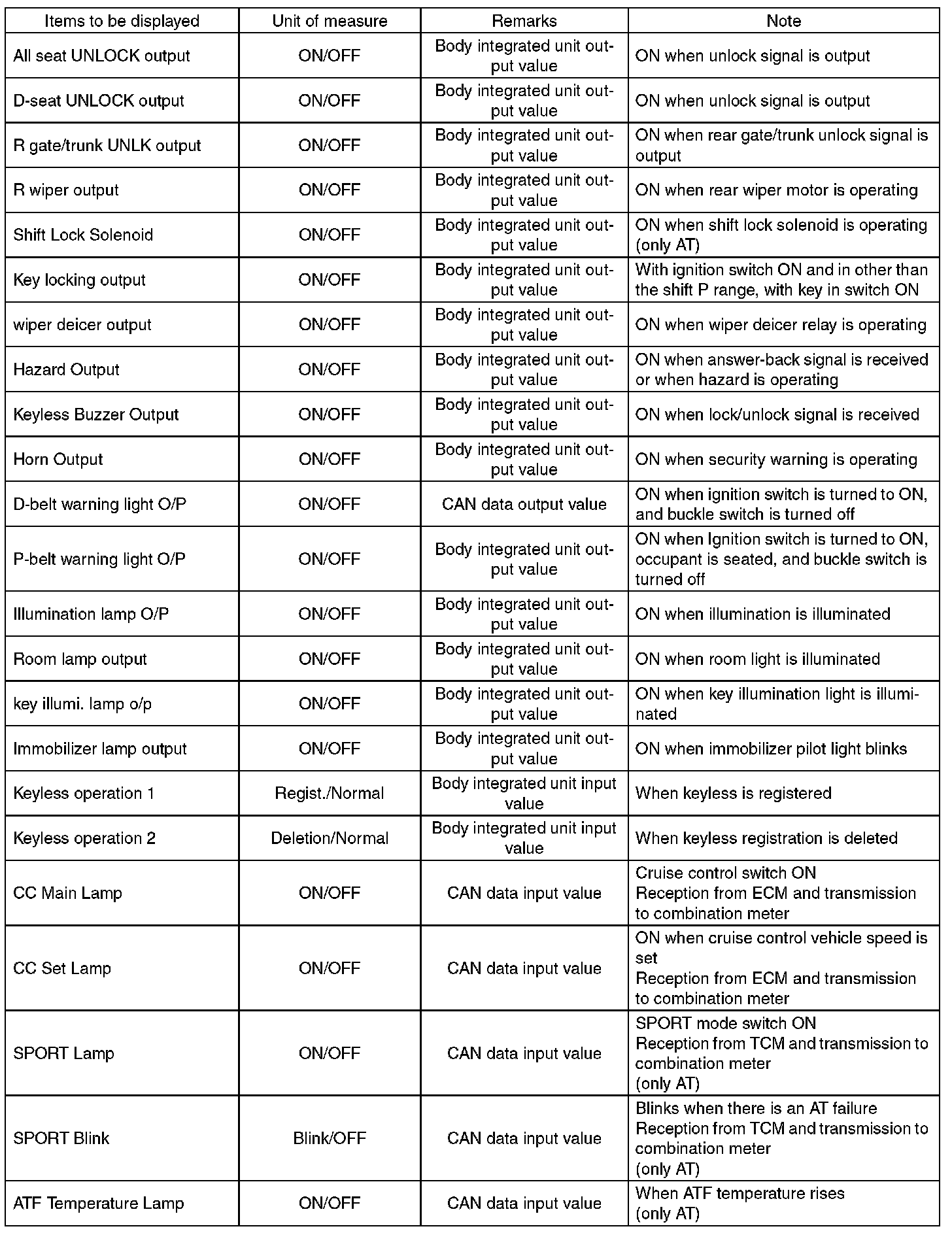

LIST





















NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
