Engine

Electrical Component Location

LOCATION

CONTROL MODULE

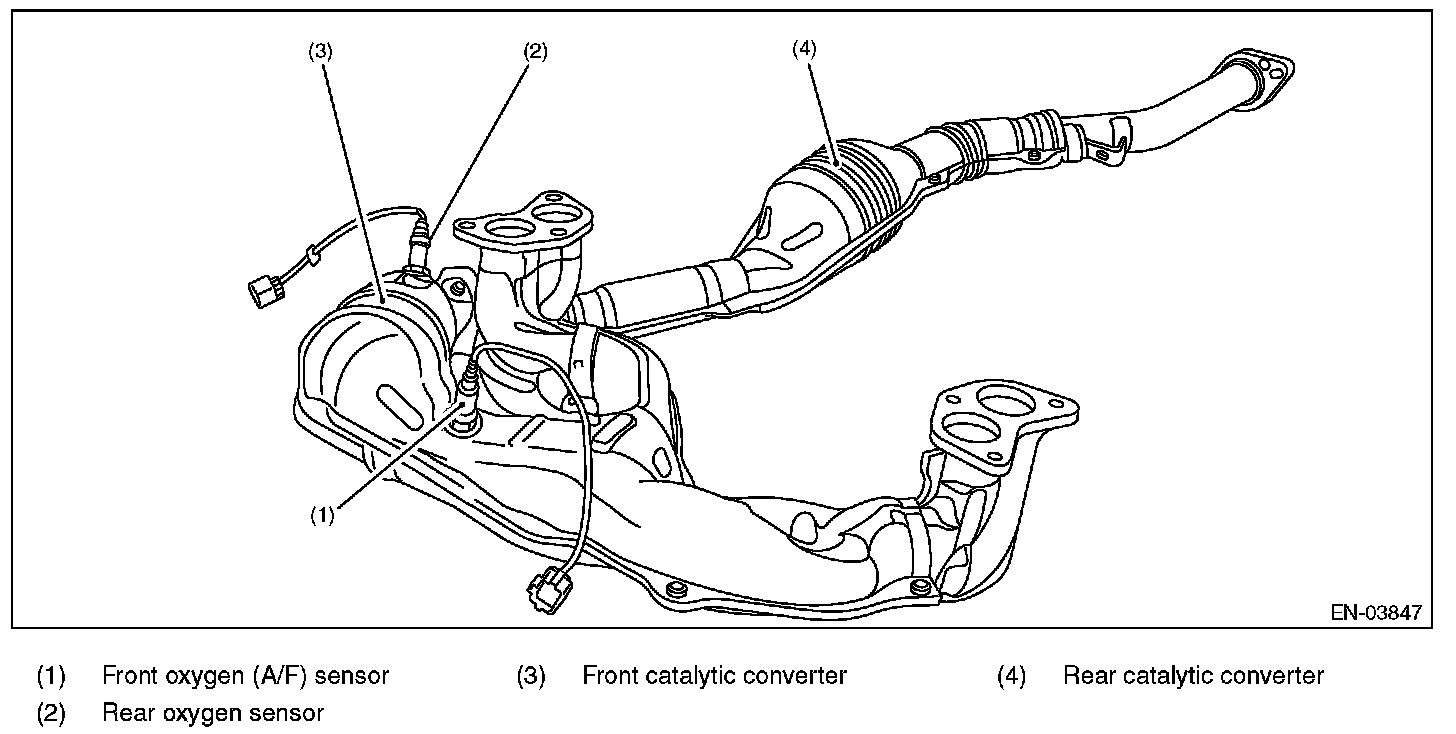

SENSOR

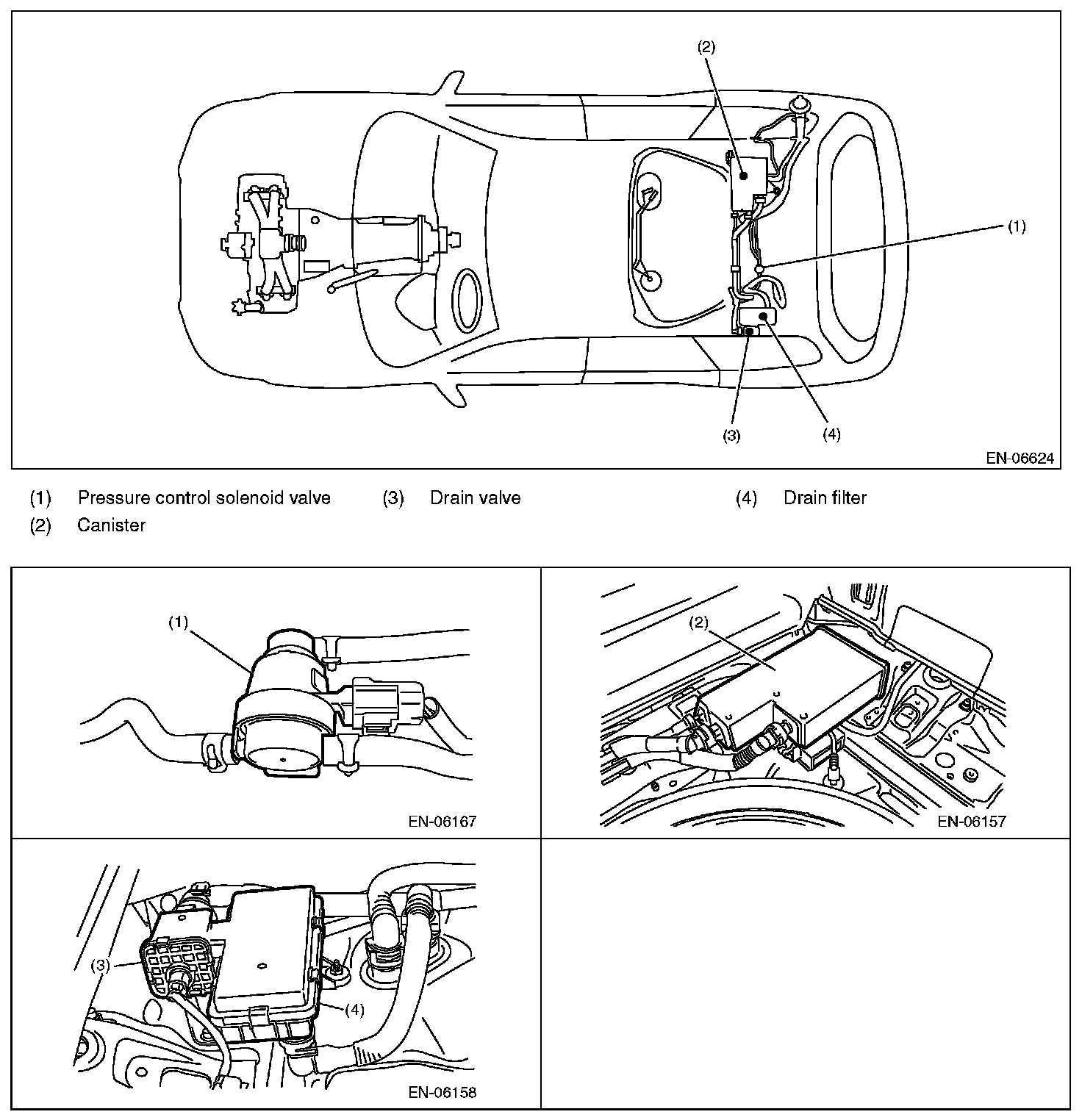

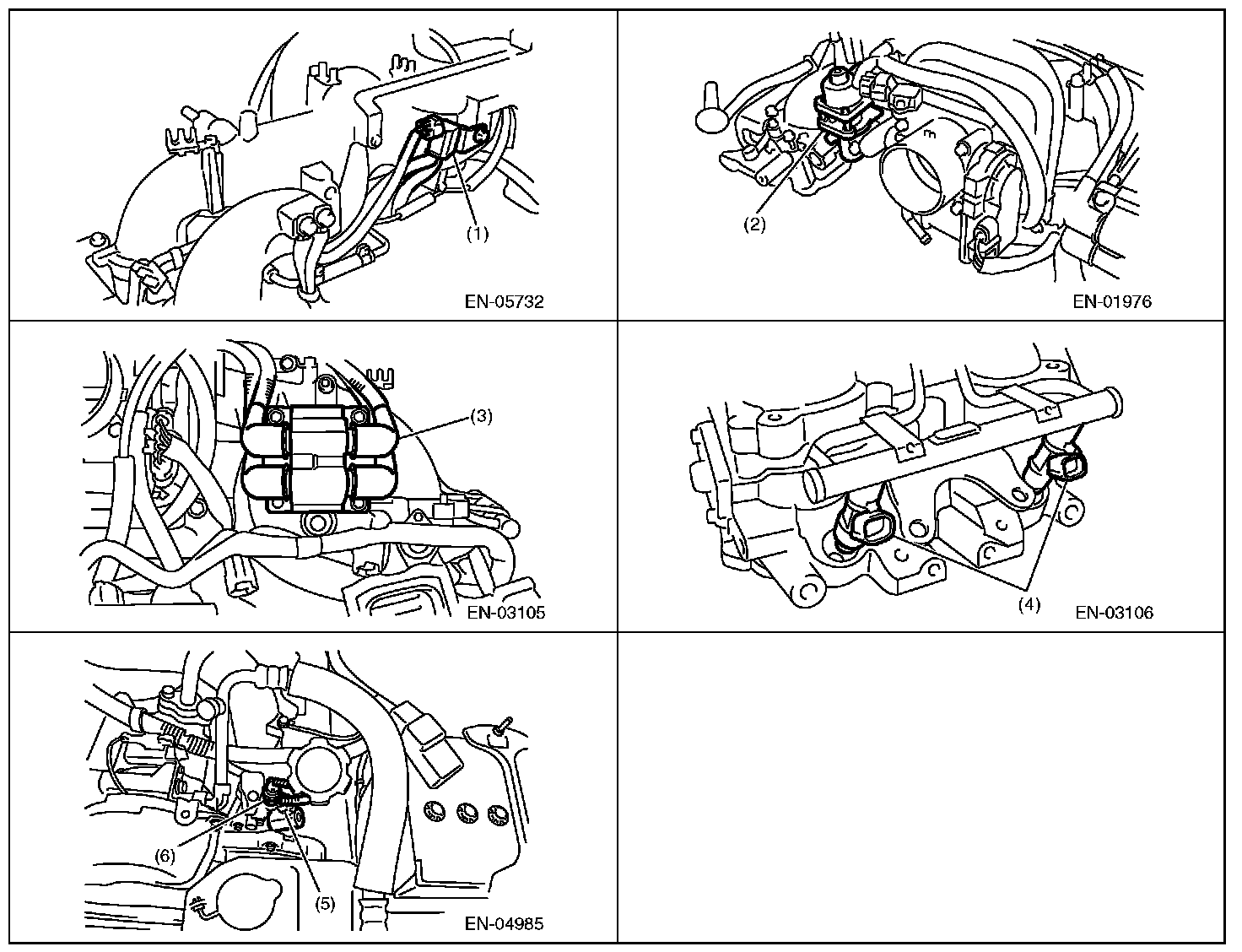

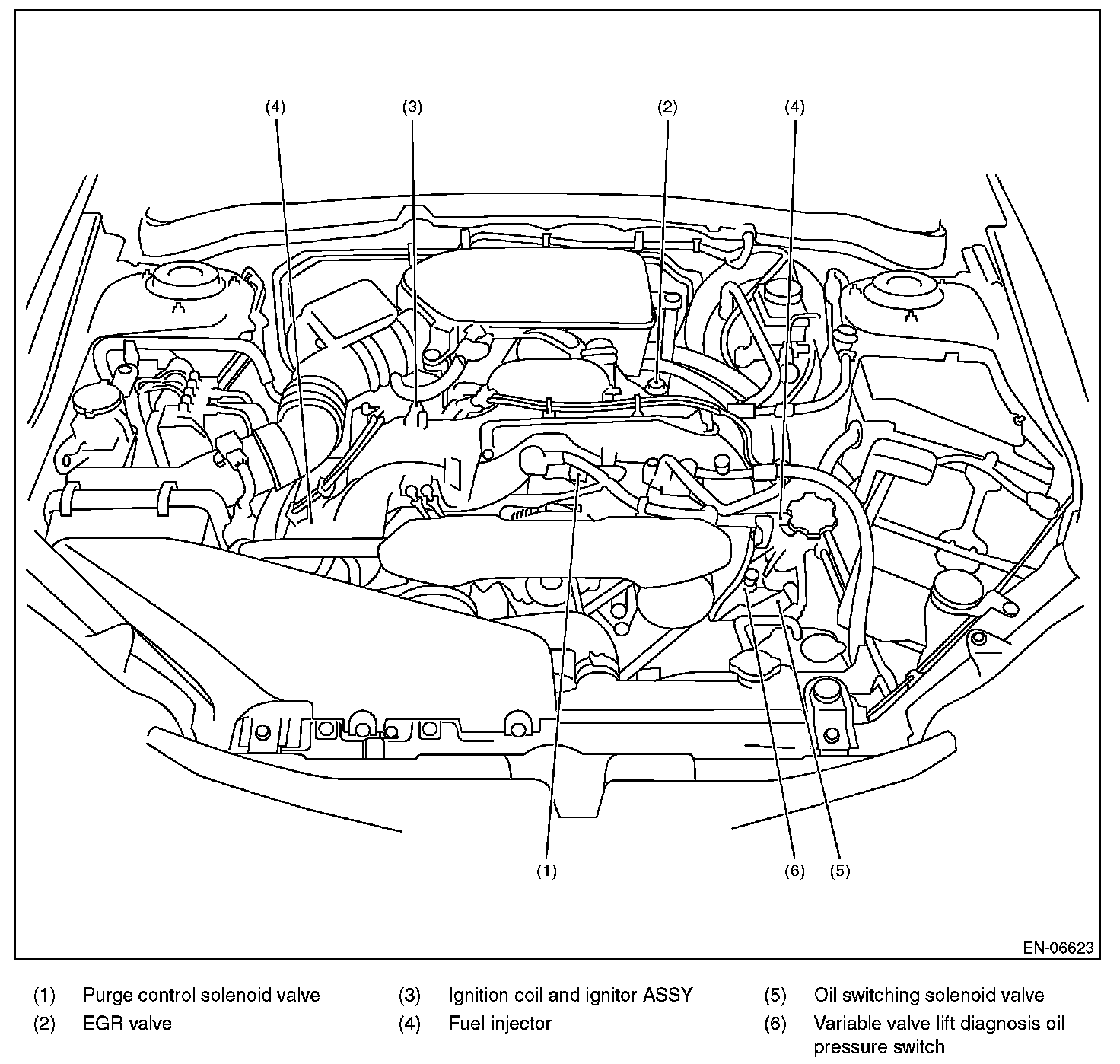

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
