Ignition Control Module: Testing and Inspection

Ignition Coil and Ignitor Assembly

INSPECTION

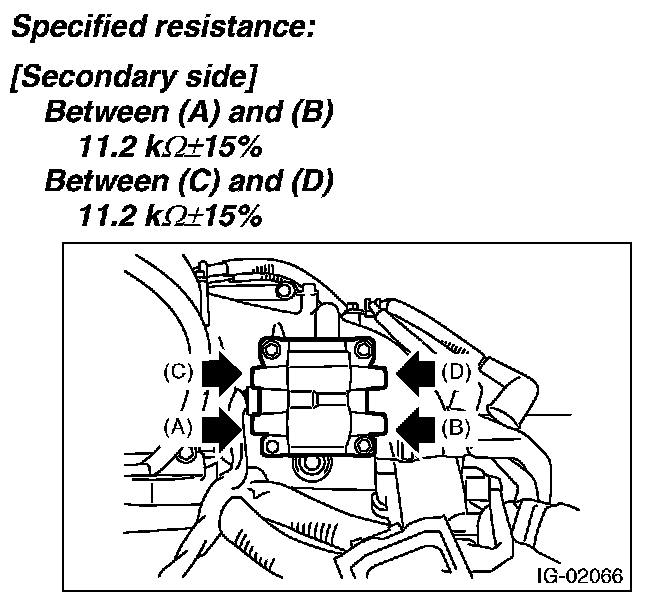

Check the secondary coil resistance by using a circuit tester. Replace if defective.

CAUTION:
- If the resistance is extremely low, it indicates the presence of a short-circuit.
- Ignitor is integrated with the coil. Therefore the resistance of primary side coil cannot be measured.
