Fixed Glass (Outback Model)

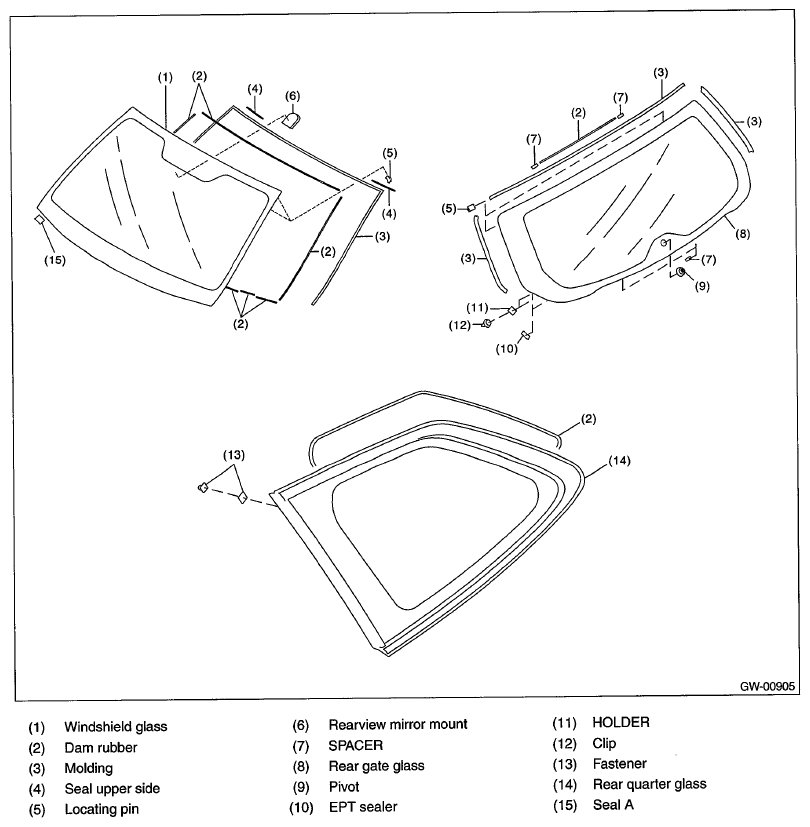

Fig 1: Identifying Glass, Window And Mirror Components (Outback Model)
G06653683Courtesy of SUBARU OF AMERICA, INC.
