Components With Torque Specifications: Mirror

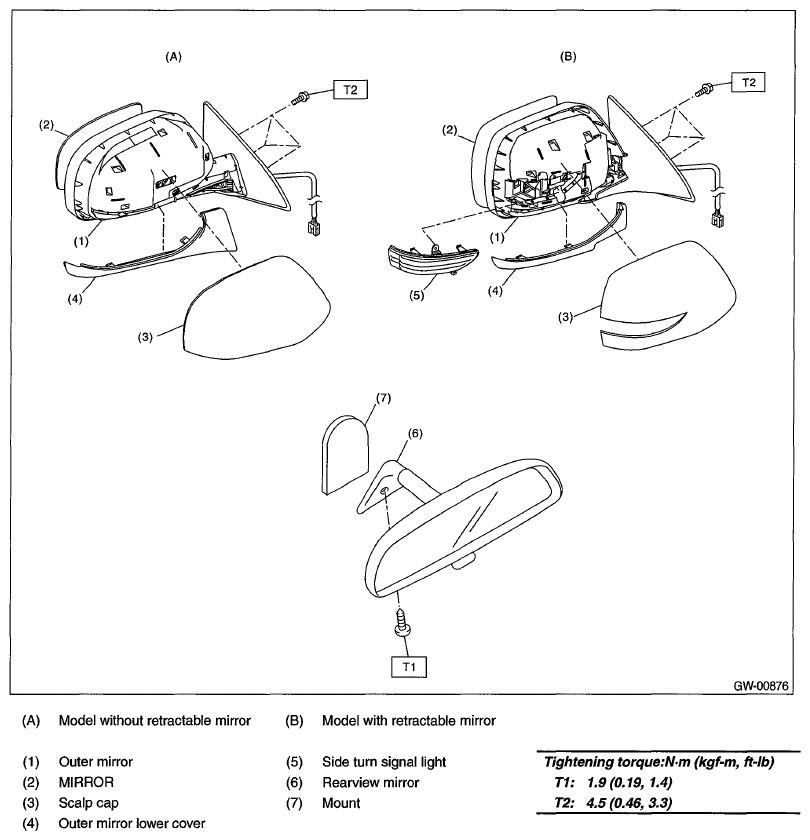

Fig 1: Mirror Replacement Components With Torque Specifications
G06653686Courtesy of SUBARU OF AMERICA, INC.
