Operating Cylinder
WARNING:
This page is about a different variant/trim than selected.
Non-turbo model

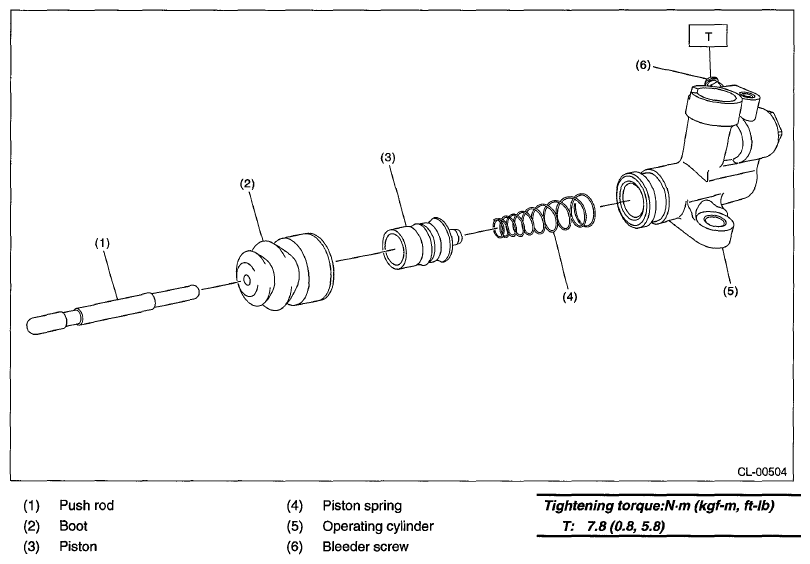

Fig 1: Exploded View Of Master Cylinder - Non-Turbo Models With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Turbo model

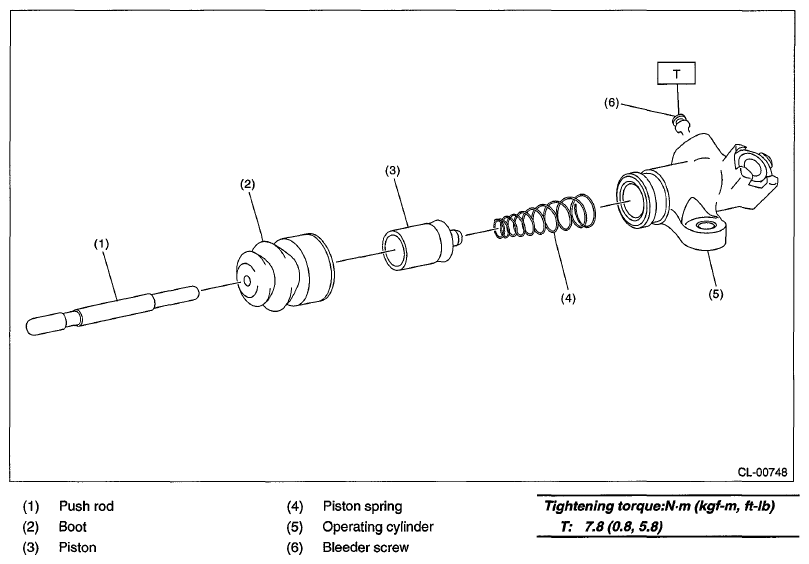

Fig 2: Exploded View Of Master Cylinder - Turbo Models With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
