Shifter CVT
A/T SELECT LEVER

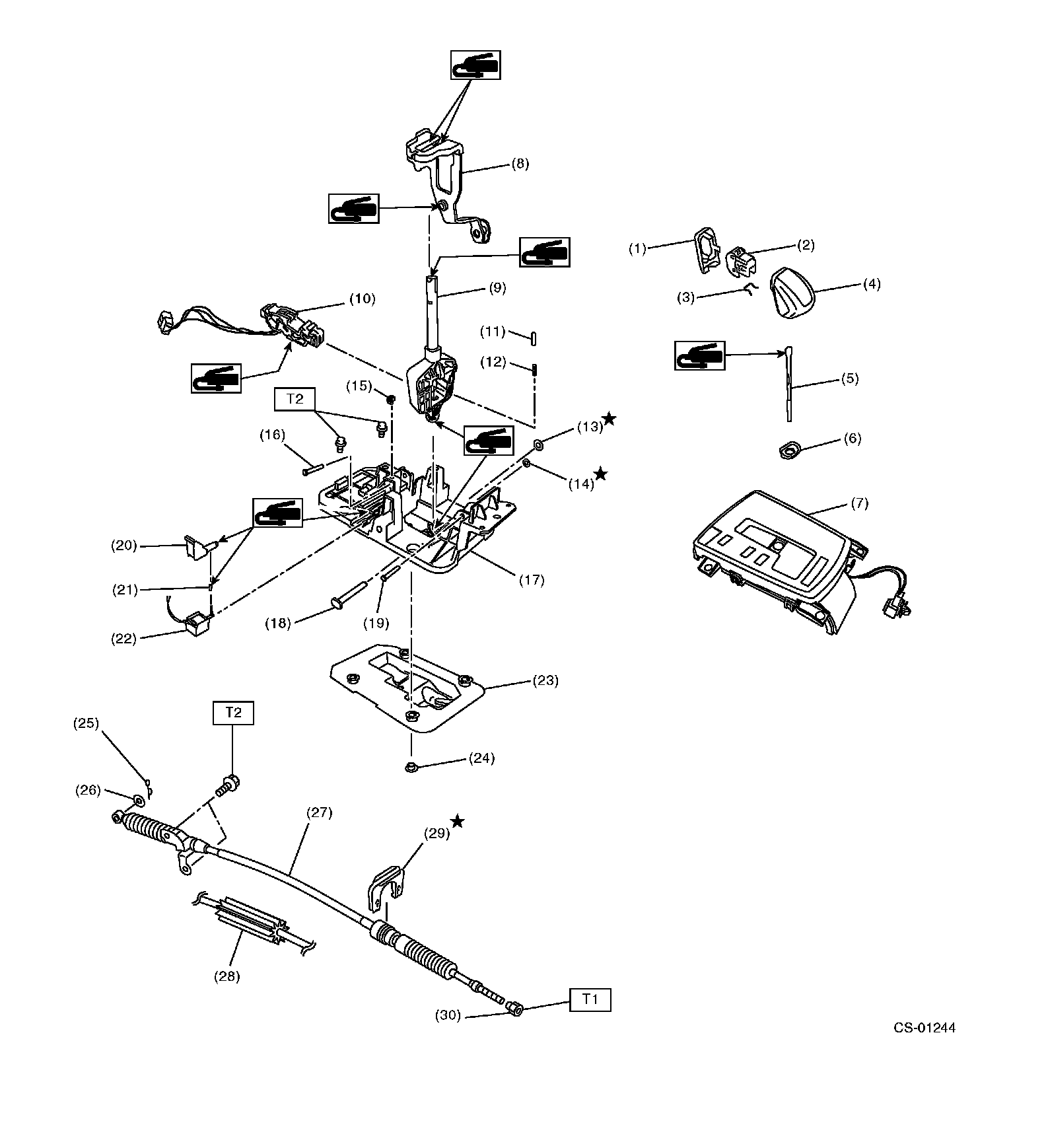

A/T Select Lever Components (Part 1):
A/T Select Lever Components (Part 2):
