Diagnostic Procedure For Subaru Select Monitor Communication

Diagnostic Procedure for Subaru Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS:
Defective harness connector

TROUBLE SYMPTOM
Subaru Select Monitor communication failure

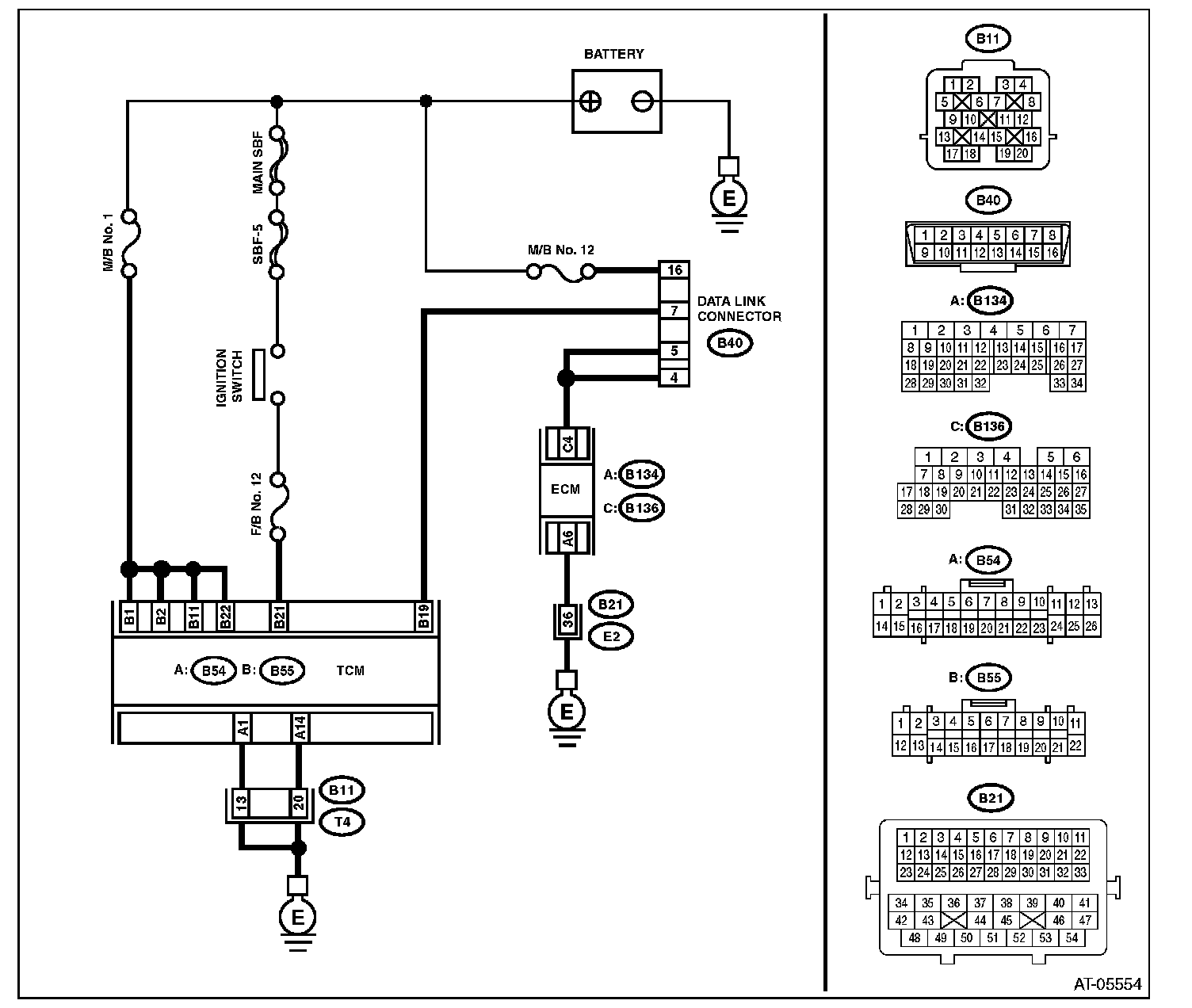

Wiring Diagram:




Step 1:

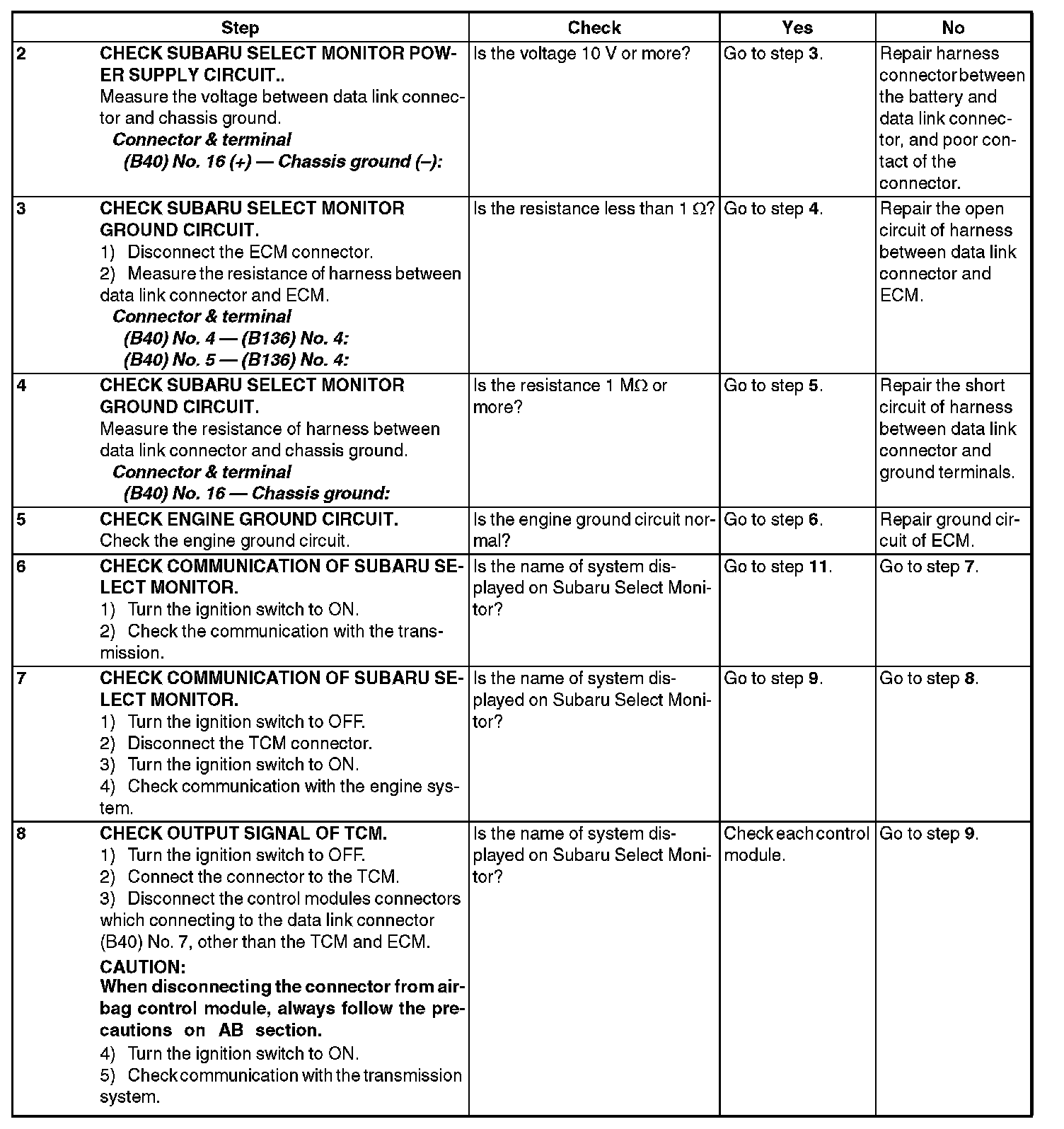

Step 2-8:

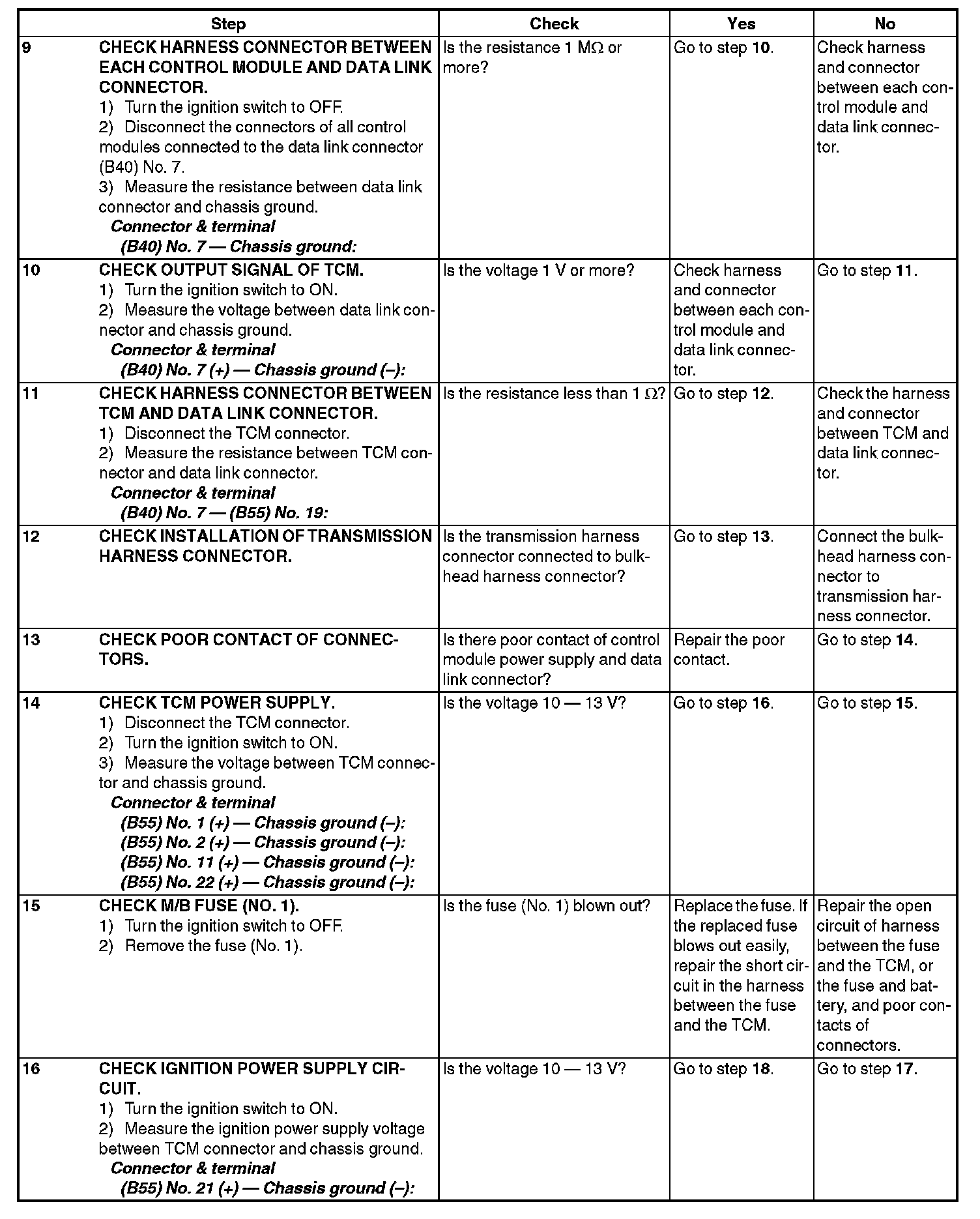

Step 9-16:

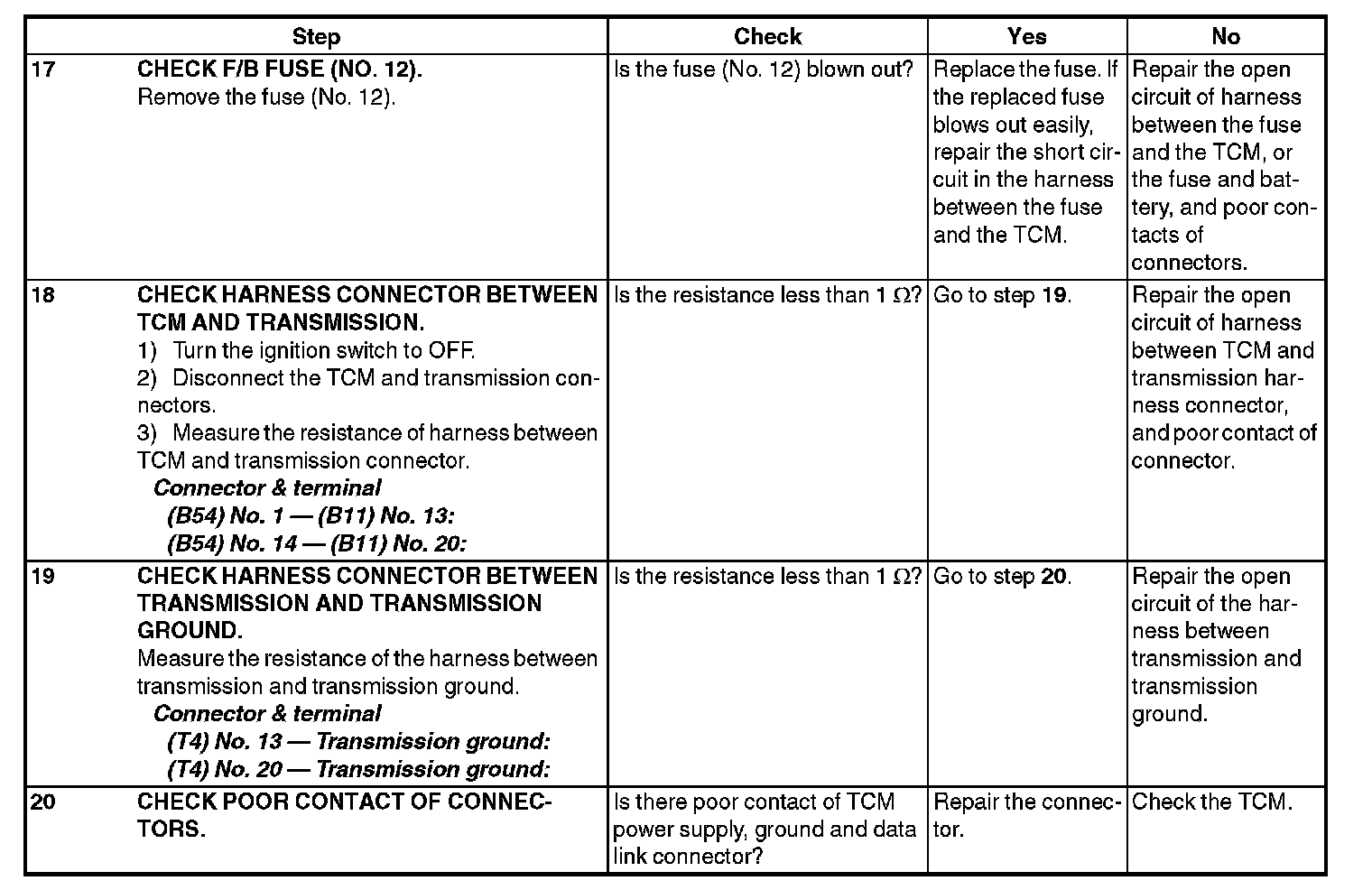

Step 17-20:
