Shift Interlock Switch: Locations

AT Shift Lock Control System

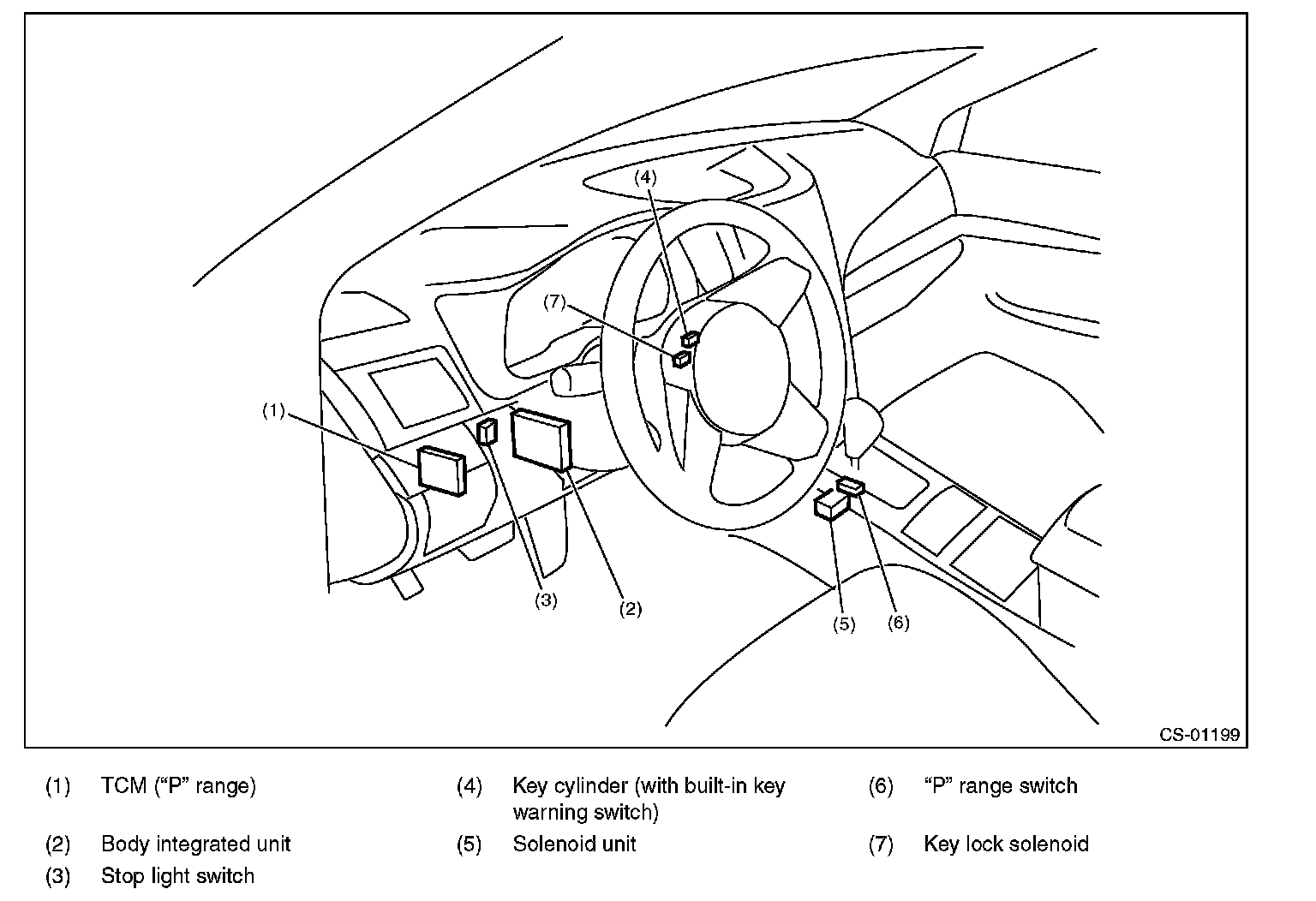

A/T Shift Lock Control System Components (Part 1):

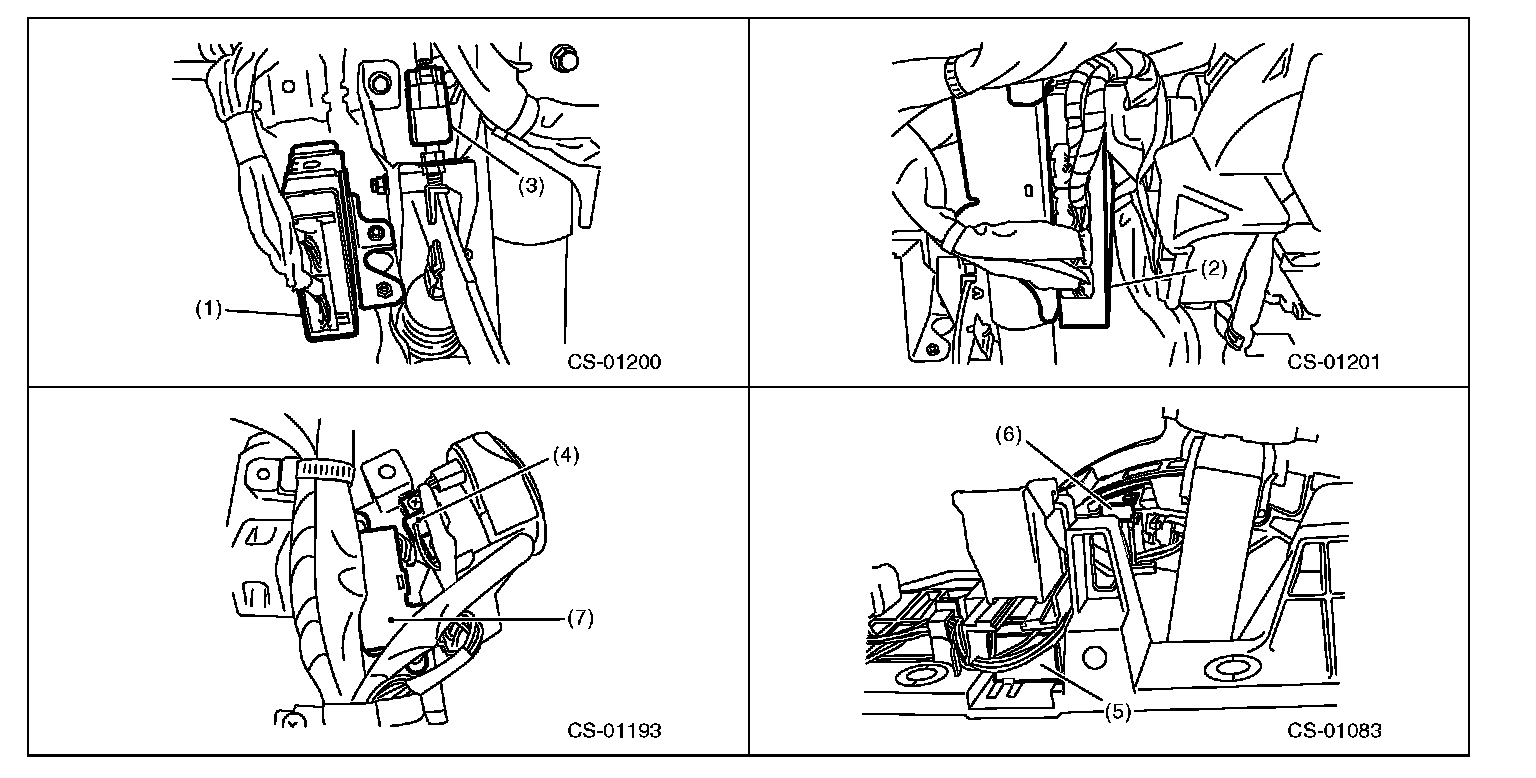

A/T Shift Lock Control System Components (Part 2):
