Components With Torque Specifications: Generator

2.5 L model

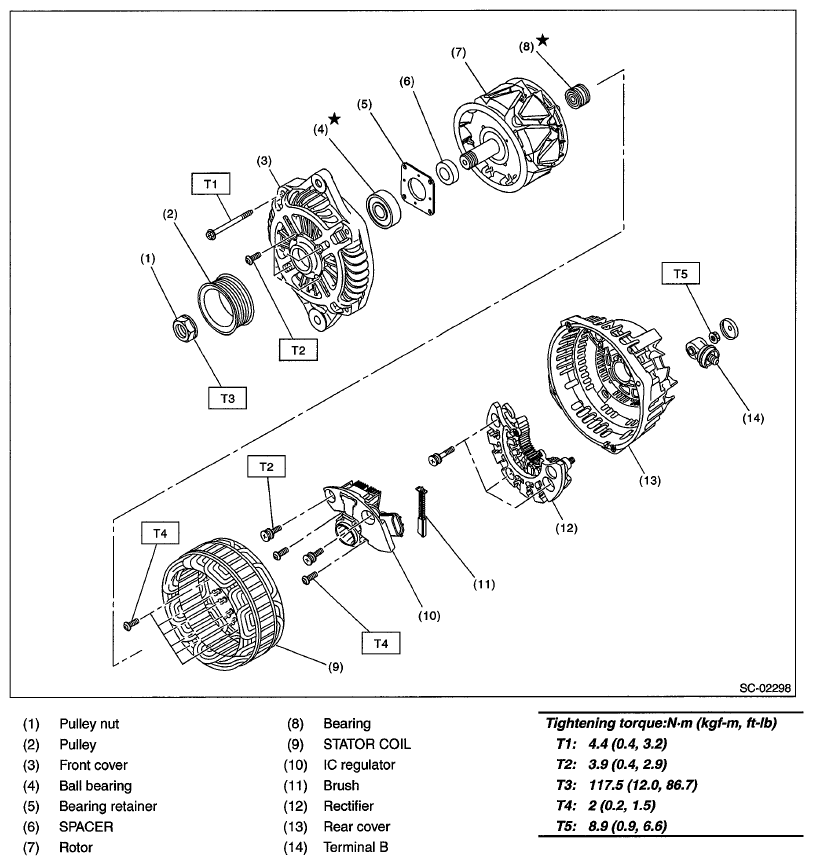

Fig 1: Generator Components With Torque Specifications (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.

3.6 L model

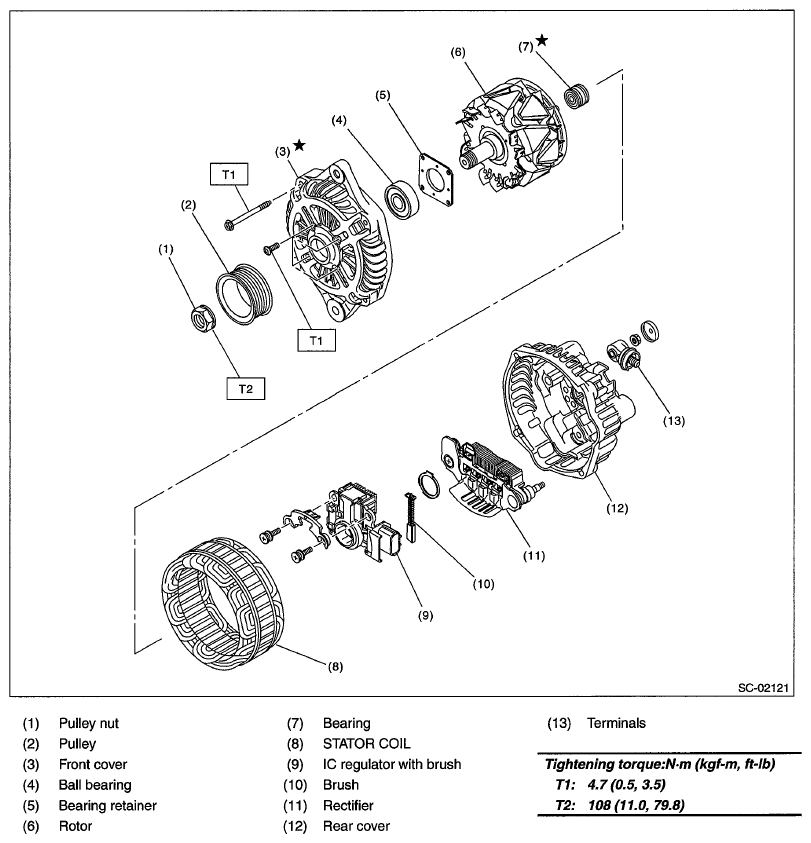

Fig 2: Generator Components With Torque Specifications (3.6 L Model)
Courtesy of SUBARU OF AMERICA, INC.
