VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes

Check the condition of connection and settlement of connector.
Check the identification label of the VDCCM&H/U.
Refer to "SPECIFICATION" for identification label. Ref. to SPECIFICATION , General Description.

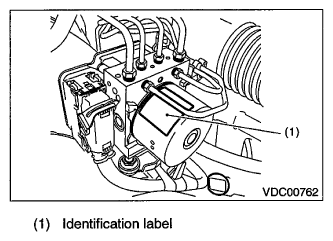

Fig 1: Identifying Identification Label
Courtesy of SUBARU OF AMERICA, INC.
