Front Axle

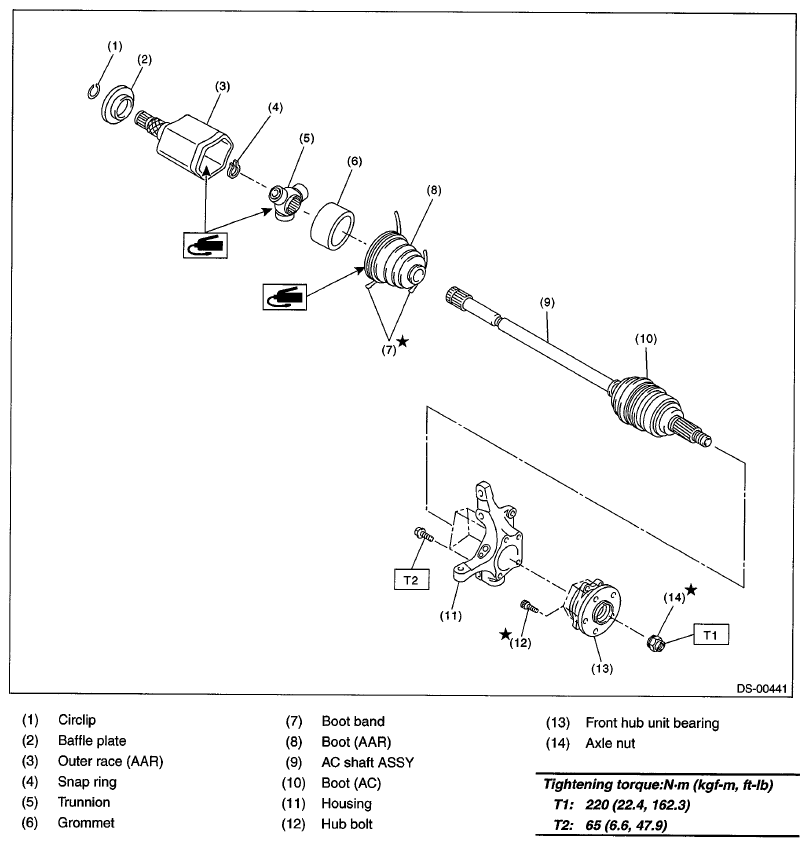

Fig 1: Exploded View Of Front Axle Shaft Replacement Components With Torque Specifications
G06650257Courtesy of SUBARU OF AMERICA, INC.
