Components With Torque Specifications: Starter

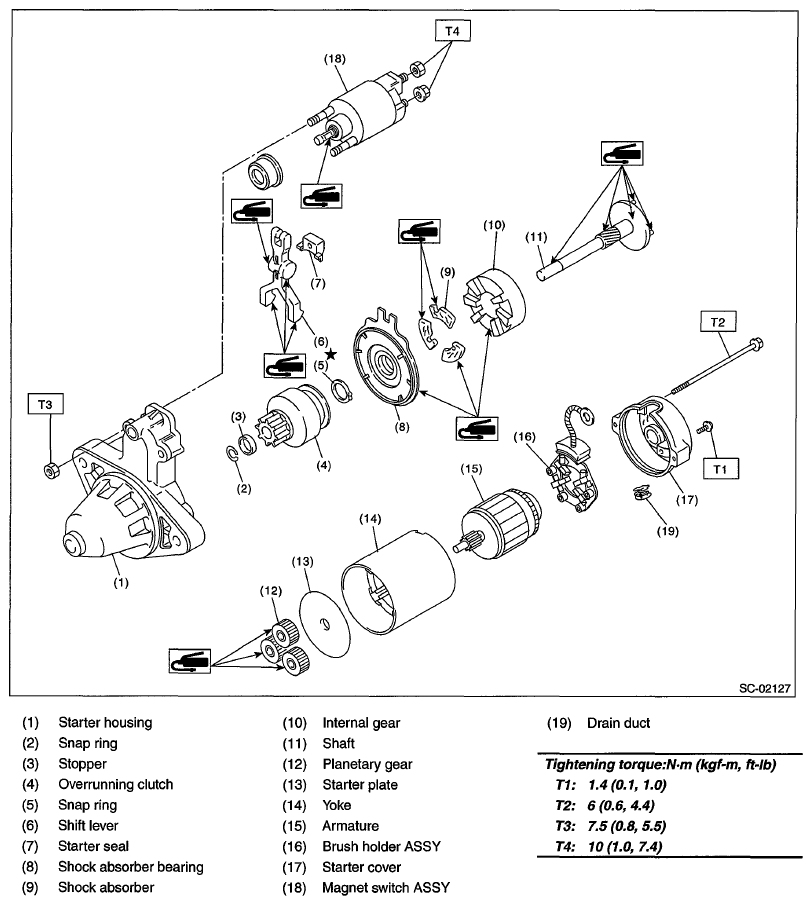

Fig 1: Starter Components With Torque Specifications
G06648619Courtesy of SUBARU OF AMERICA, INC.
