Oil Pump

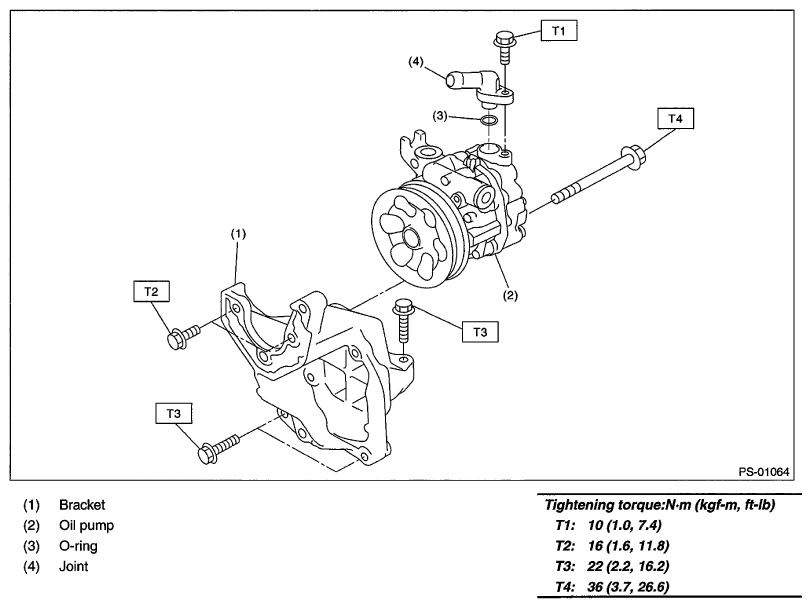

Fig 1: Oil Pump Replacement Components With Torque Specifications - H4 Non-Turbo Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 16 (1.6, 11.8)

T3: 22 (2.2, 16.2)

T4: 36 (3.7, 26.6)

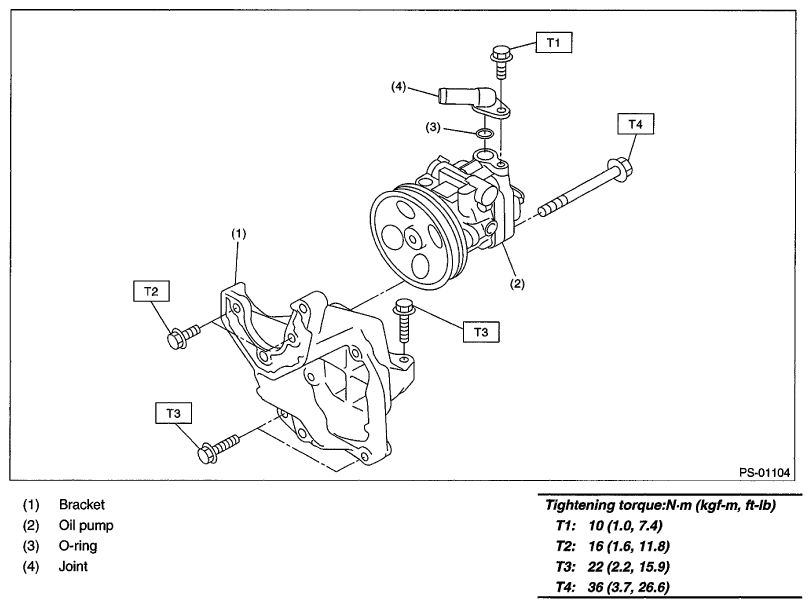

Fig 2: Oil Pump Replacement Components With Torque Specifications - H4 Turbo Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0,7.4)

T2: 16 (1.6,11.8)

T3: 22 (2.2, 15.9)

T4: 36 (3.7,26.6)

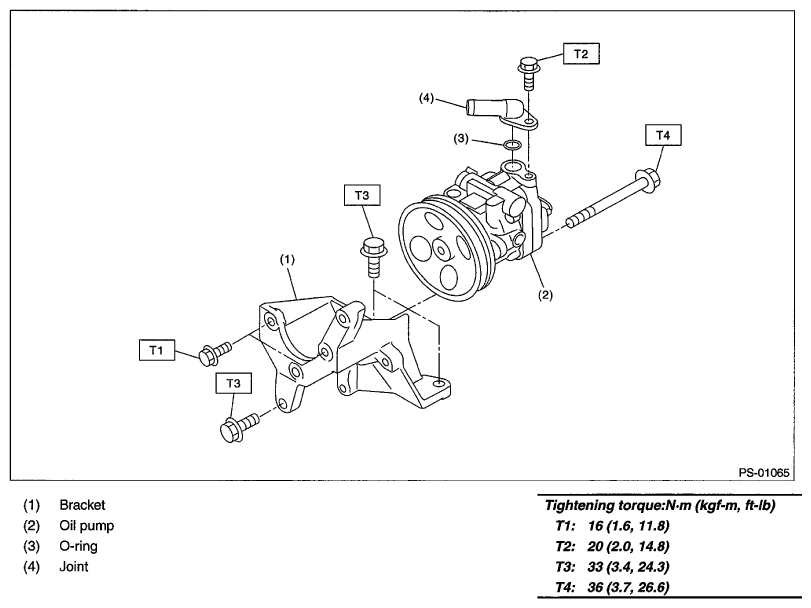

Fig 3: Oil Pump Replacement Components With Torque Specifications - H6 Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6,11.8)

T2: 20 (2.0, 14.8)

T3: 33 (3.4, 24.3)

T4: 36 (3.7, 26.6)
