Steering Wheel And Column

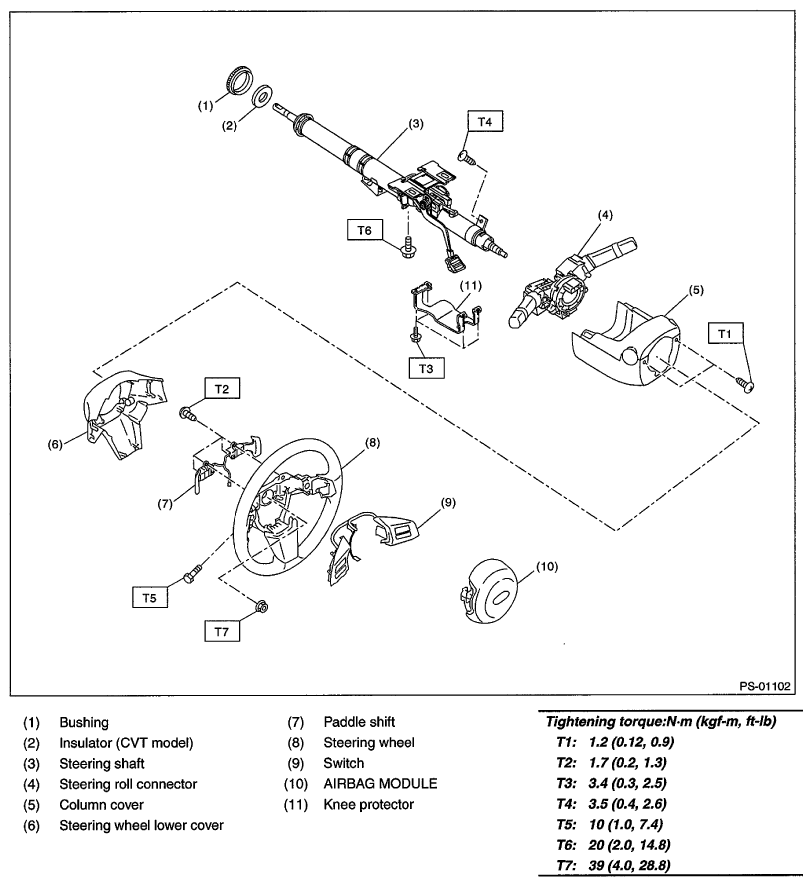

Fig 1: Steering Wheel And Column Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.2 (0.12,0.9)

T2: 1.7 (0.2, 1.3)

T3: 3.4 (0.3,2.5)

T4: 3.5 (0.4,2.6)

T5: 10 (1.0, 7.4)

T6: 20 (2.0,14.8)

T7: 39 (4.0,28.8)
