Steering Column: Disassembly

  1. Remove the screws and remove the column cover.

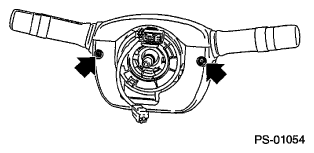

    Fig 1: Locating Column Cover Screws
    G06652816Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the screw and remove the combination switch.
    Fig 2: Identifying Combination Switch Screw
    G06652817Courtesy of SUBARU OF AMERICA, INC.
