Electrical Component Location

Electrical Component Location

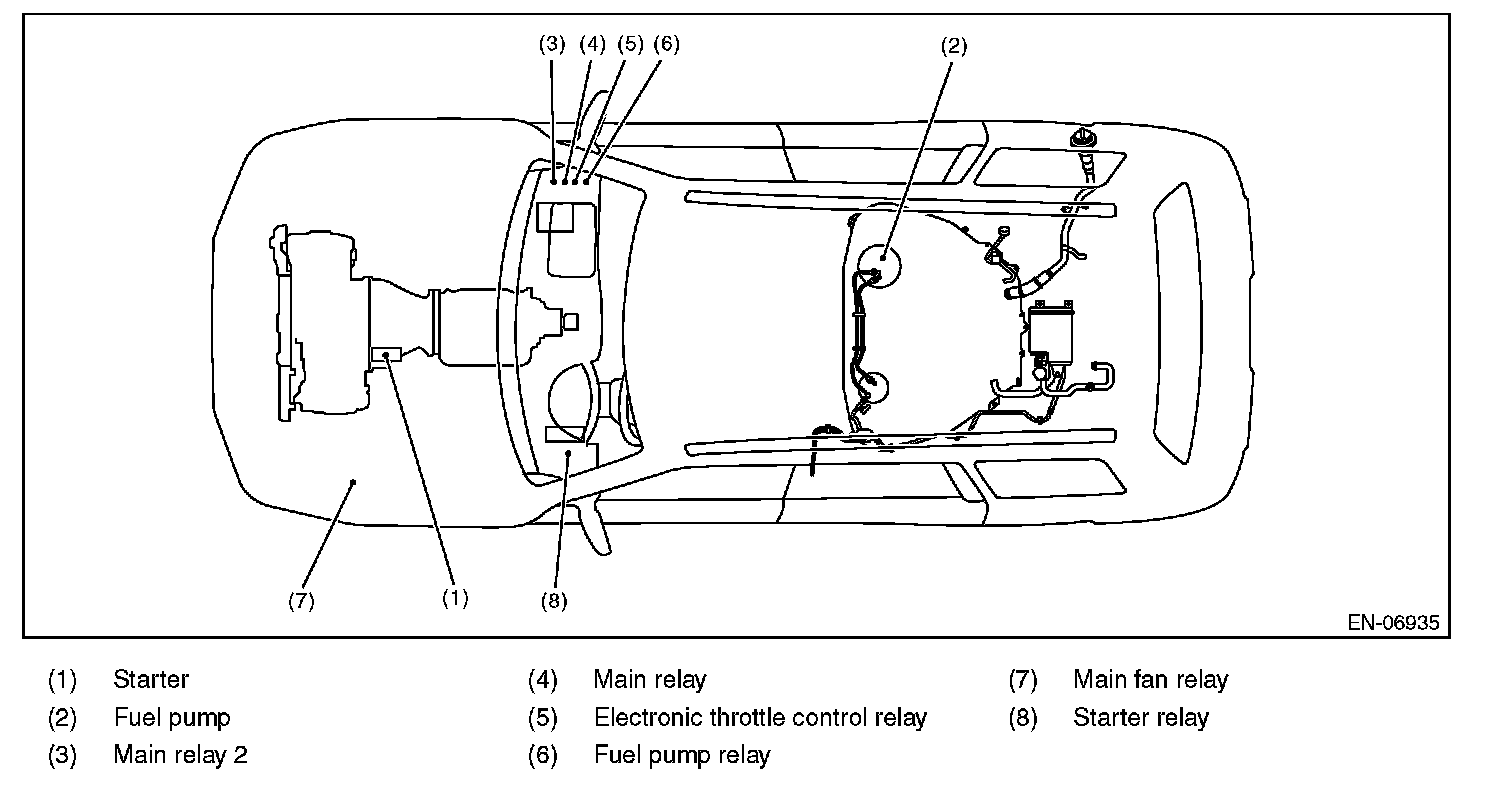

LOCATION

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

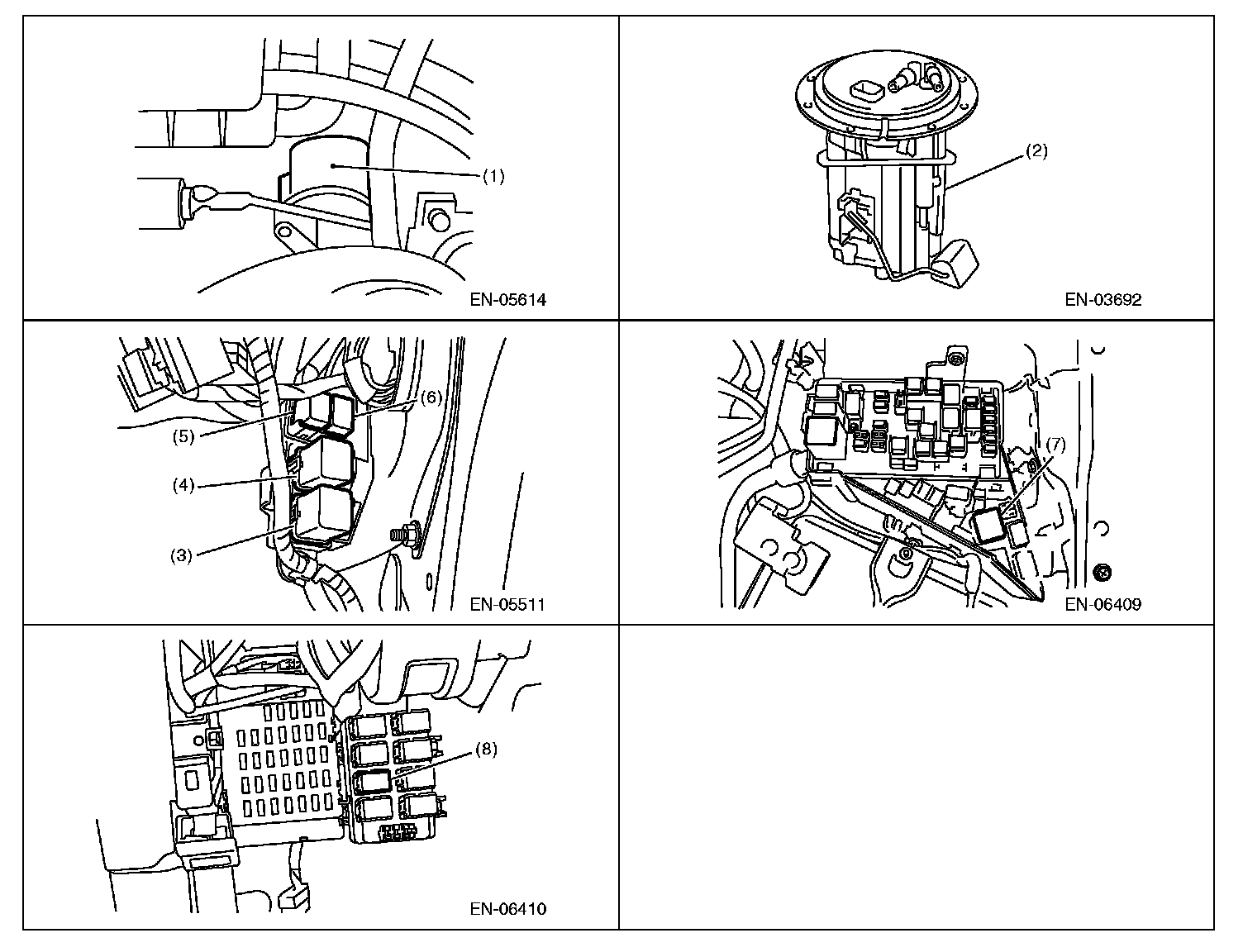

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 4):




Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 5):
