Exploded Views

COMPONENT

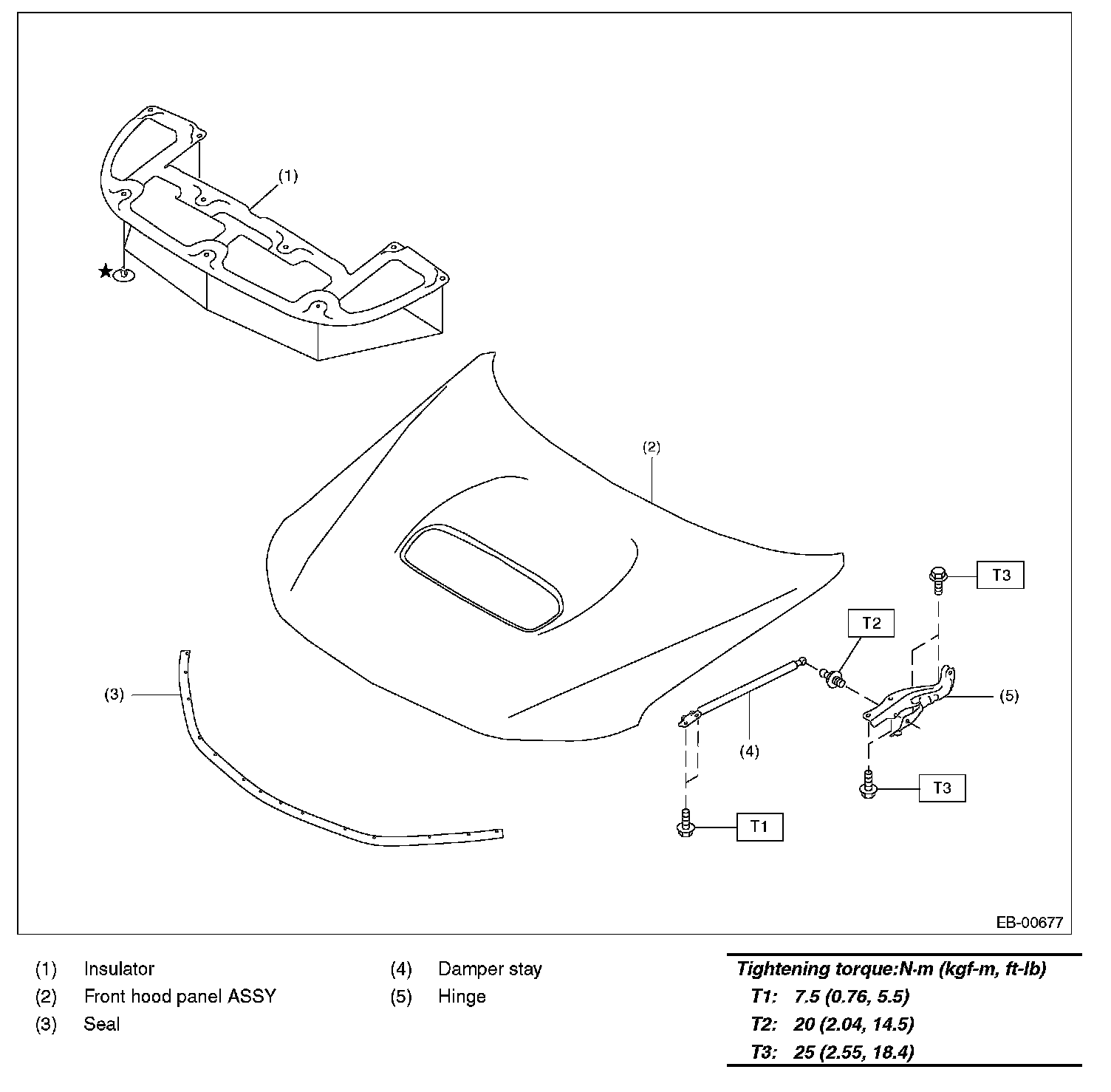

1. FRONT HOOD


Front Hood:

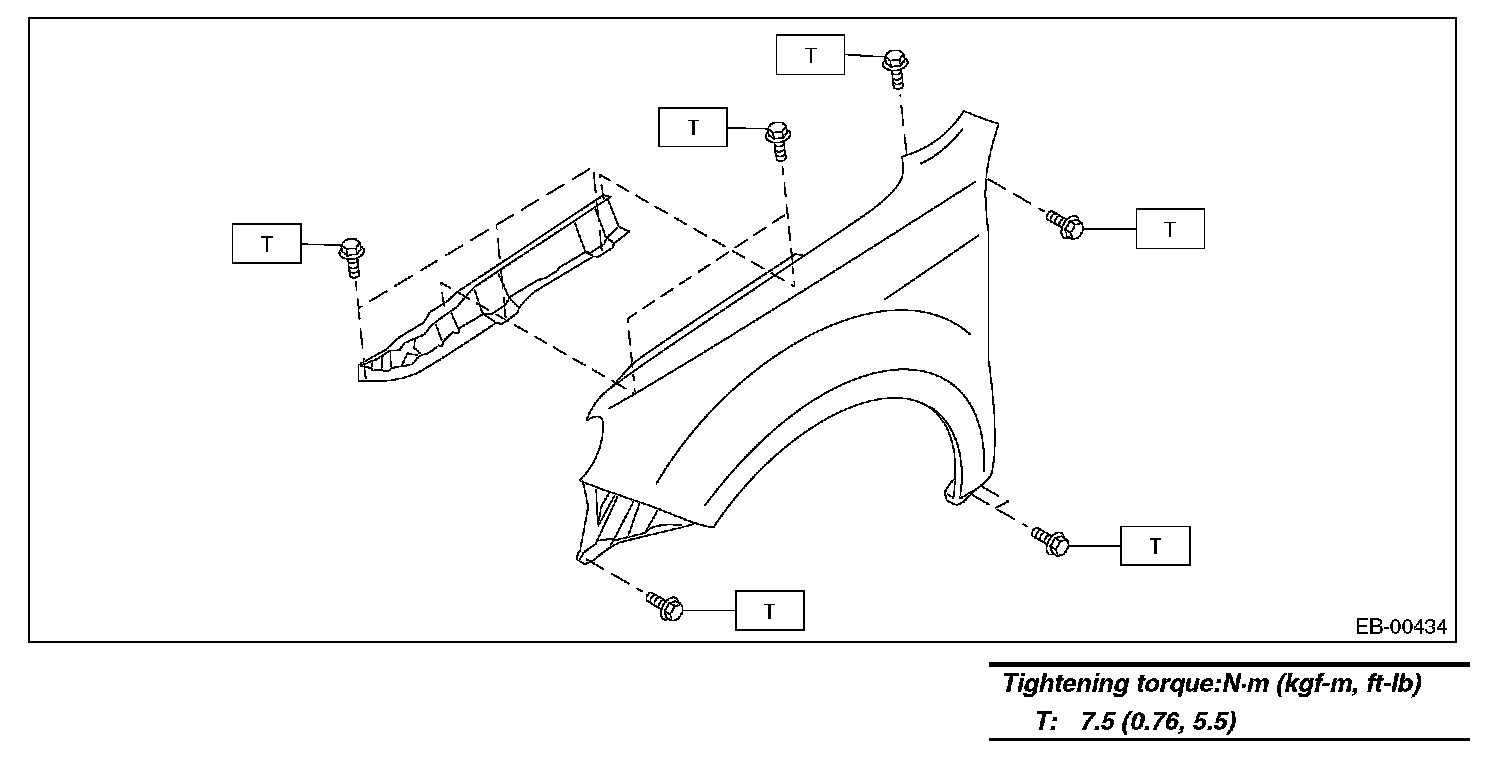

2. FRONT FENDER


Front Fender:

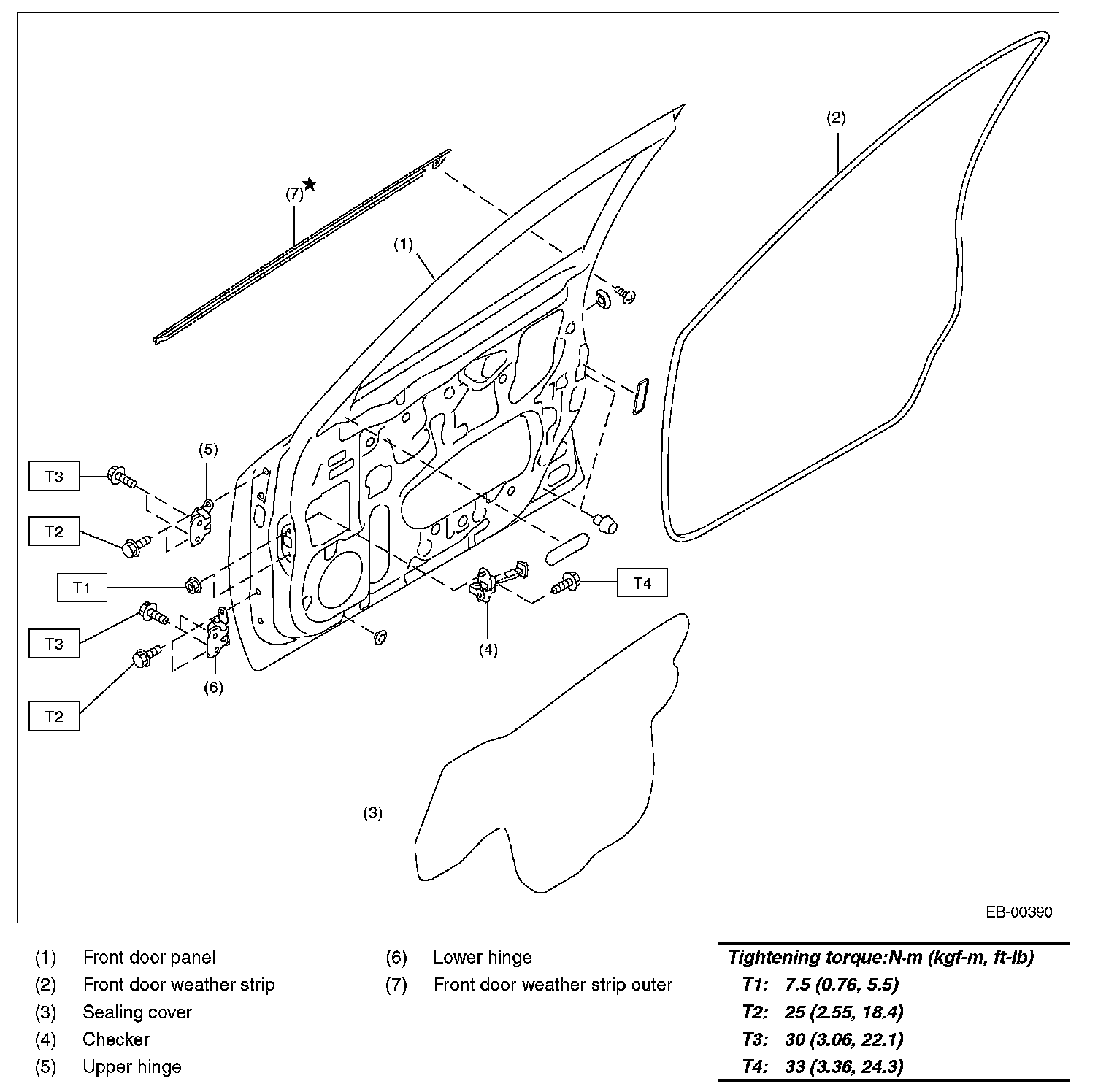

3. FRONT DOOR


Front Door:

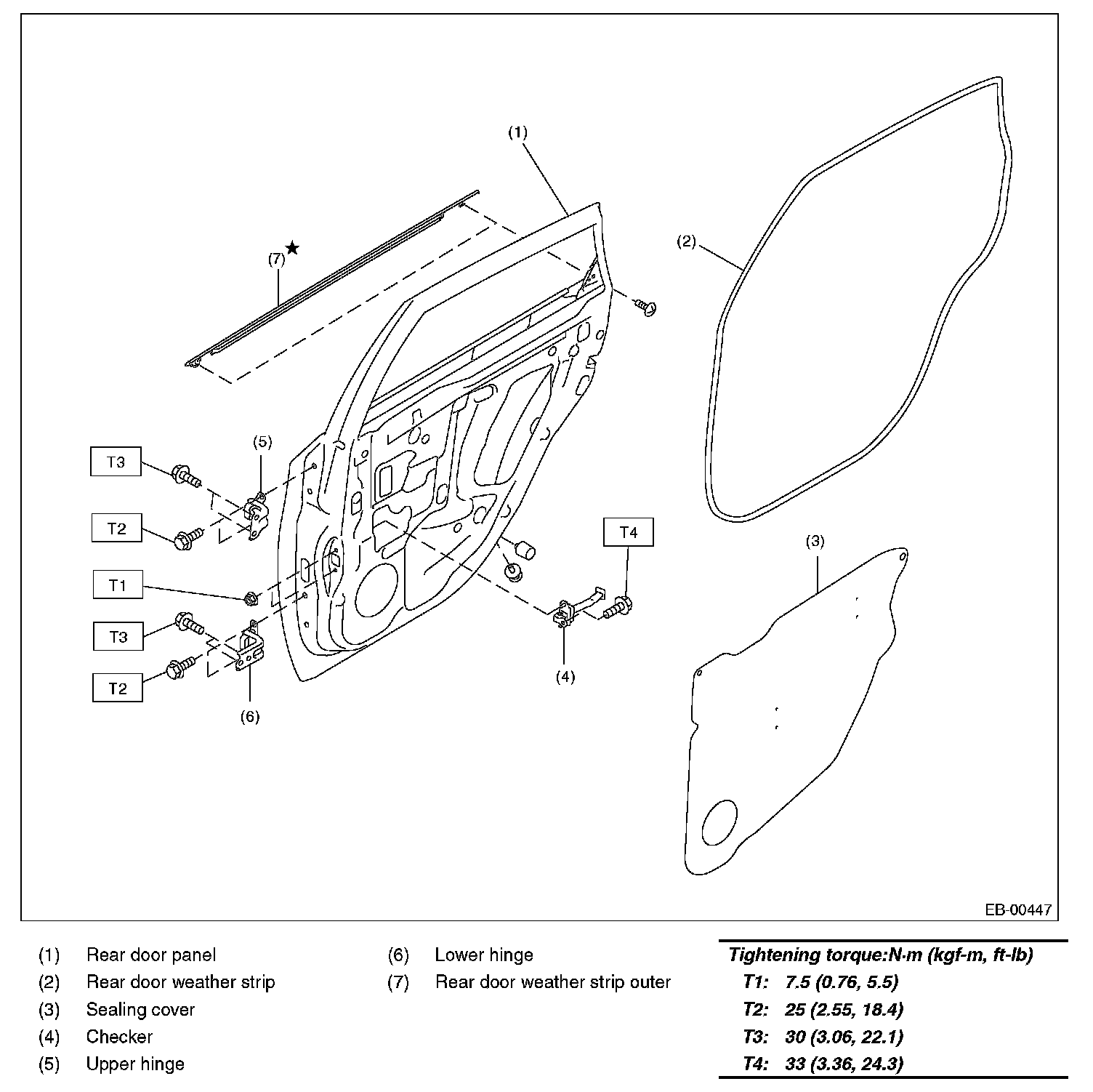

4. REAR DOOR


Rear Door:

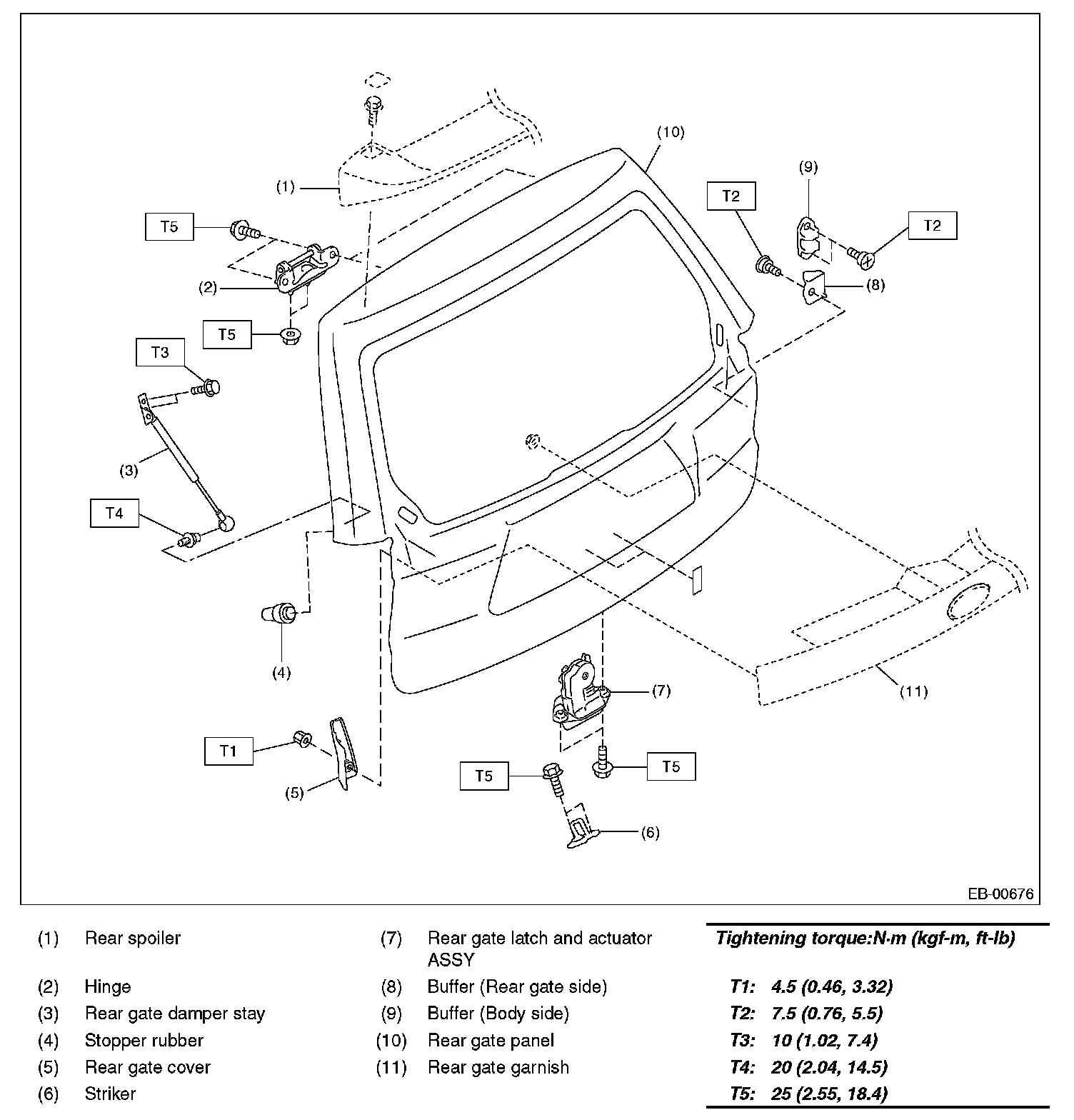

5. REAR GATE


Rear Gate:
