System Diagram

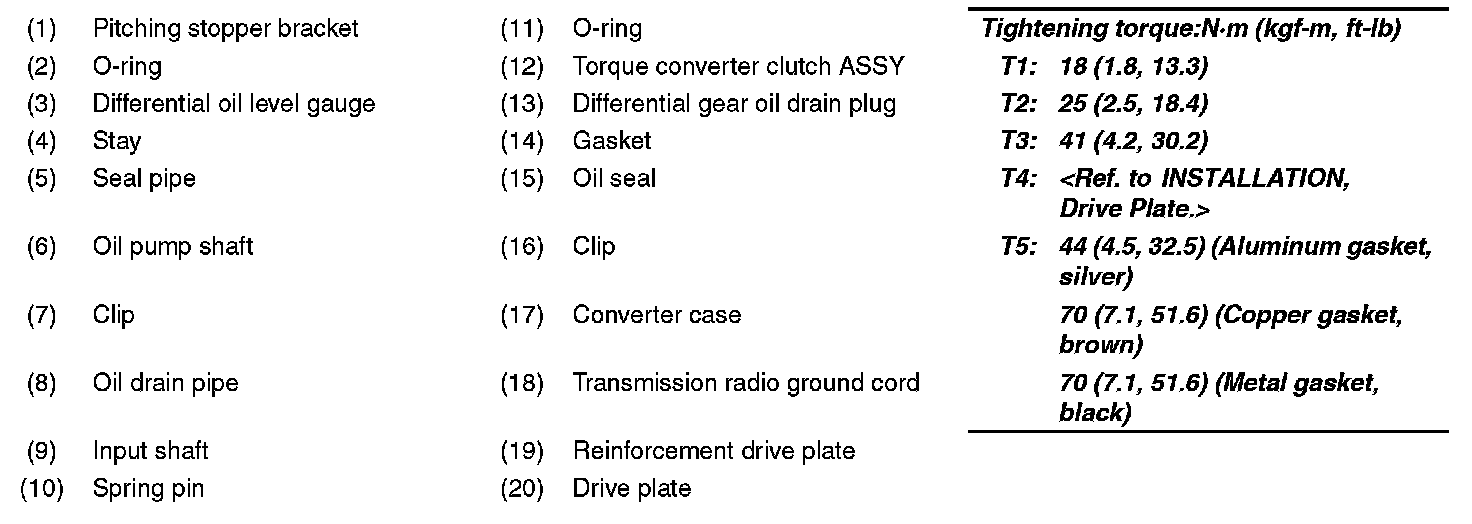

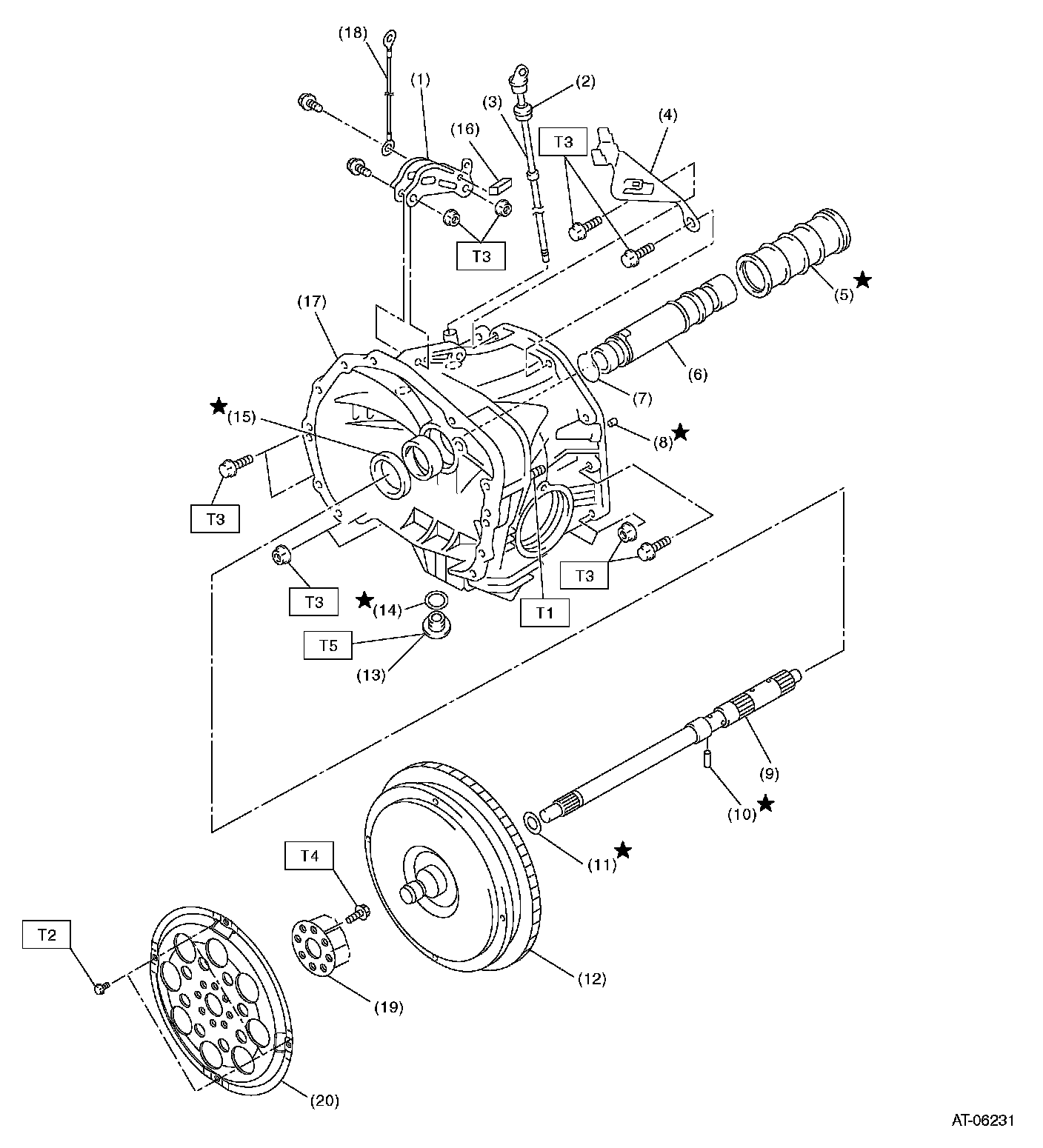

TORQUE CONVERTER AND CASE

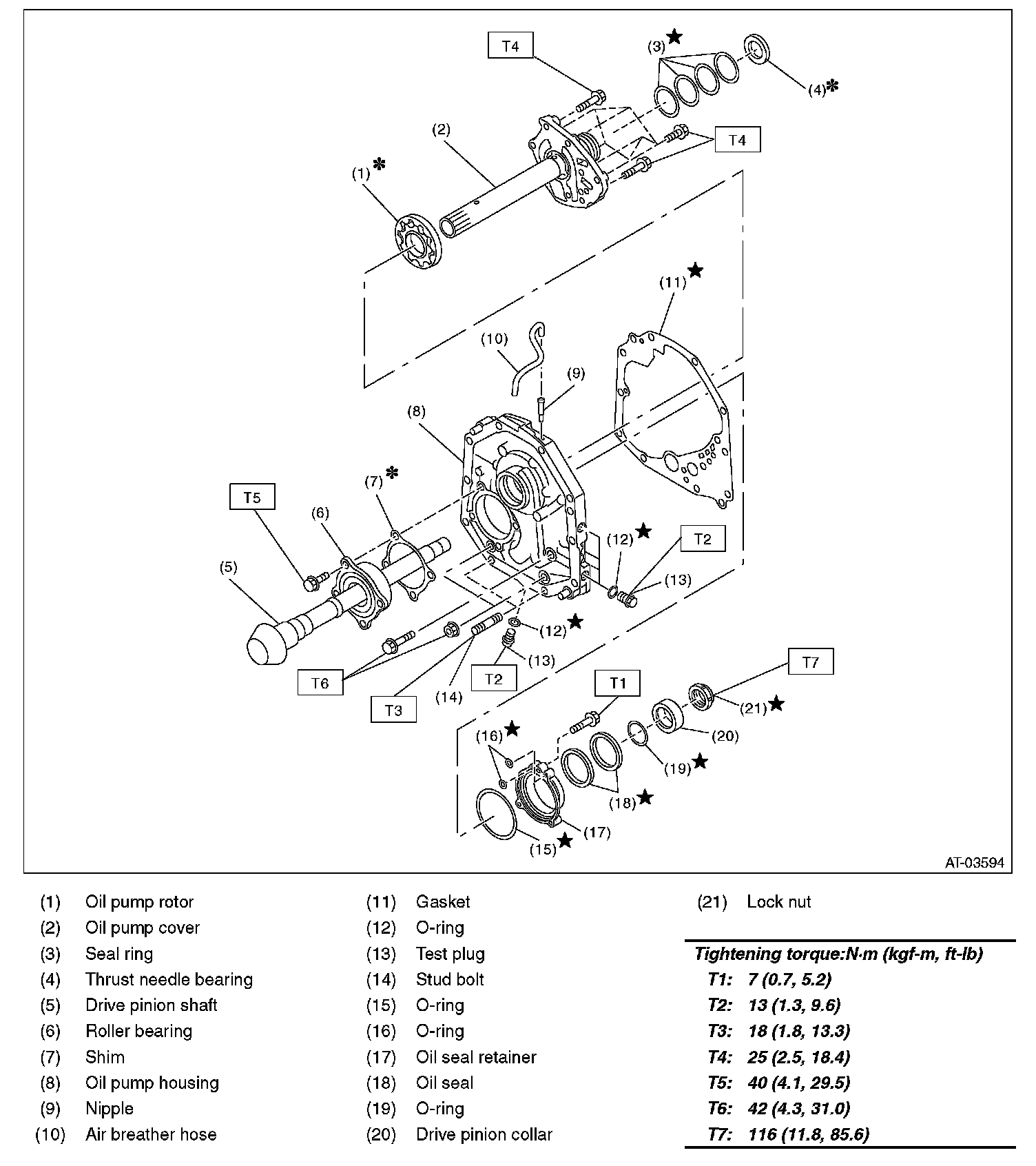

OIL PUMP

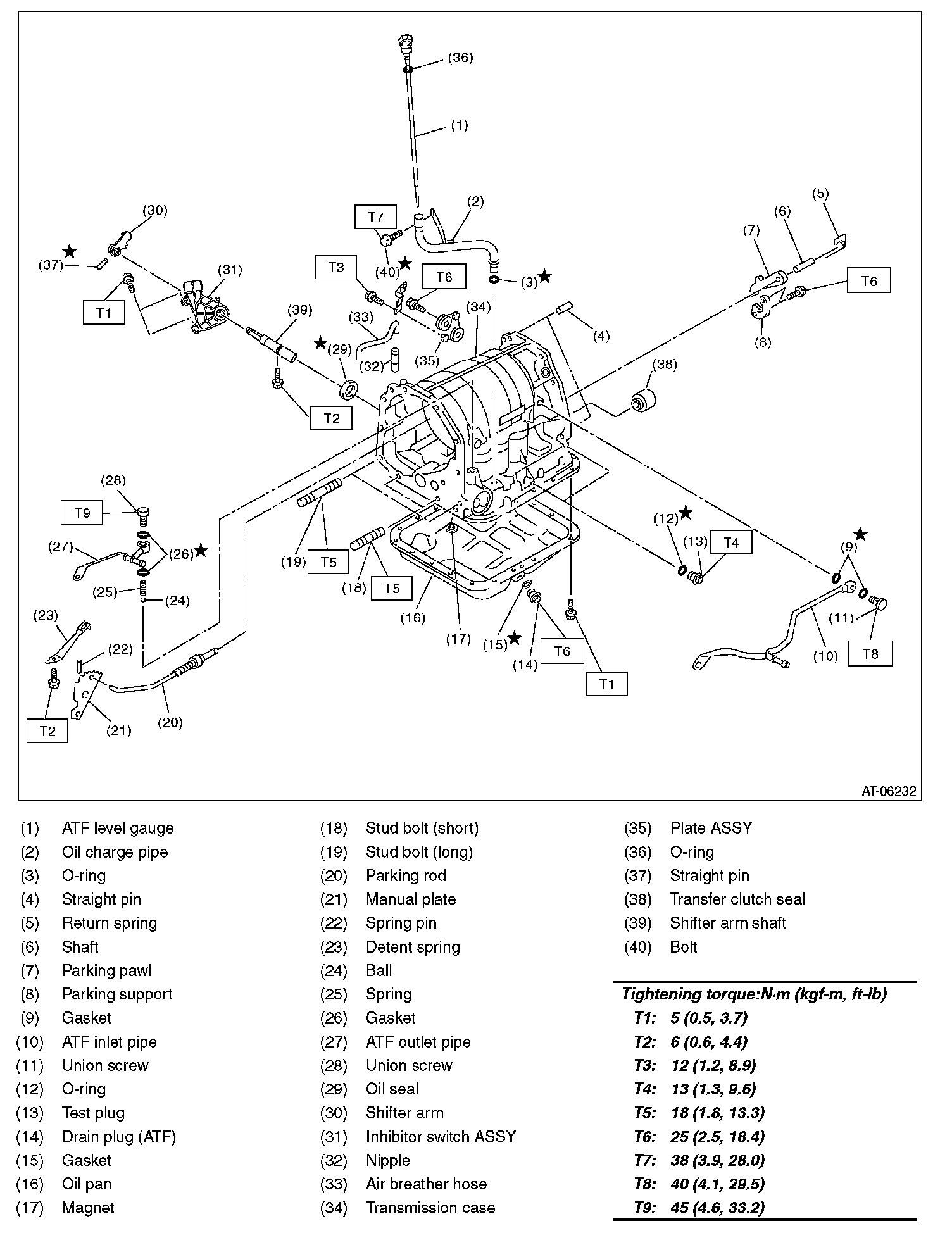

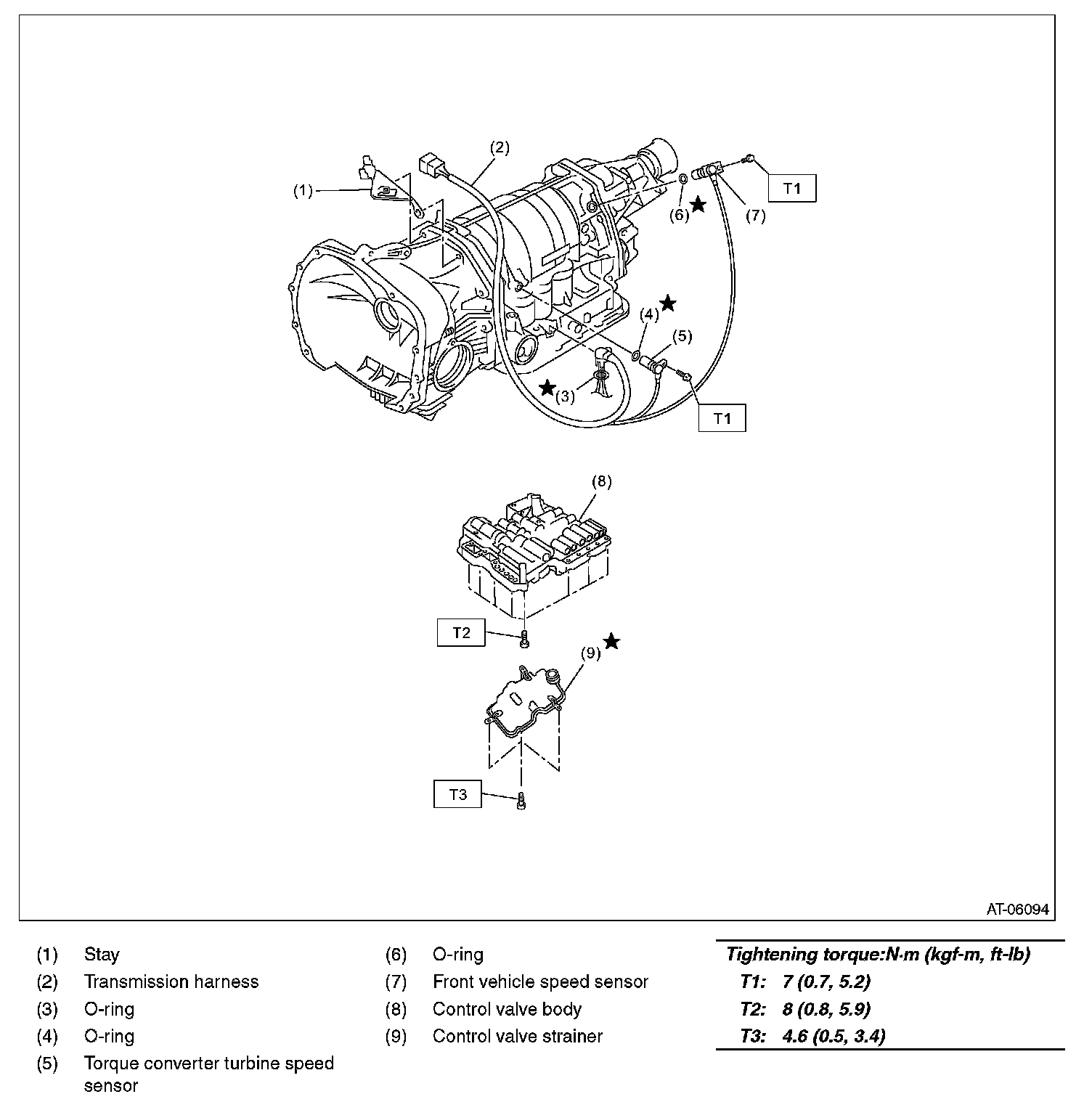

TRANSMISSION CASE AND CONTROL DEVICE
CONTROL VALVE AND HARNESS ROUTING

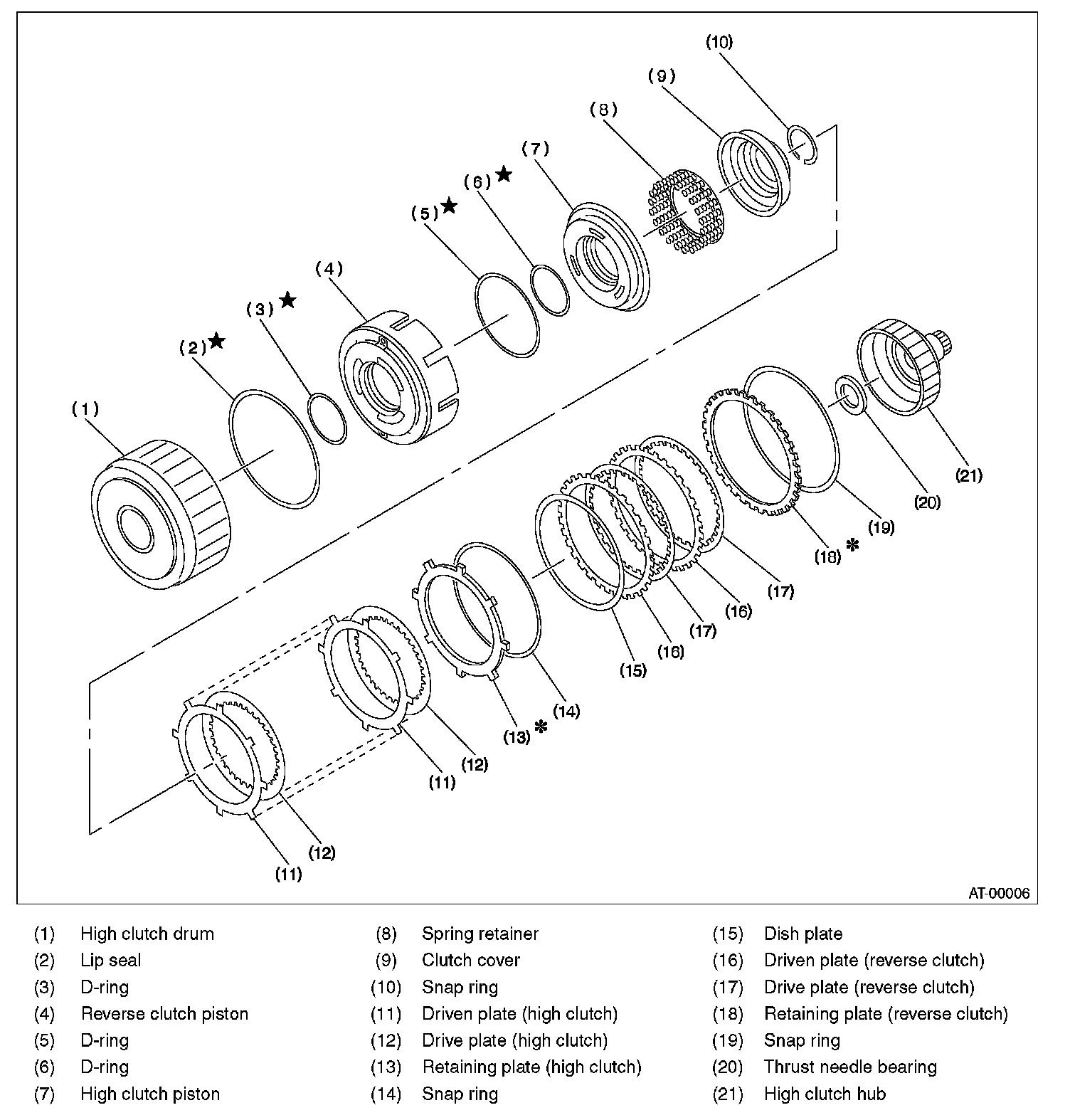

HIGH CLUTCH AND REVERSE CLUTCH

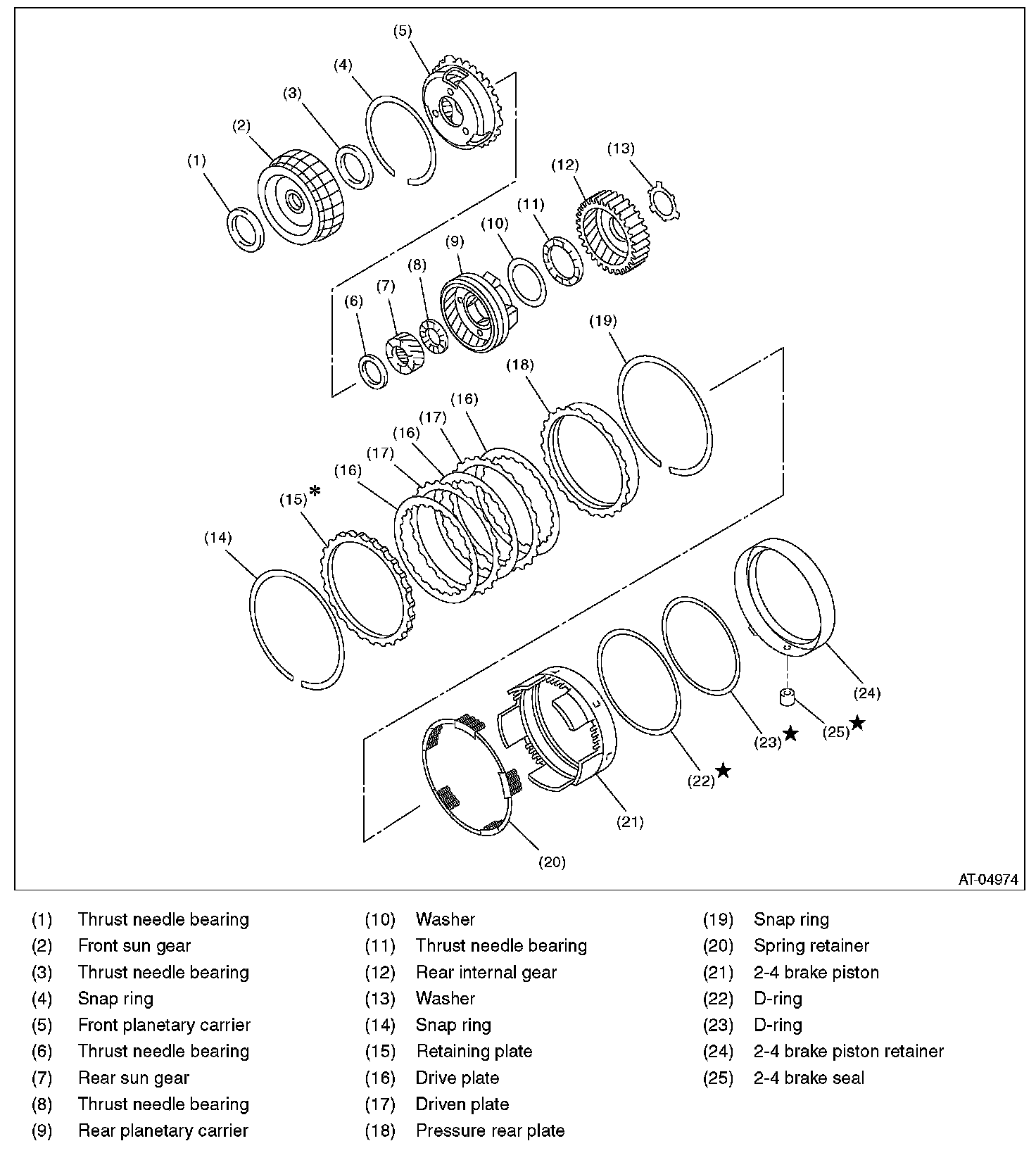

PLANETARY GEAR AND 2-4 BRAKE

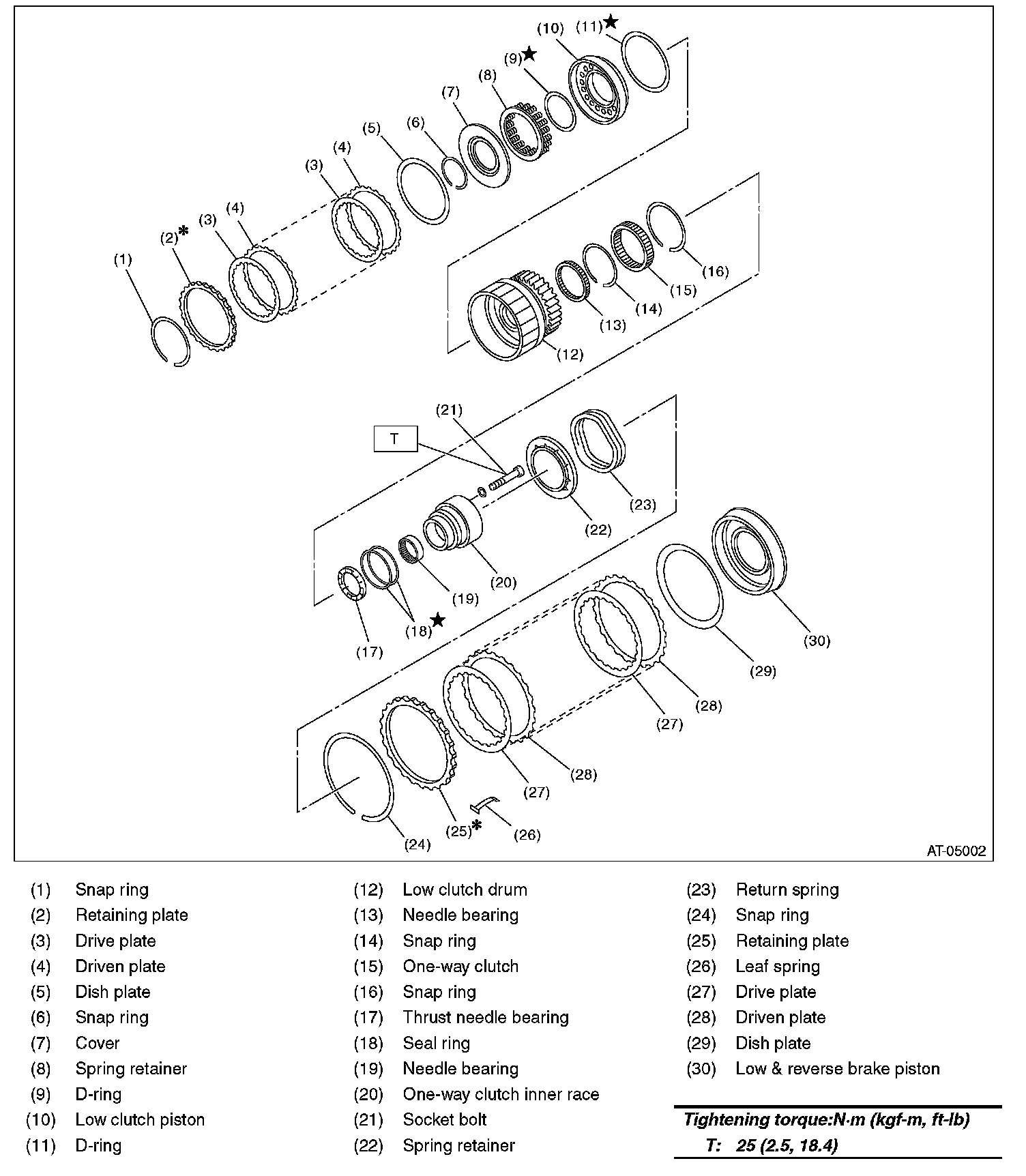

LOW CLUTCH AND LOW & REVERSE BRAKE

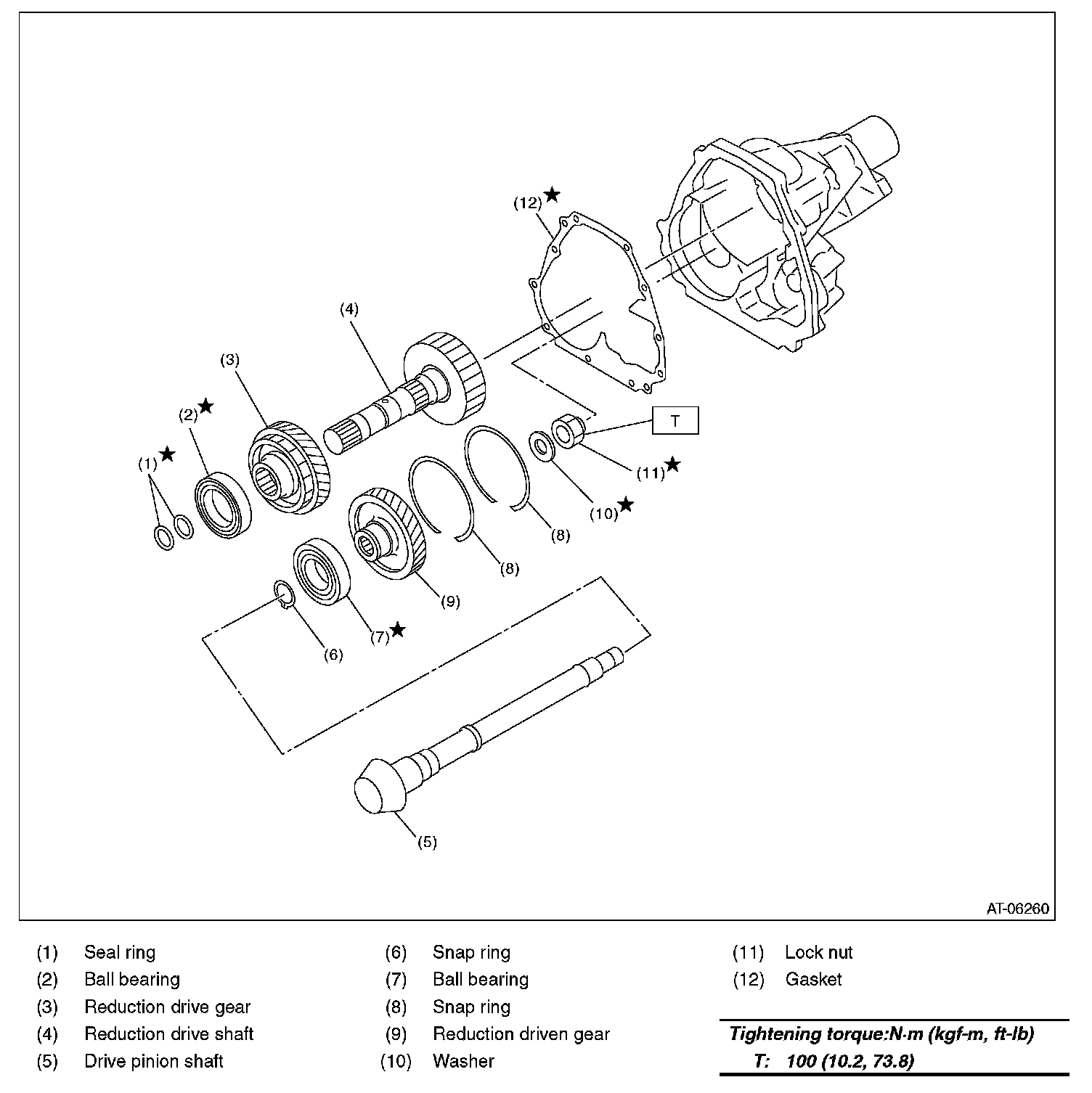

REDUCTION GEAR

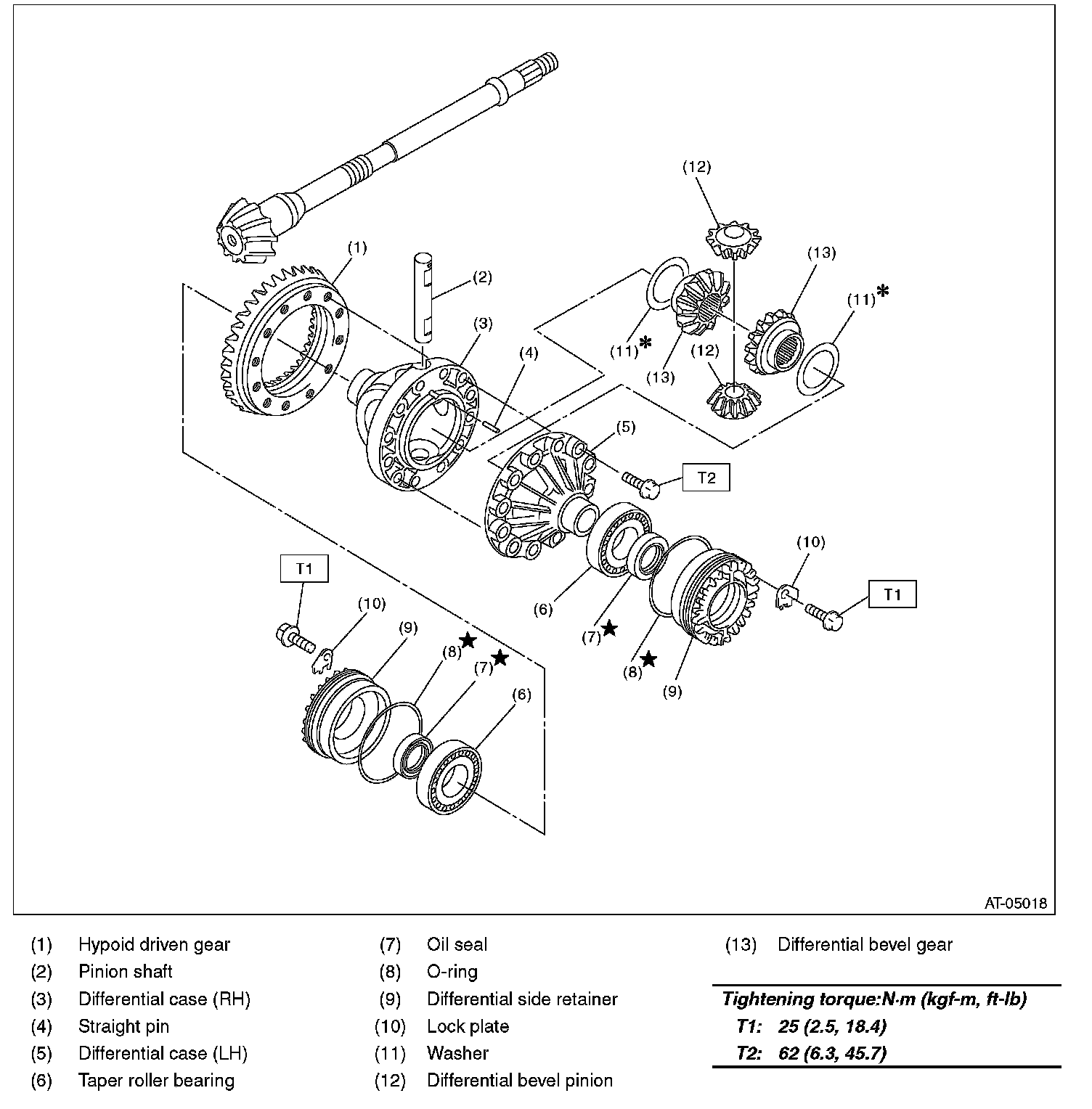

DIFFERENTIAL GEAR

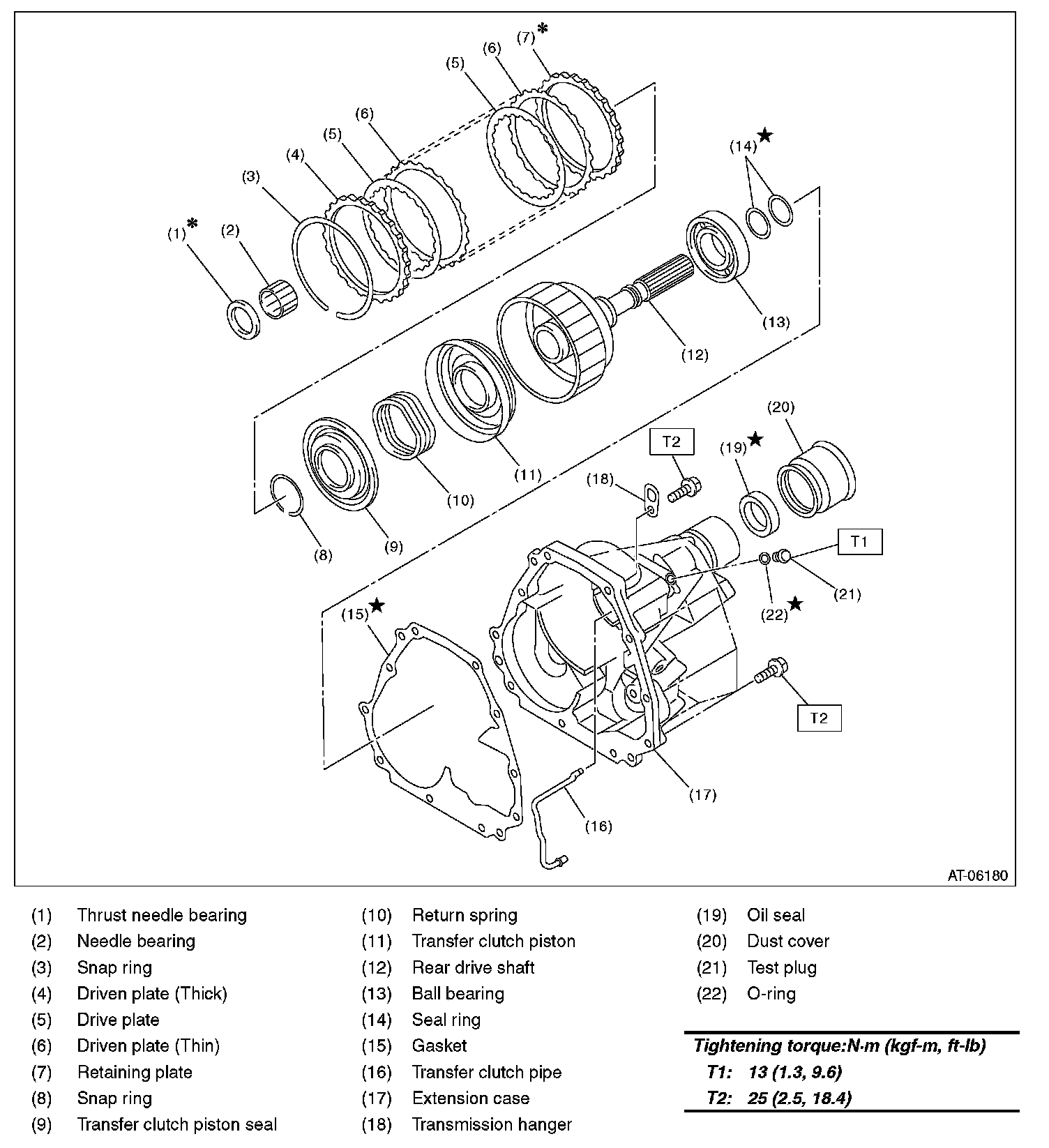

TRANSFER AND EXTENSION CASE

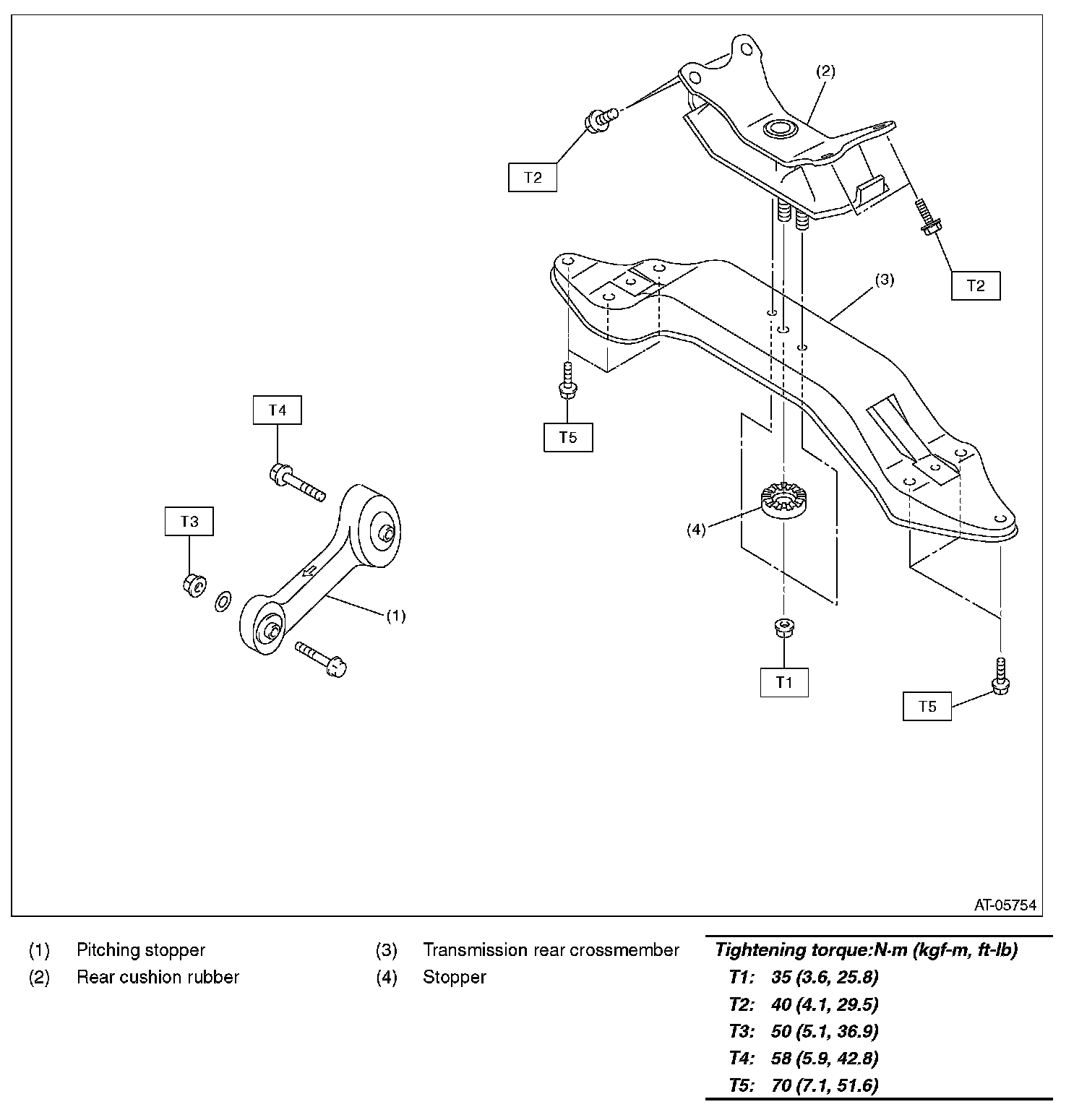

TRANSMISSION MOUNTING
