Fixed Glass

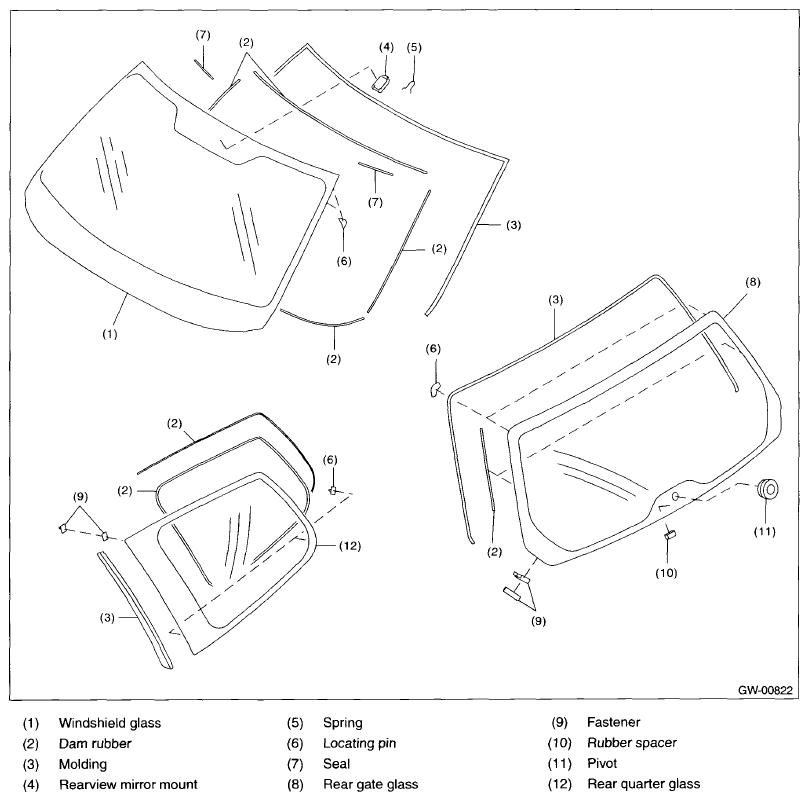

Fig 1: Fixed Glass And Components Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
