Oil Pump

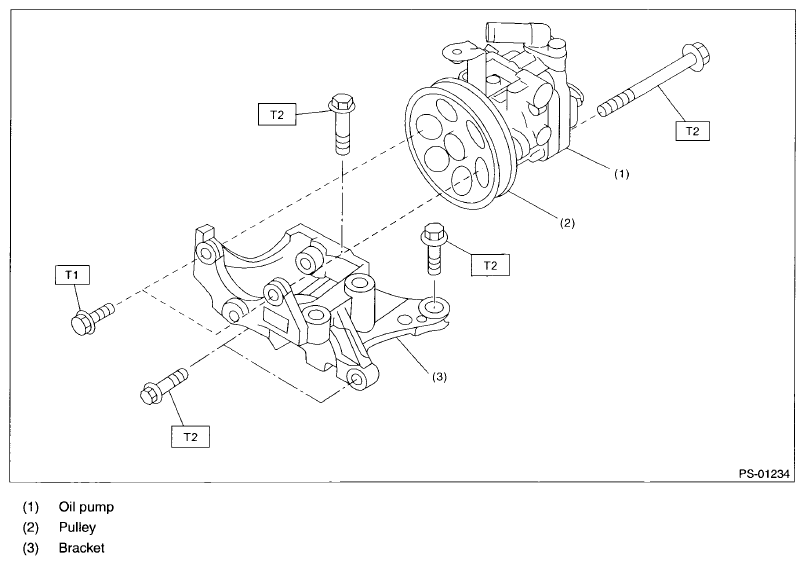

Fig 1: Exploded View Of Oil Pump With Torque Specification (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 36 (3.67, 26.6)

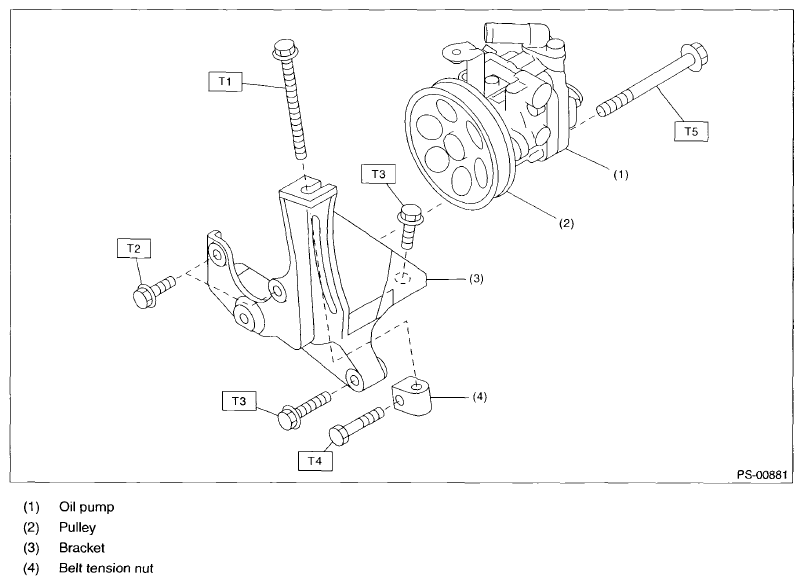

Fig 2: Exploded View Of Oil Pump With Torque Specification (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.0 (0.82, 5.8)

T2: 16 (1.63, 11.8)

T3: 22 (2.24, 16.2)

T4: 25 (2.55, 18.4)

T5: 48 (4.89, 35.4)
