Check Stop Light Switch
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the stop light switch connector.

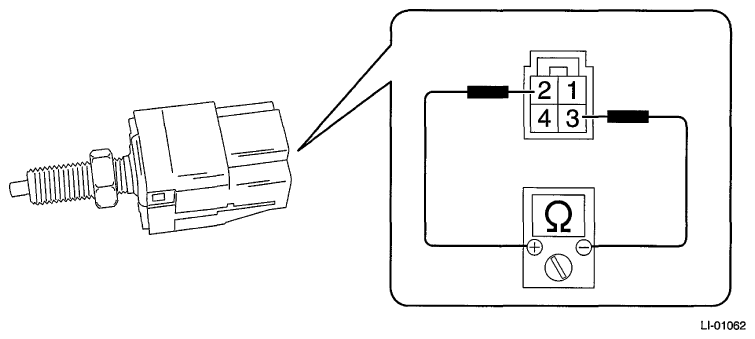

- Measure the resistance between stop light switch terminals.
Preparation tool: Circuit tester
Terminal No. Inspection conditions Specification 2 - 3 When brake pedal is depressed Less than 1 Ω When brake pedal is released 1 MΩ or more - Replace the stop light switch if the inspection result is not within the standard value.
