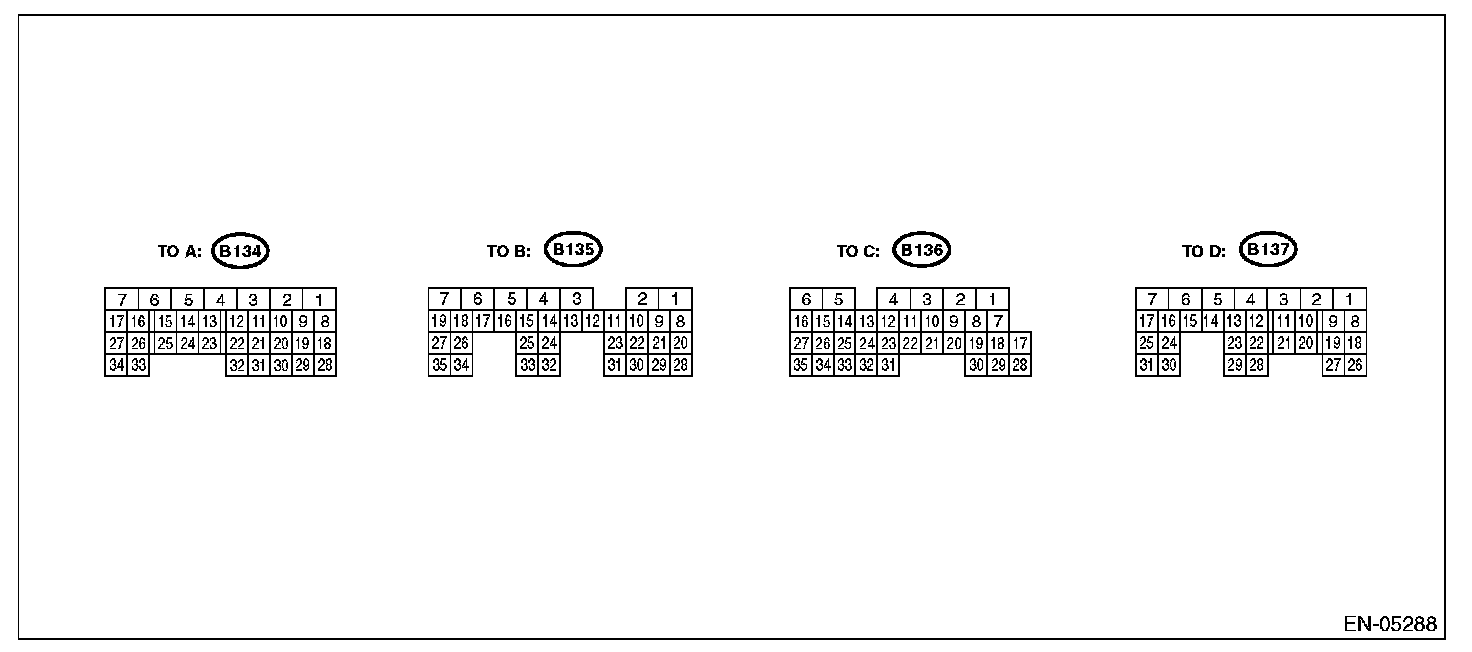

Pinout Values and Diagnostic Parameters

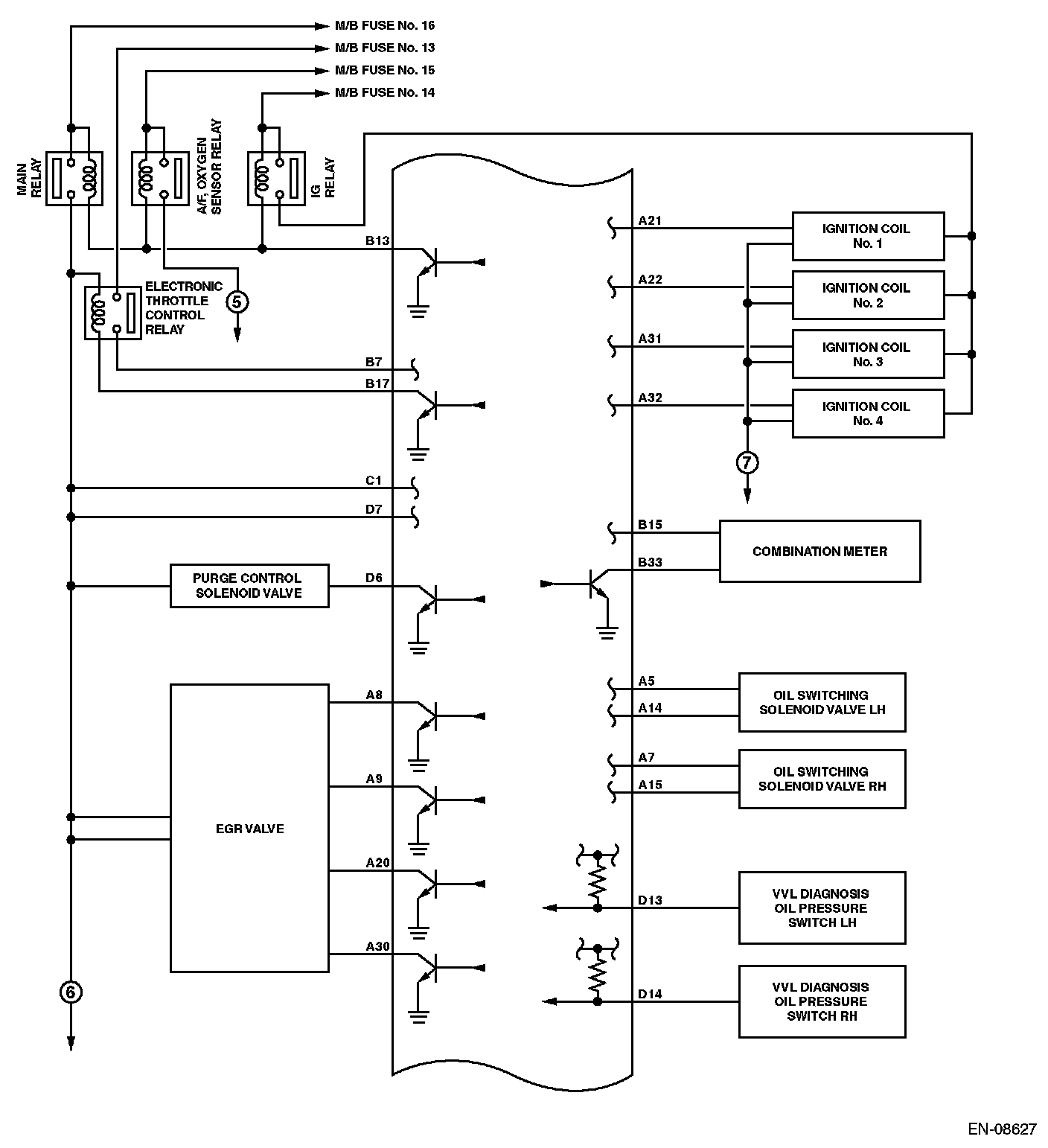

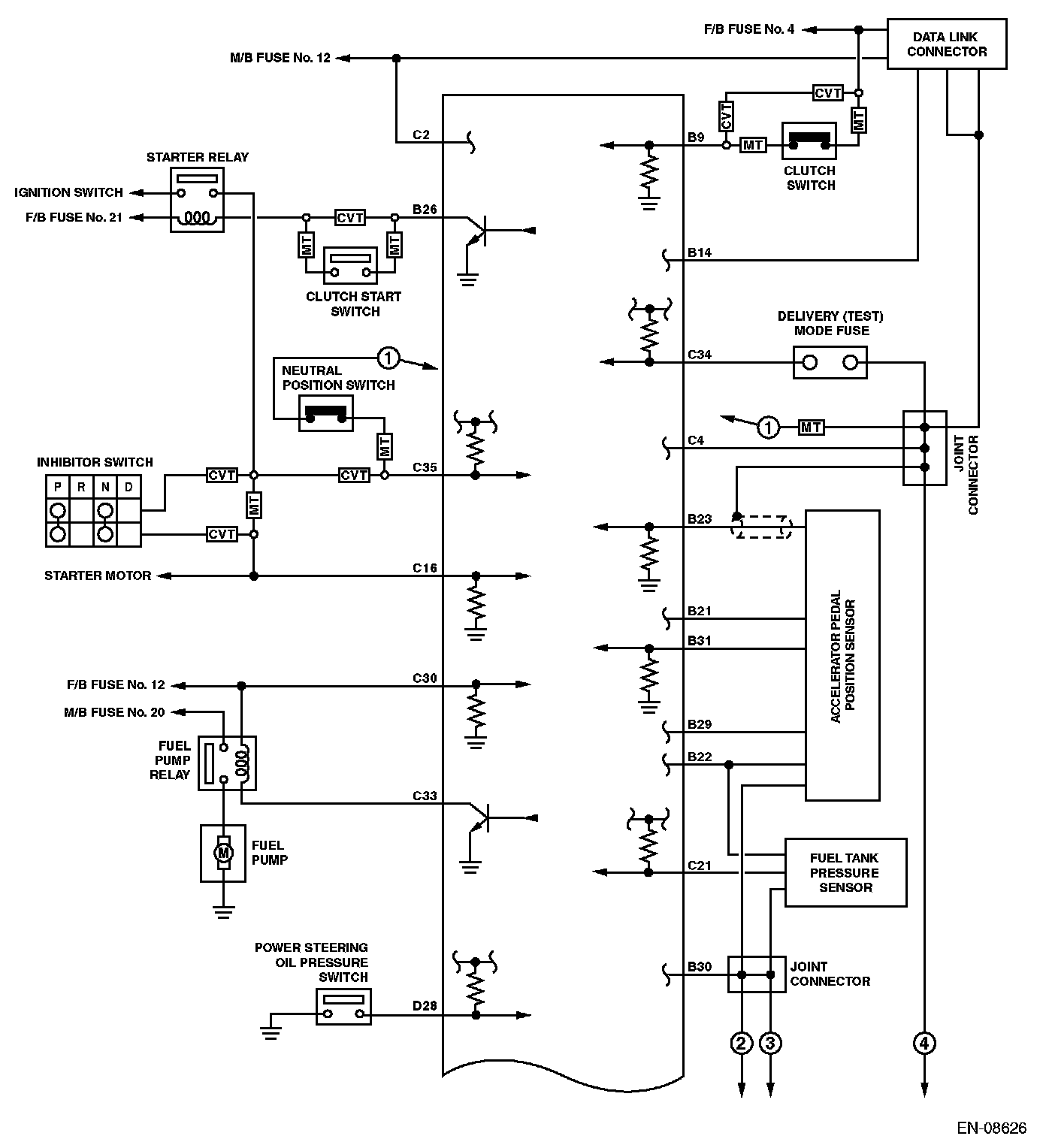

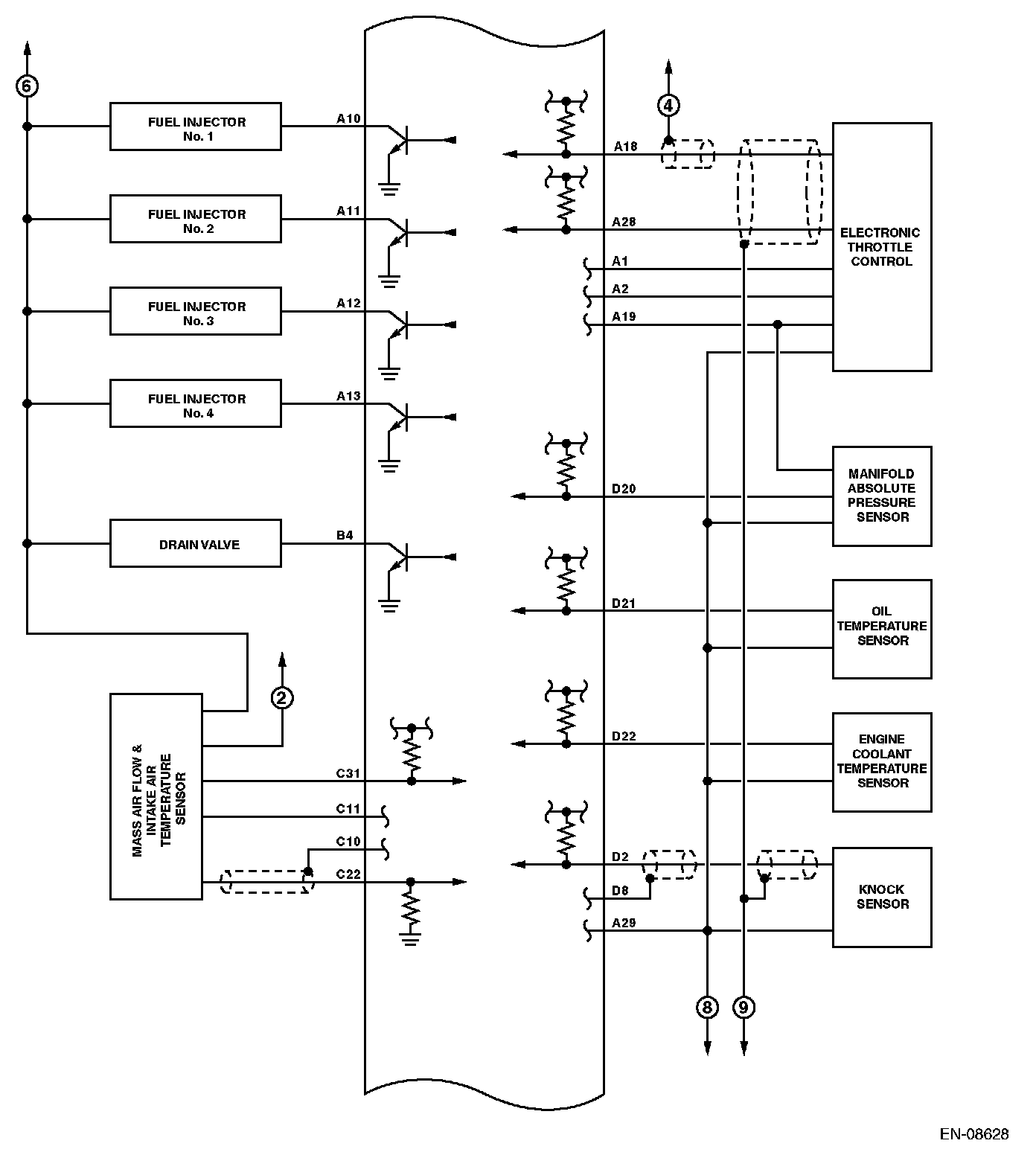

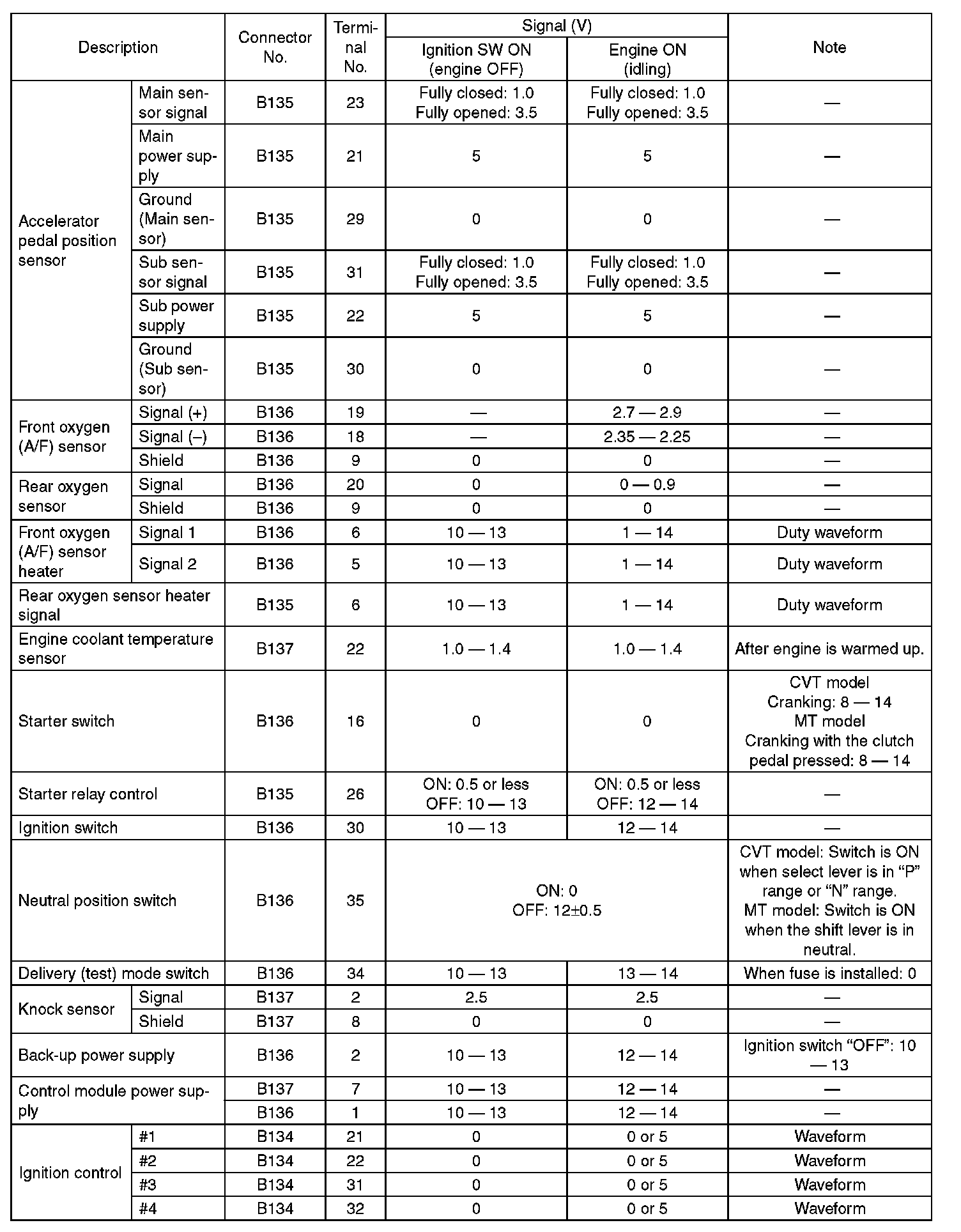

Engine Control Module (ECM) I/O Signal

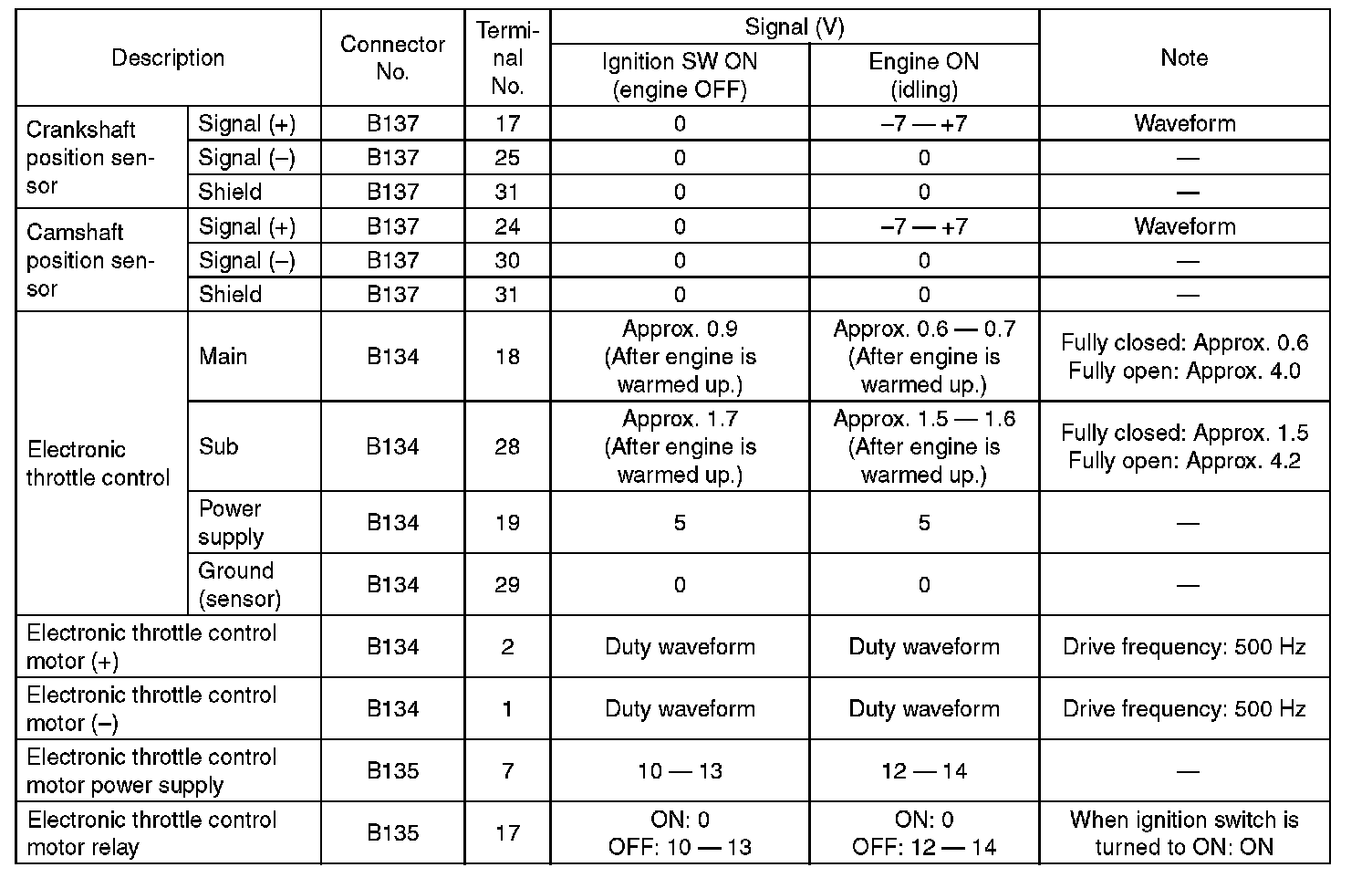

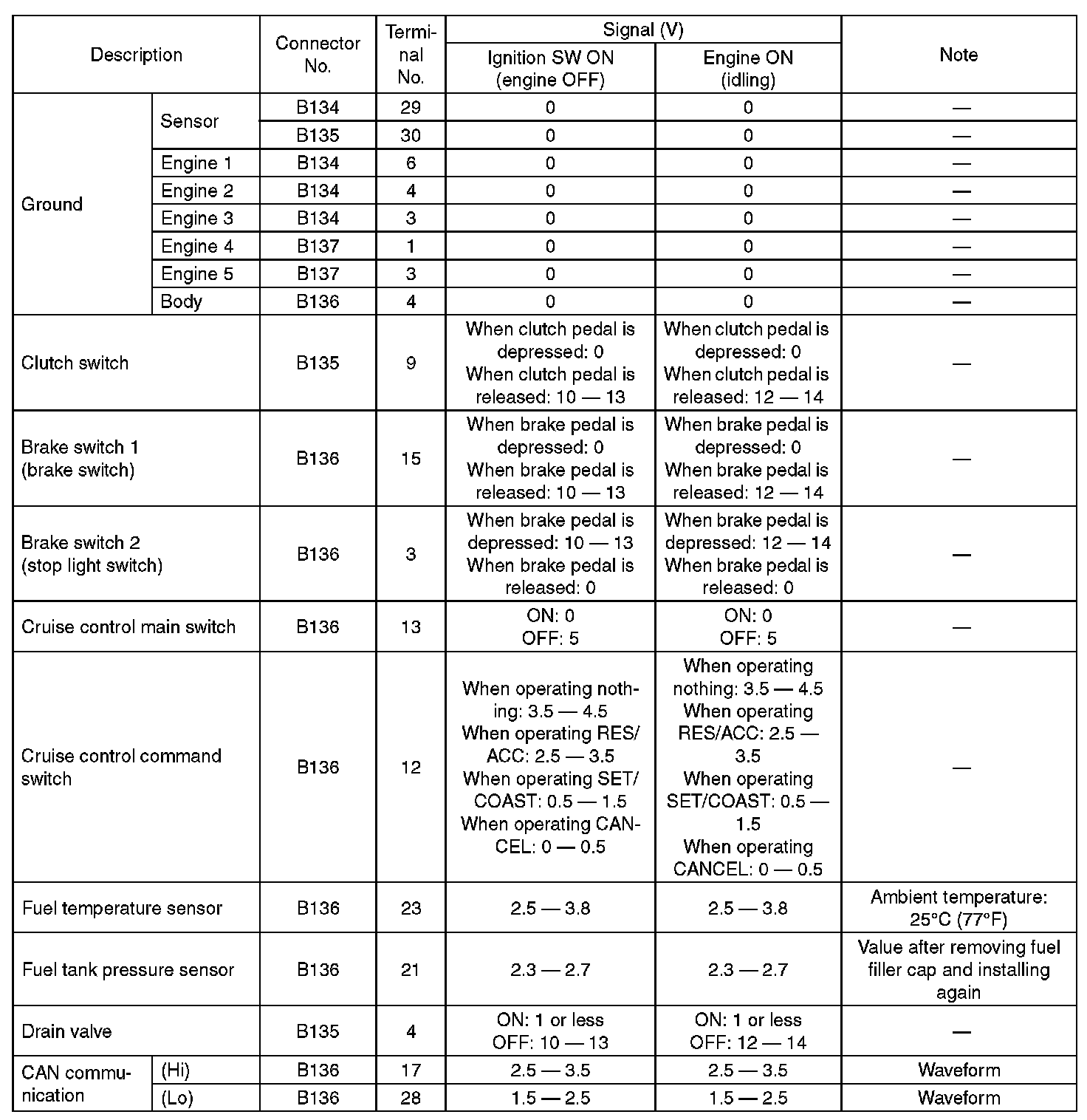

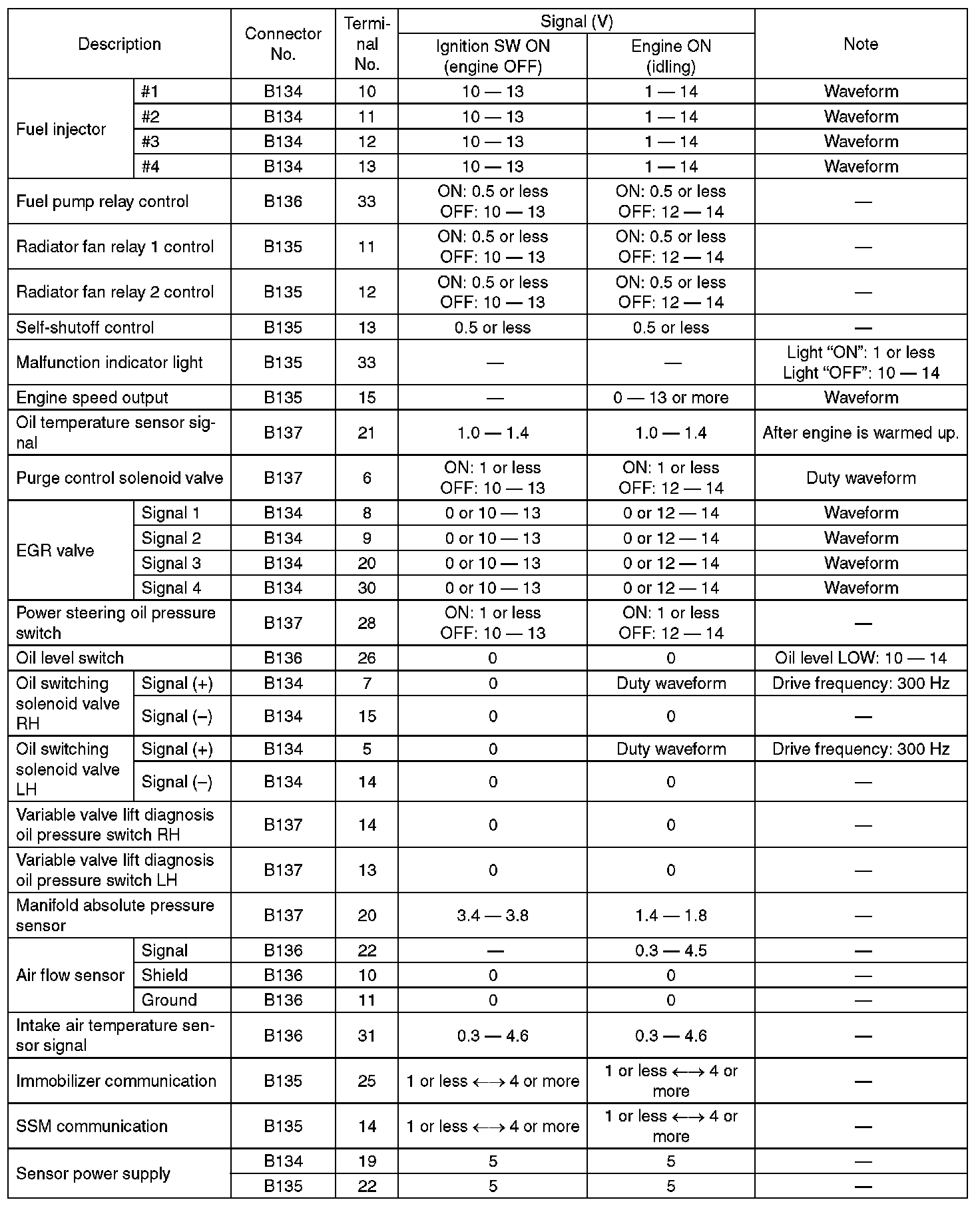

ELECTRICAL SPECIFICATION

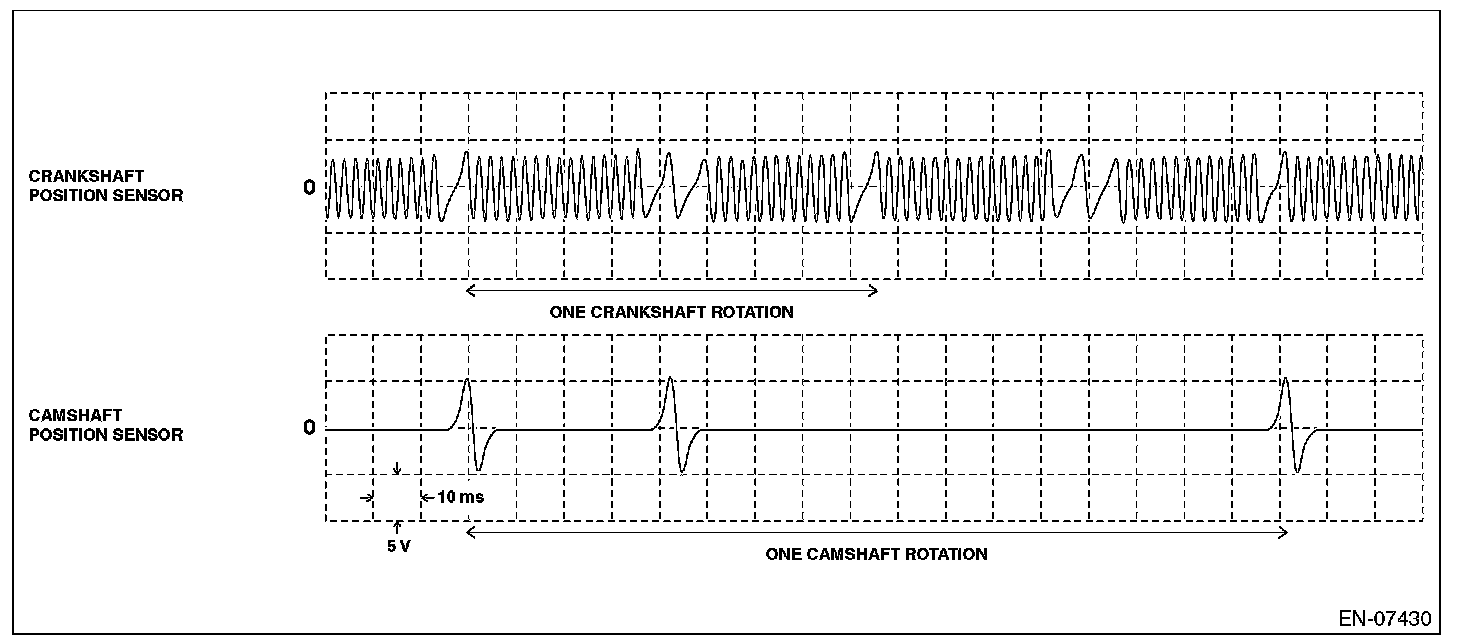

Input/output name:

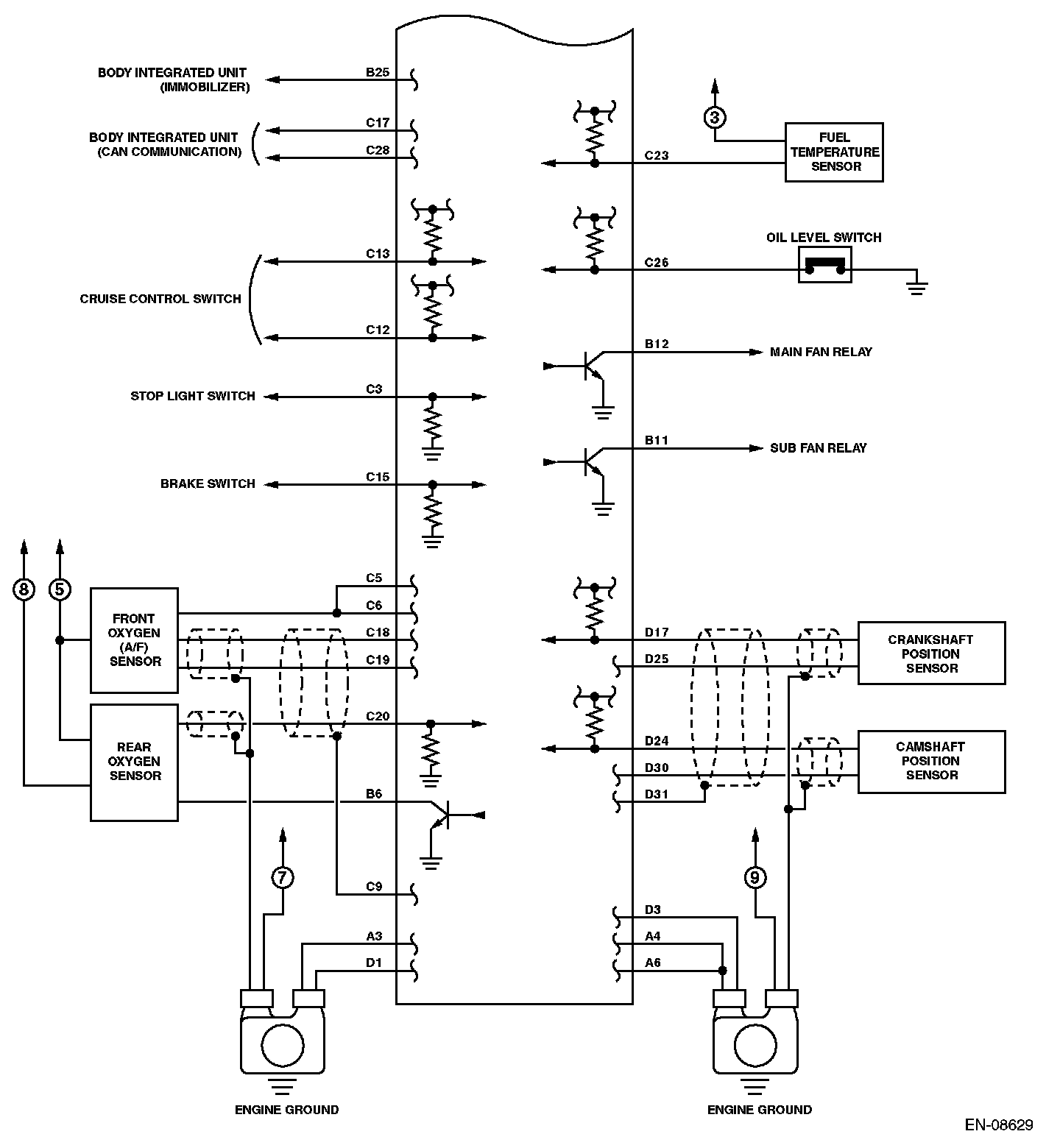

- Crankshaft position sensor
- Camshaft position sensor

Measuring condition:
- After warming-up
- At idling
