Ignition System: Testing and Inspection

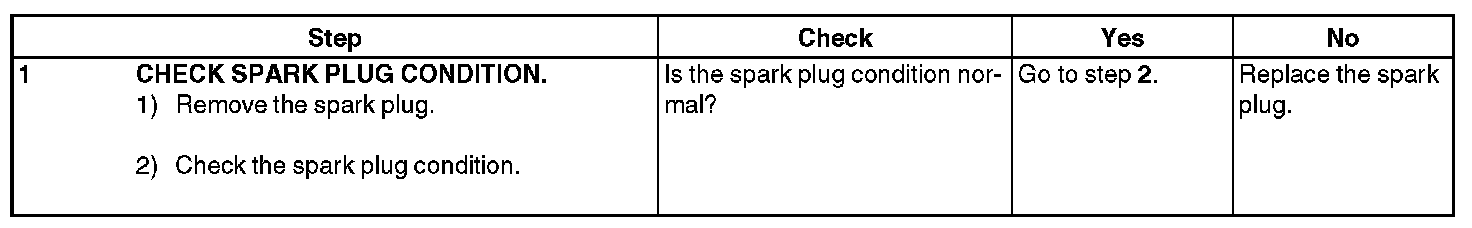

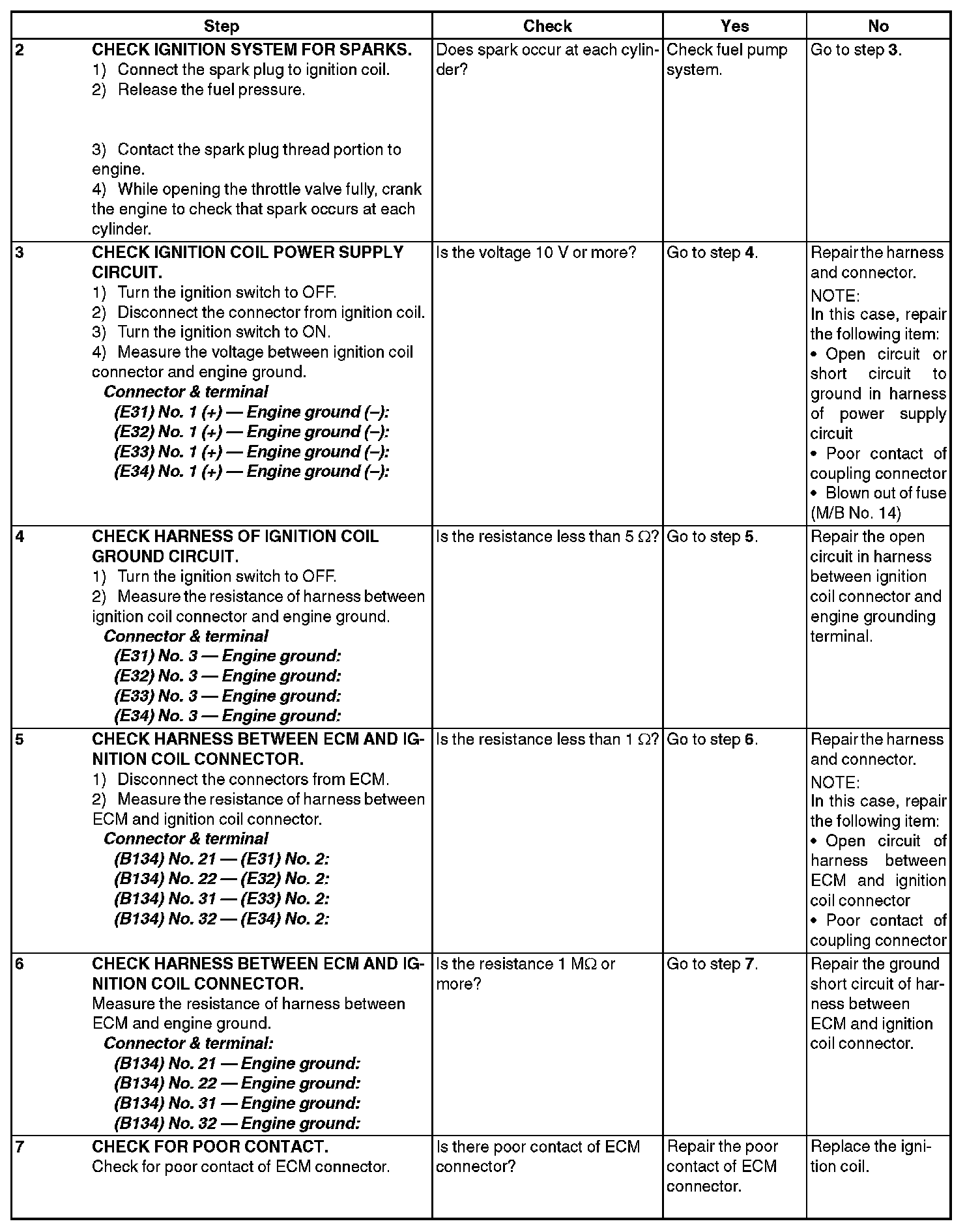

Diagnostics for Engine Starting Failure

IGNITION CONTROL SYSTEM

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode, Clear Memory Mode and Inspection Mode. Inspection Mode

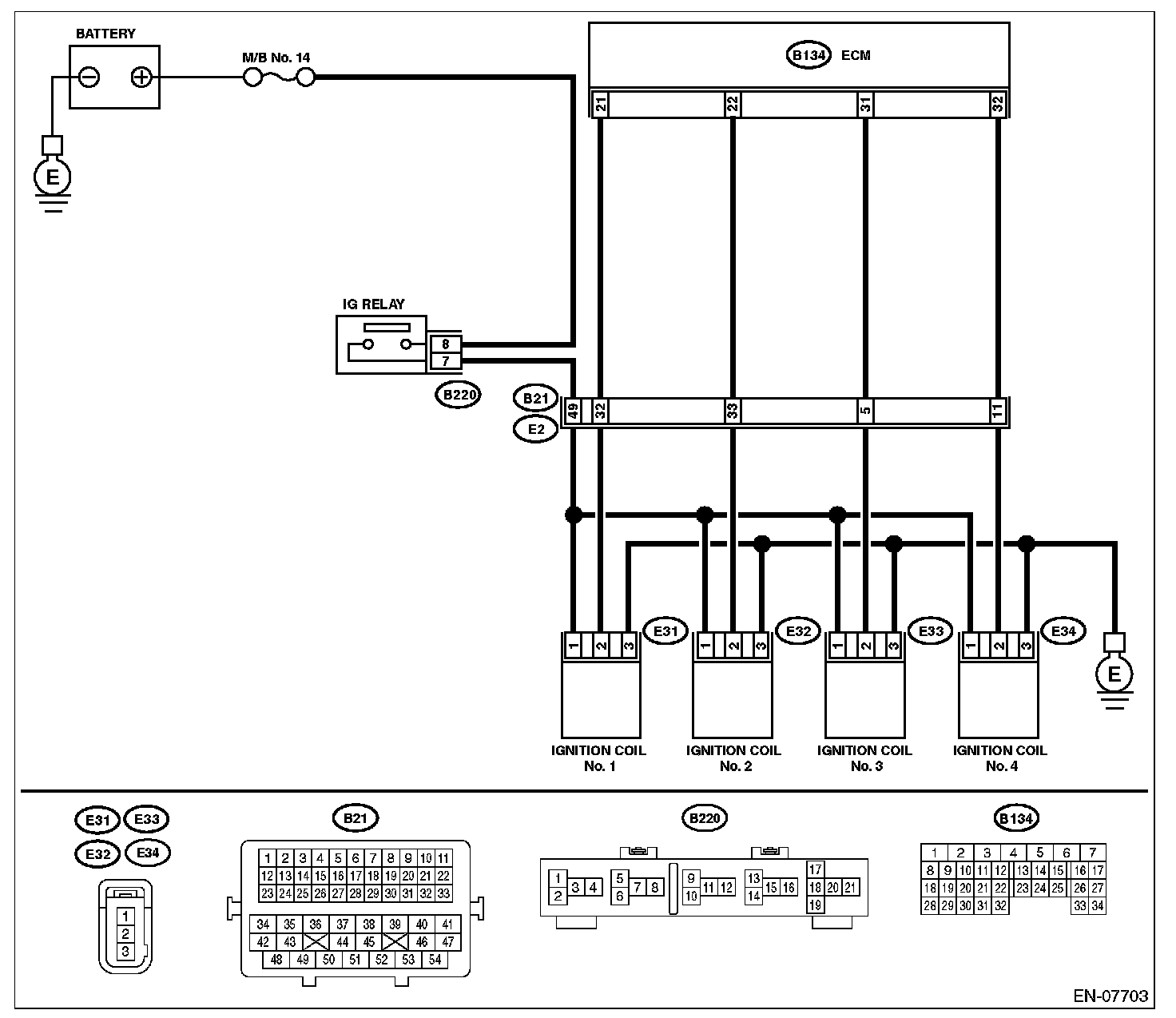

WIRING DIAGRAM:
