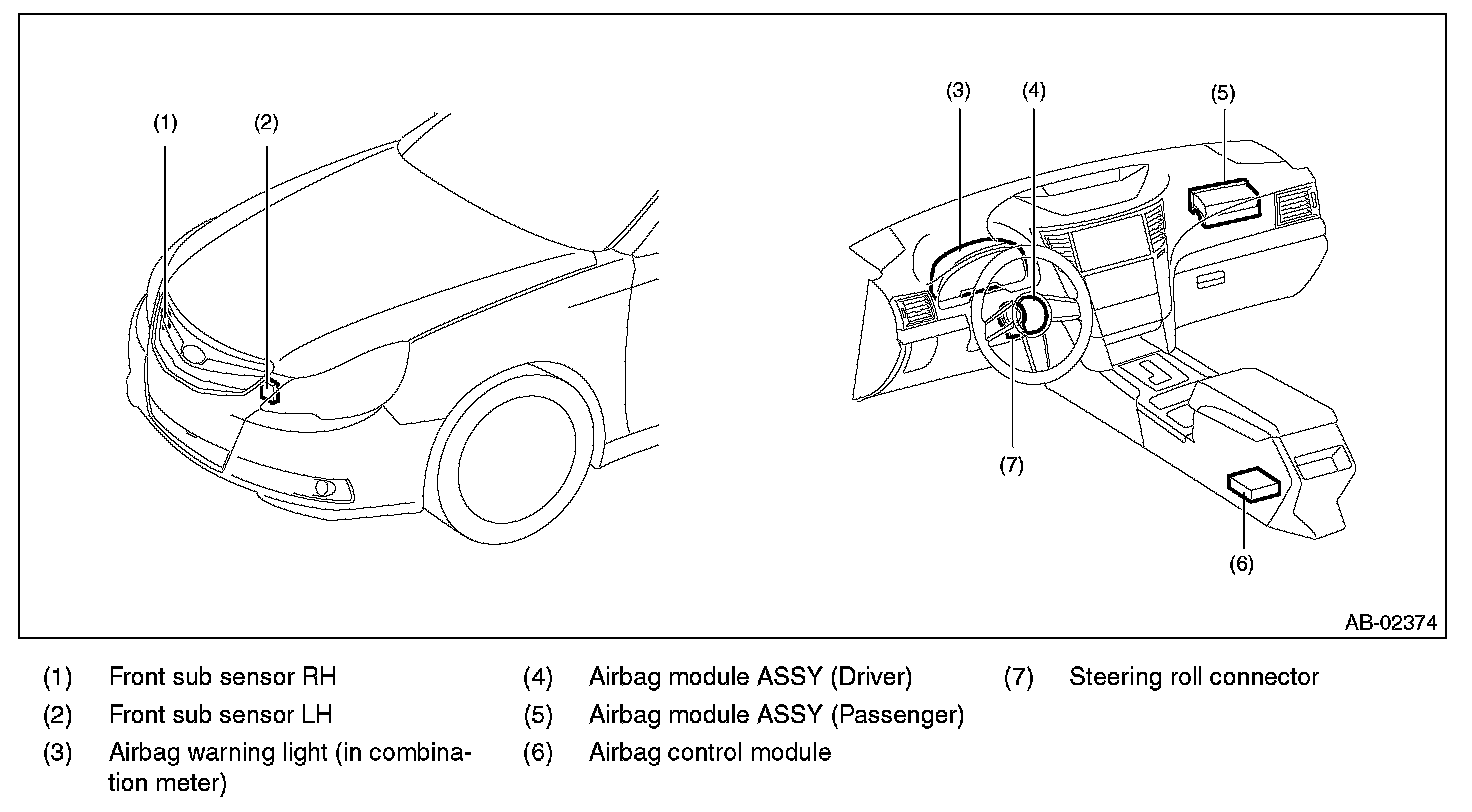

General Description
General DescriptionCOMPONENT

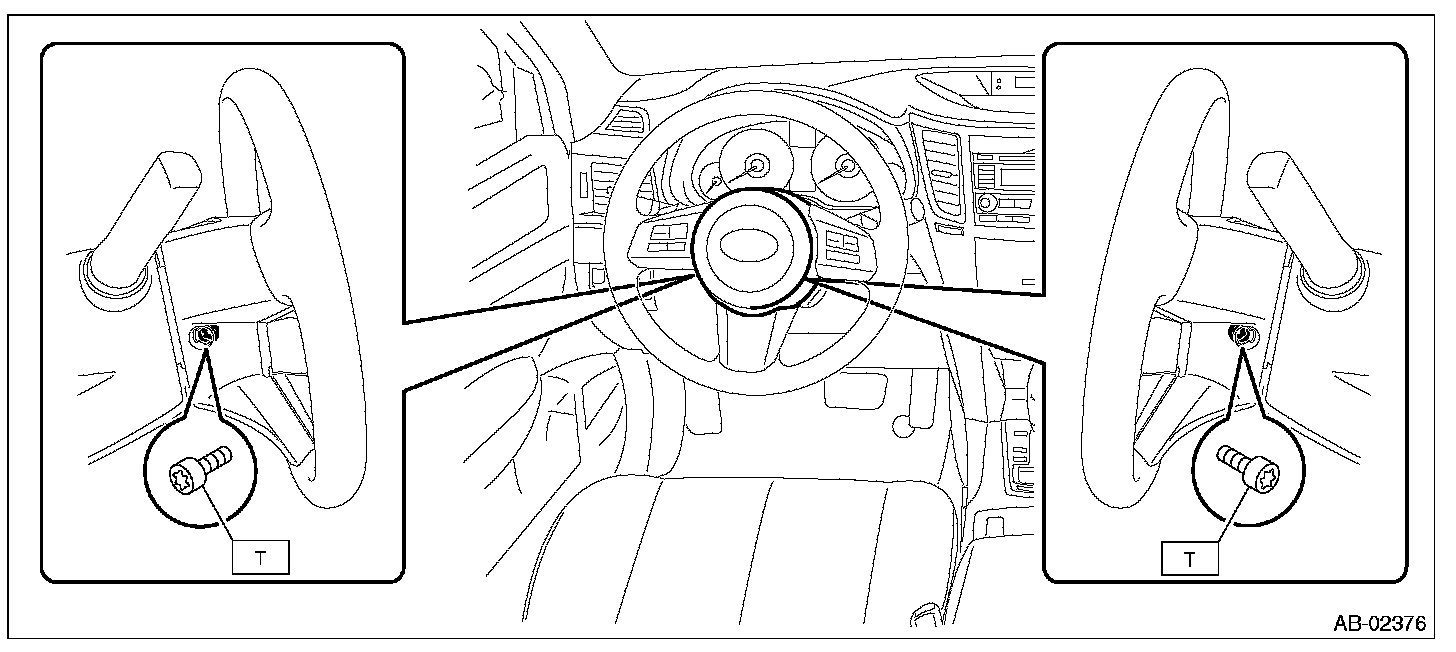

1. DRIVER'S AIRBAG MODULE
Tightening torque: 10 N.m (1.0 kgf.m, 7.4 ft.lb)

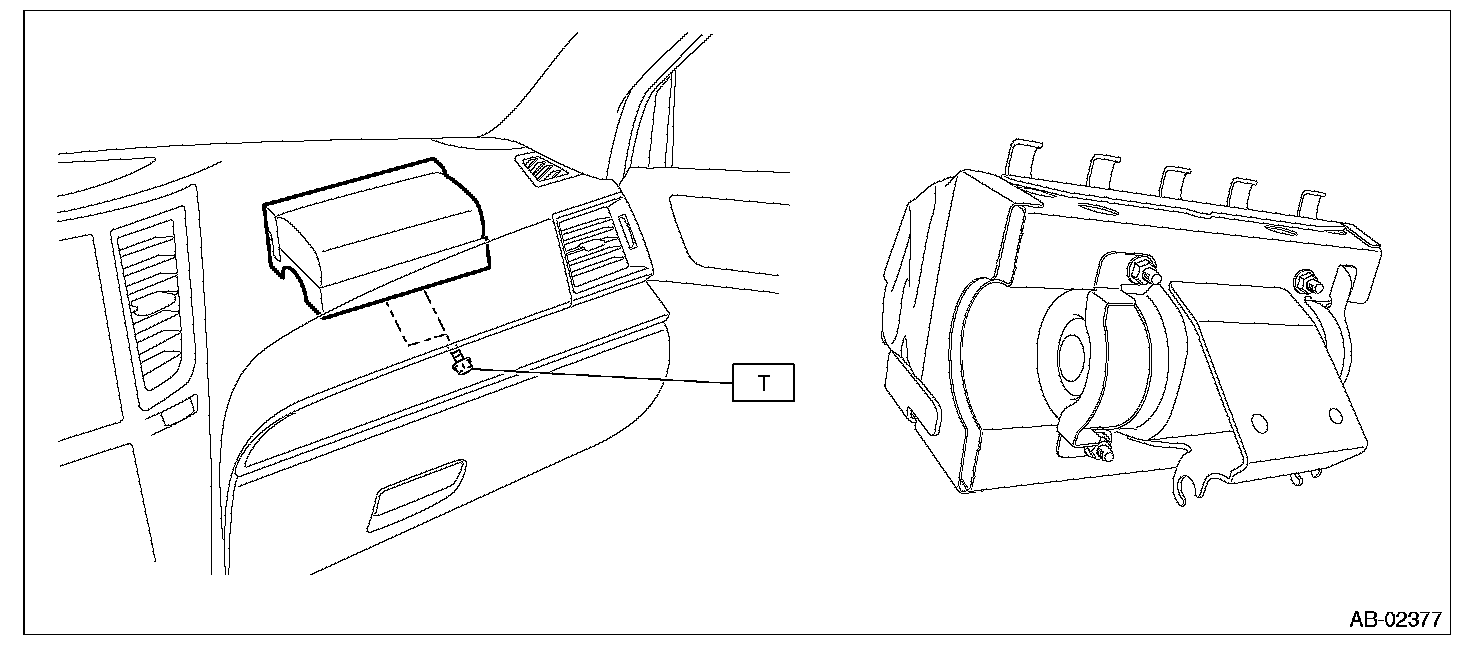

2. PASSENGER'S AIRBAG MODULE
Tightening torque: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)

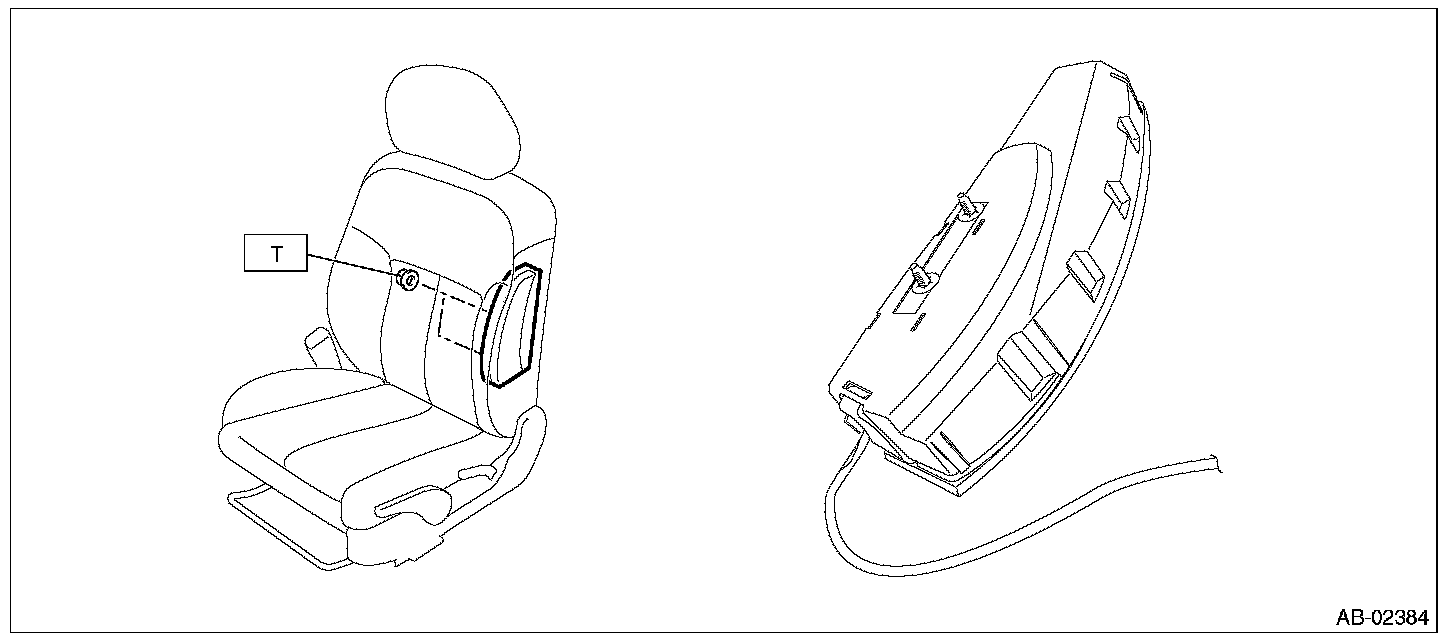

3. SIDE AIRBAG MODULE
Tightening torque: 6 N.m (0.61 kgf.m, 4.4 ft.lb)

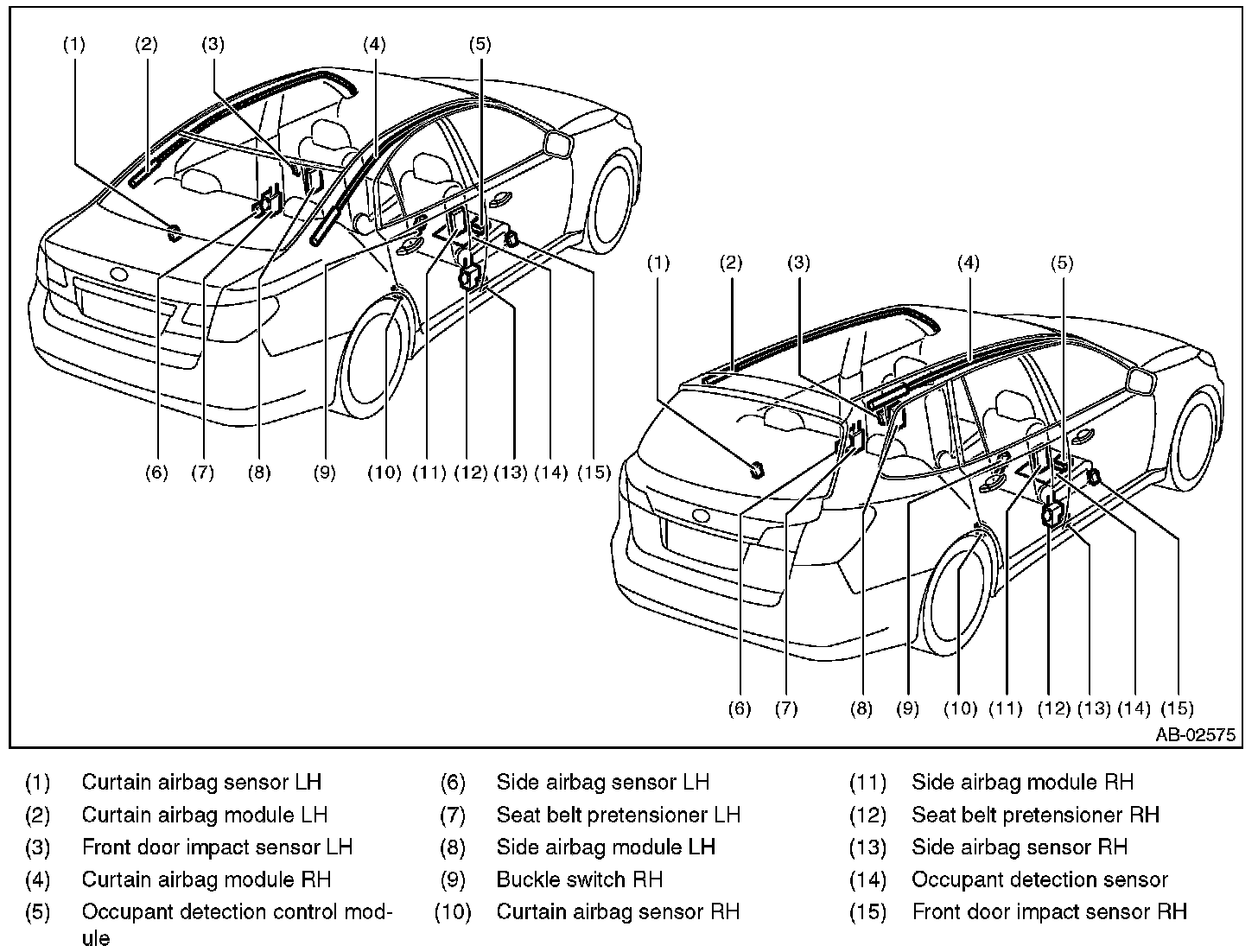

4. CURTAIN AIRBAG MODULE
- Sedan model
- OUTBACK model
Tightening torque: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)

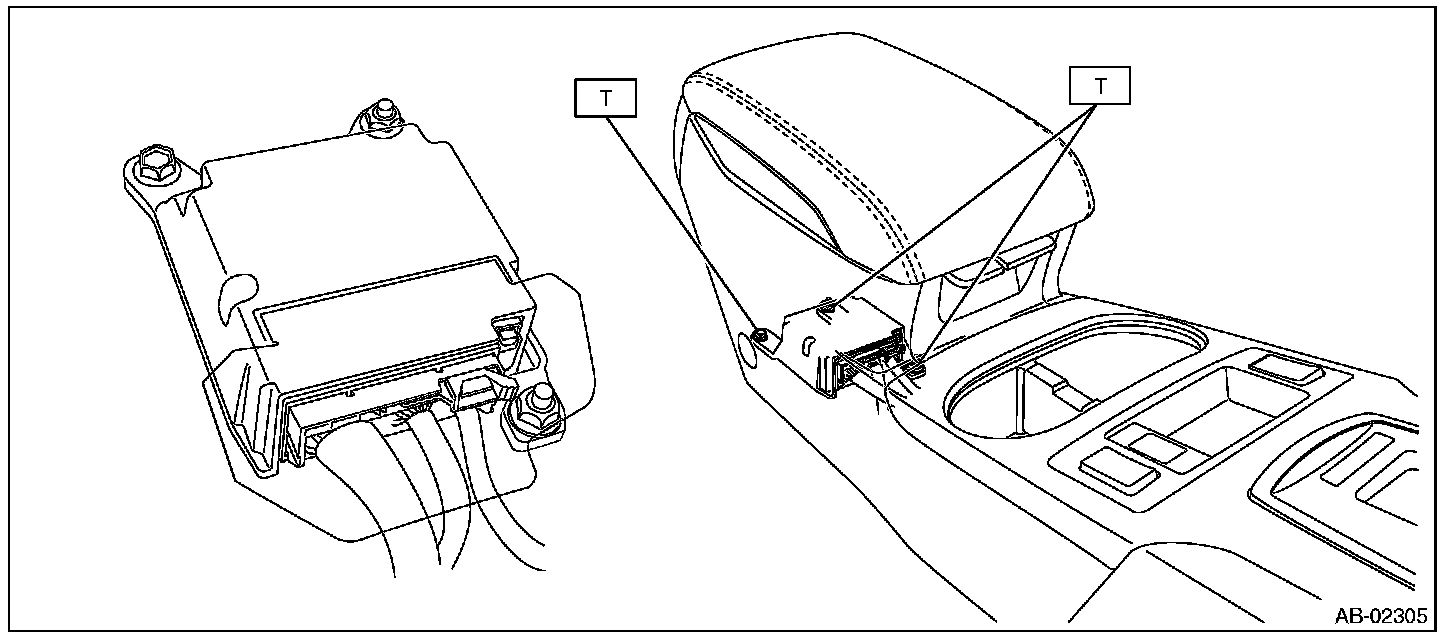

5. AIRBAG CONTROL MODULE
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 25 N.m (2.55 kgf.m, 18.4 ft.lb)
