Rear Door Window Regulator: Service and Repair

Rear Regulator and Motor Assembly

REMOVAL

1. Remove the rear door glass.

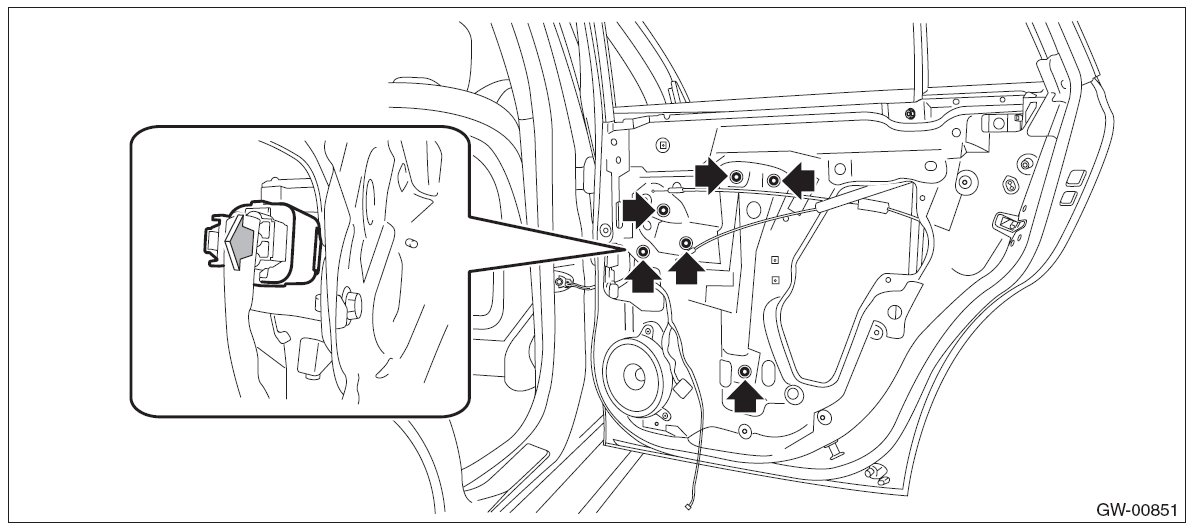

2. Remove the rear regulator and motor assembly.
1. Disconnect the connector.
2. Remove the bolts, and then remove the rear regulator and motor assembly.







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to REAR DOOR GLASS, COMPONENT, General Description.]
